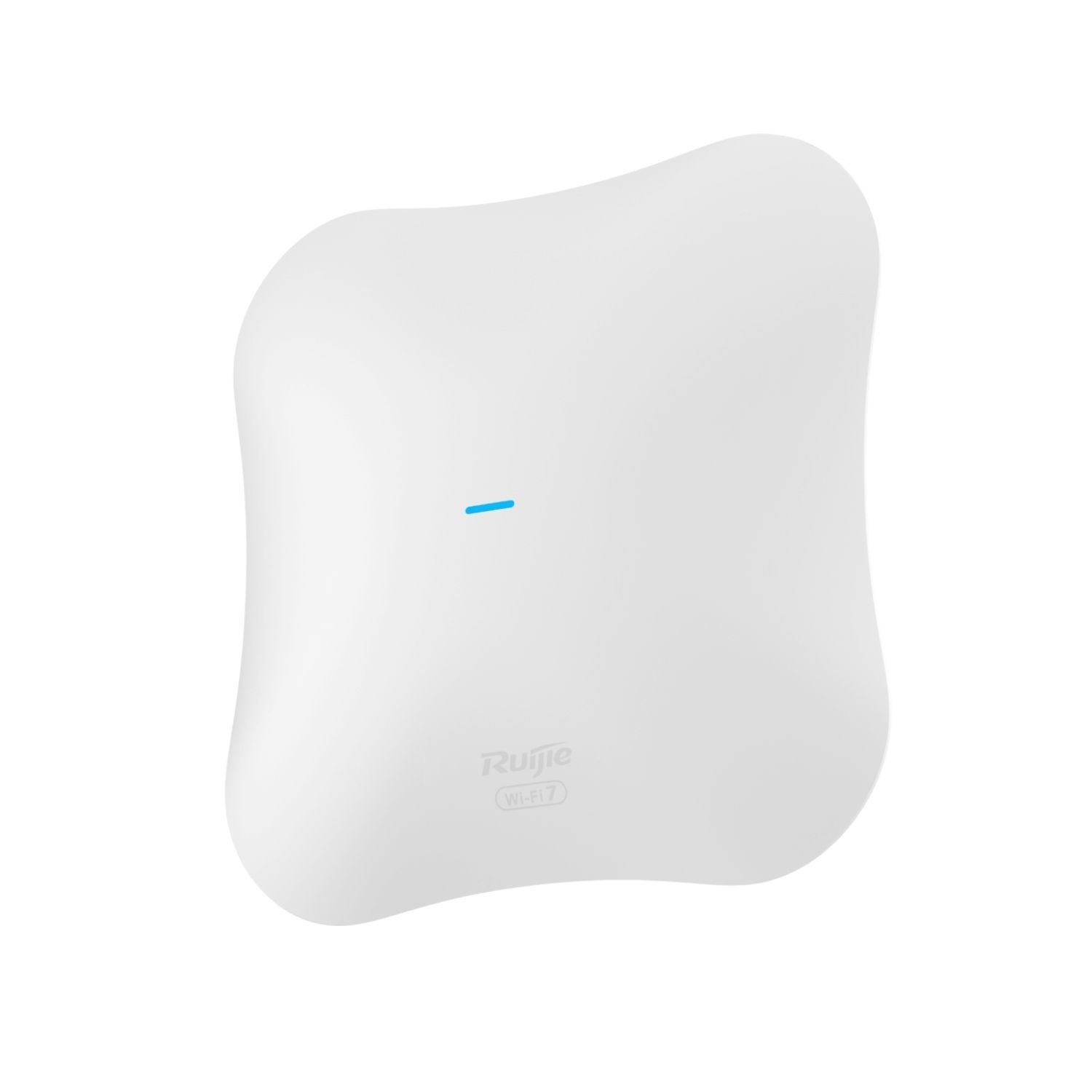

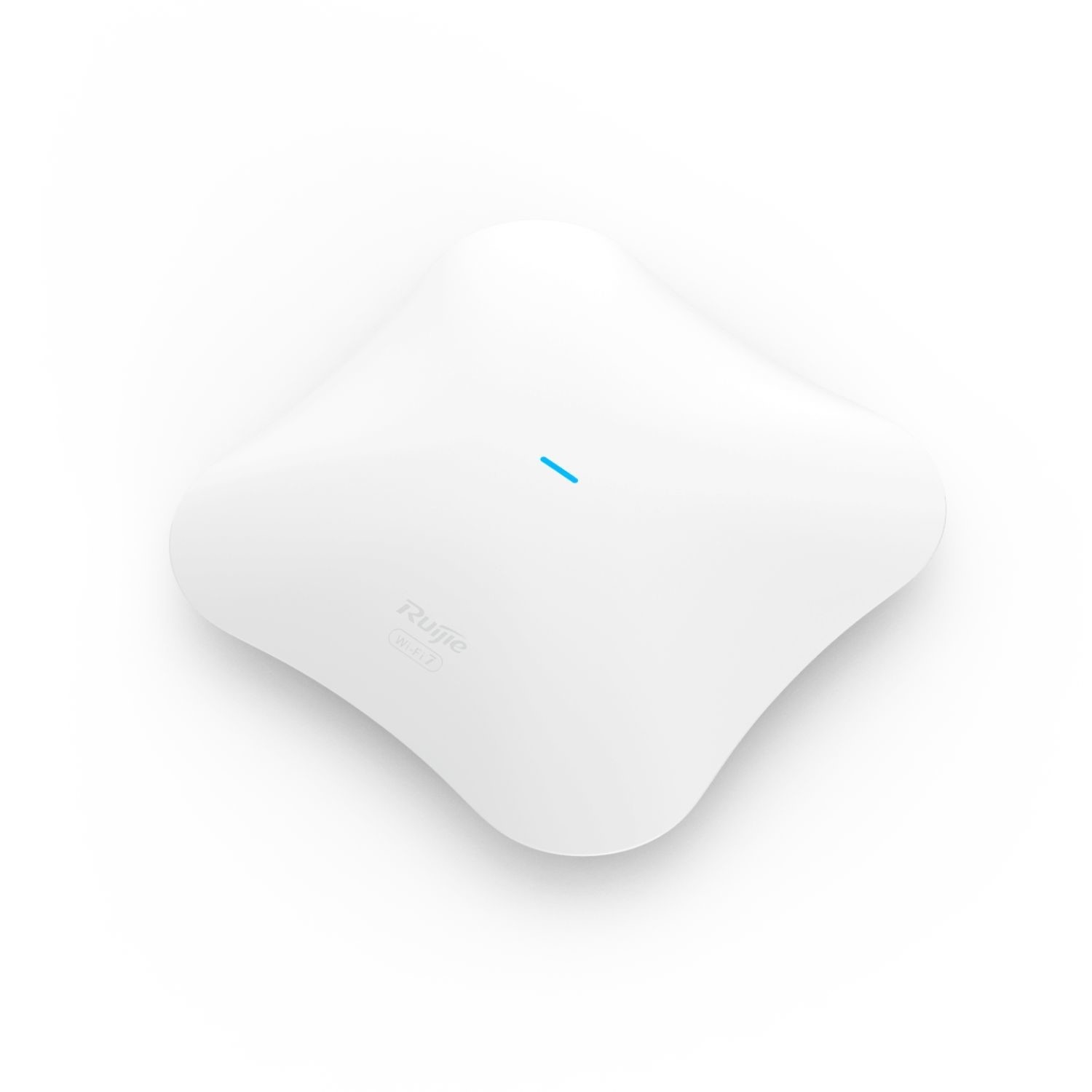

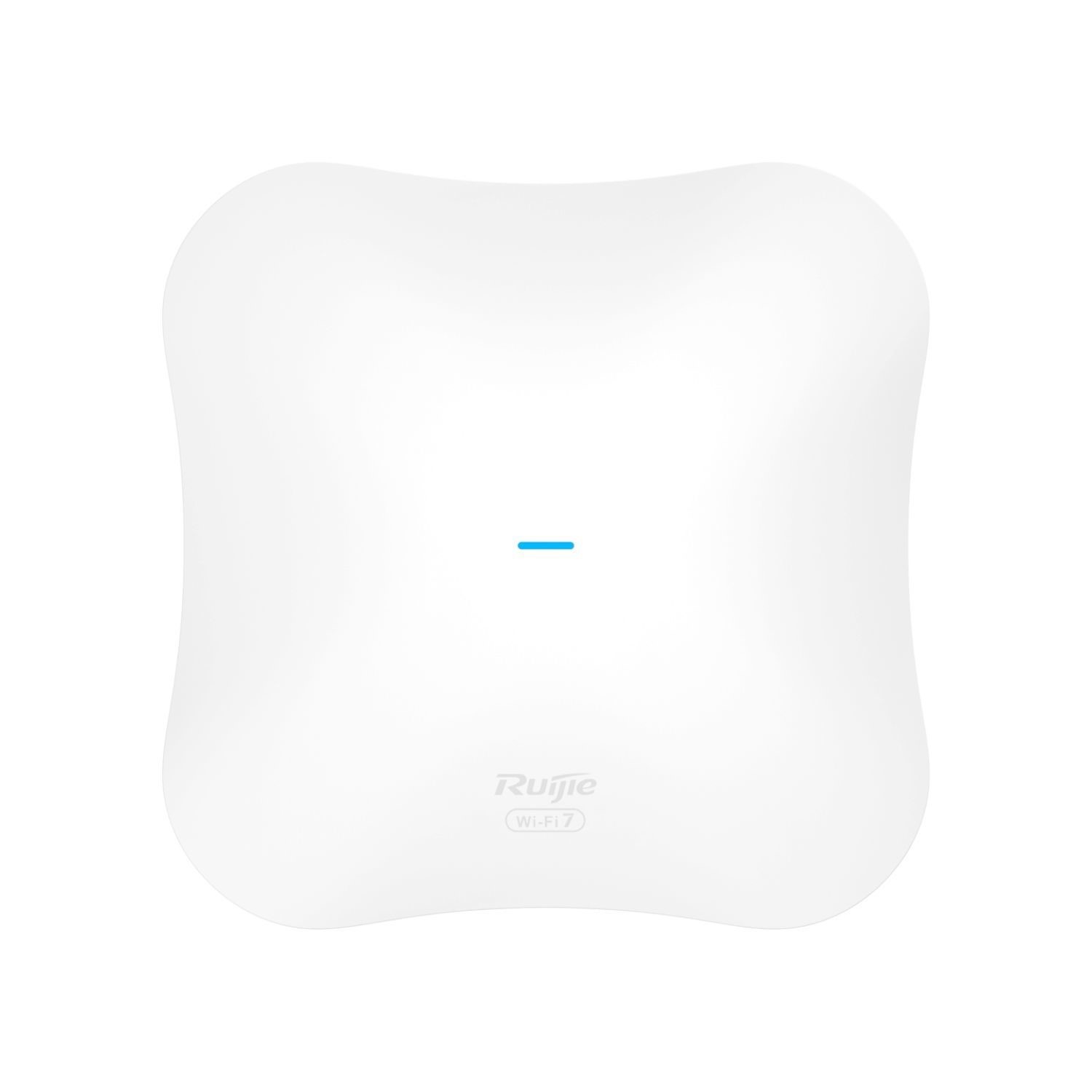

Ruijie Reyee RG-RAP73Pro Tri-Band Wi-Fi 7 Wireless Access Point

The Ruijie Reyee RG-RAP73Pro Tri-Band WiFi 7 Pre-Configured Access Point is designed for general education, higher education, government, finance, business, and other indoor high-density scenarios. Supporting 2.4 GHz, 5 GHz and 6 GHz frequency bands, it delivers a data rate of up to 13,346 Mbps. The RG-RAP73Pro incorporates essential features like wireless network security, radio control, mobile access, QoS, and seamless roaming scalability. Paired with Ruijie Cloud, the RG-RAP73Pro can realise wireless client access control, O&M, and secure access control. It can work in IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, and IEEE 802.11n modes simultaneously. It supports both local power supply and Power over Ethernet (PoE), providing flexible installation options based on the actual environment.

Pre-Configured for Maximum Efficiency
Our provisioning service further simplifies the inherently straightforward setup of Ruijie networking devices, ensuring they are ready for immediate use with minimal effort. Although Ruijie products are already designed for easy installation, our service enhances this by taking care of firmware upgrades, configuring key WAN, LAN, or WLAN settings, and implementing robust security measures to optimise your network's performance and security.

Designed for maximum efficiency, our pre-configured approach ensures that devices are ready to seamlessly integrate into your Ruijie cloud account upon delivery, enabling you to offer a quicker, more effective service to your clients. This service not only aligns with the user-friendly design of Ruijie devices but also adds significant value by reducing the time and effort required for on-site installation, freeing you to concentrate on your core business activities.

Next-generation performance with WiFi 7
As a WiFi 7 device, the RG-RAP73Pro features advanced technologies such as a wider channel width (320 MHz), higher-order modulation (4K-QAM), more flexible spectrum utilisation (Multi-RU), enhanced stability (MLO) and multi-AP collaboration, which enable the RG-RAP73Pro to provide data rates of up to 13,346 Mbps with reduced latency.

Ideal for high-density scenarios
With a maximum connection capacity of 600 users and a recommended concurrent internet access of up to 200 users, the RG-RAP73Pro is ideal for high-density environments such as conference halls and gymnasiums, providing improved signal coverage and robust network connection.

Superior streaming with WiFi 7's exclusive MLO feature
The RG-RAP73Pro adopts Multi-Link Operation (MLO) technology, which allows devices to simultaneously send and receive data over multiple frequency bands to create a single aggregated connection. Devices can be automatically switched to other frequency bands in response to interference or heavy load, thus improving performance, reducing latency, and ensuring uninterrupted data flow.

Enhanced data transmission with 4K-QAM for faster speeds
WiFi 6 supports 1024-QAM, while WiFi 7 advances to 4096-QAM, which increases the amount of information carried per symbol from 10 bits to 12 bits. This enhancement theoretically boosts throughput and data density by 20%, and the peak rate for devices connecting to a WiFi 7 access point is also improved by 20% compared to WiFi 6 access points.

Equipped with an SFP+ port, unleashing the full potential of WiFi 7

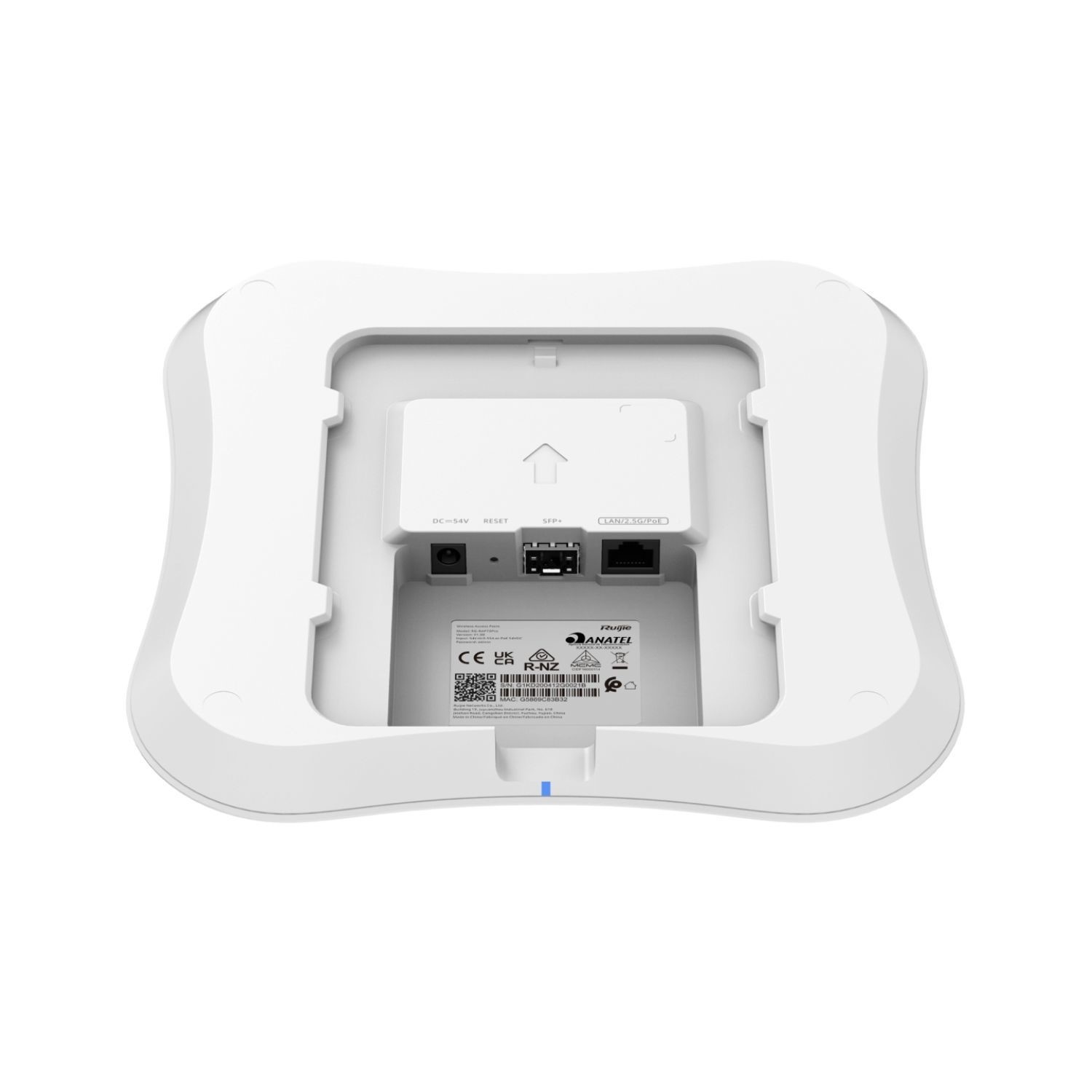

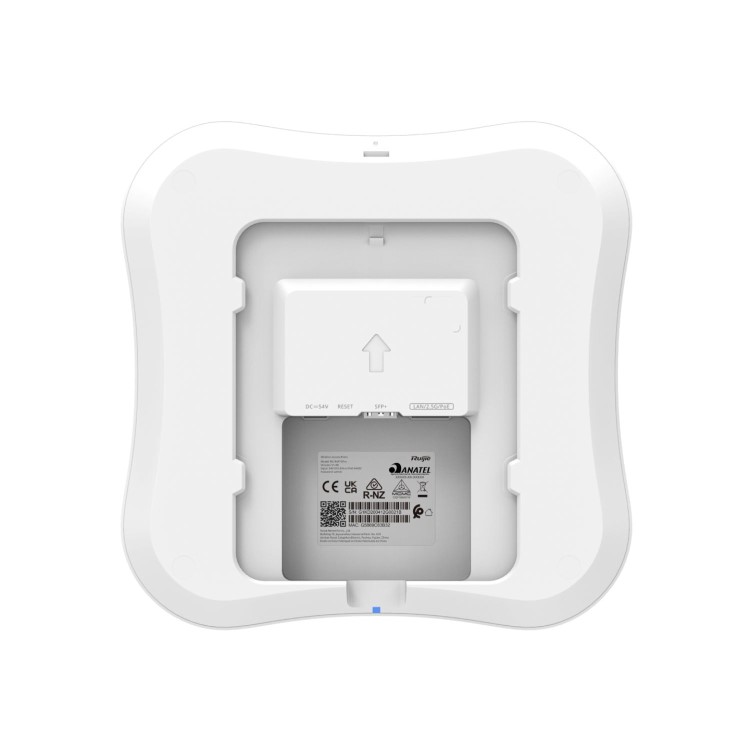

The RG-RAP73Pro is equipped with an SFP+ port that supports both optical fibre and cable. This allows for direct fibre optic connections to the access point, overcoming the difficulties of long-distance cabling to the server room. Additionally, it includes a 2.5G RJ45 port for easy integration with nearby devices, simplifying network expansion.

Ideal for integrating with multi-Gig switches to create a robust network
The RG-RAP73Pro features a 2.5G port that, when connected to a Multi-Gig switch, overcomes the Gigabit barrier and unleashes the full potential of WiFi 7.
