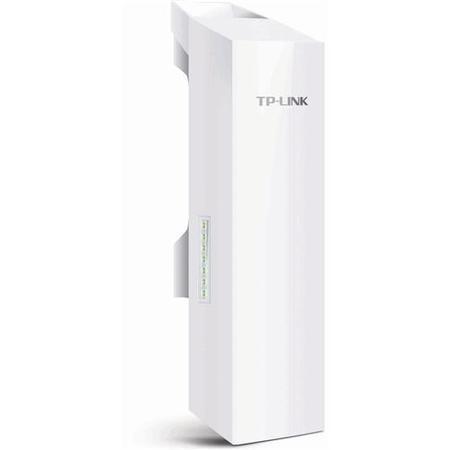

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE

SKU: CPE210 Quickfind Code: 907779
Was: £37.48     You save: £5
£32.48
inc. VAT :£38.97
Why buy me
  • Speed: 300Mbit/s
  • Data transfer rate: 300Mbit/s
  • Speed: IEEE 802.11n

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »

click

TP-LINK's 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed  enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating  temperatures ranging from -30¡æ (-22¨H) to +70 ¡æ (158¨H).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.

Professional Outdoor Design
CPE210 is designed to work in harsh environments, even in some of the world's most hostile climate conditions.

Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).

Double Protection against ESD AttacksBesides its grounding terminal, CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE210's additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.


Antenna
Antenna gain level (max) 9 dBi
Antenna type dual-polarized directional MIMO
Antennas quantity 1
Detachable antenna(s)
Integrated antenna
Design
Colour of product White
Internal
International Protection (IP) code IPX5
LED indicators
Performance
2.4 GHz
Frequency band 2.4 - 2.483 GHz
Internal memory 64 MB
Management platform Pharos
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Reset button
Wi-Fi data rate (max) 300 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Input current 0.8 A
Input frequency 50 - 60 Hz
Input voltage 100-240 V
Output current 1 A
Output Voltage 24 V
Power consumption (max) 10.5 W
Power over Ethernet (PoE) Support
Protocols
Management protocols TDMA
Security
MAC address filtering
Security algorithms 128-bit WEP,152-bit WEP,64-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -30 - 70 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Other features
Transmit power 0 - 27 dBmW
Packaging content
Cables included AC
Mounting Kit
System Requirements
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Weight & dimensions
Depth 79 mm
Height 60 mm
Width 224 mm
