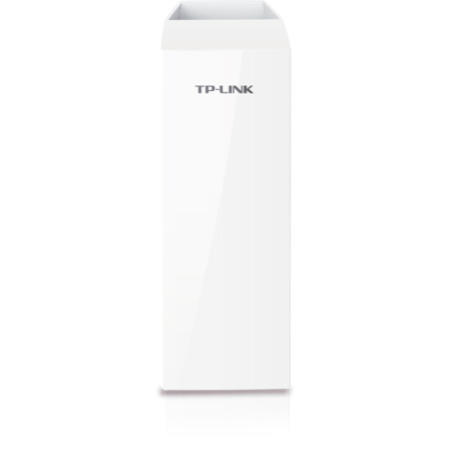

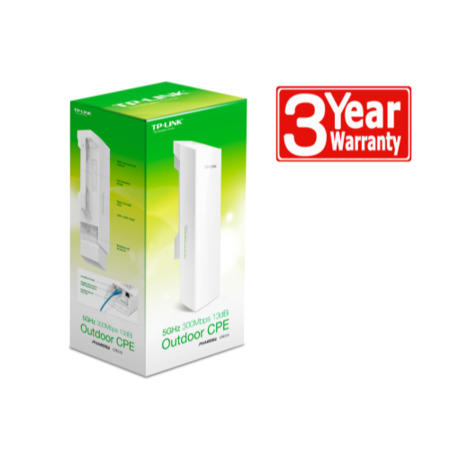

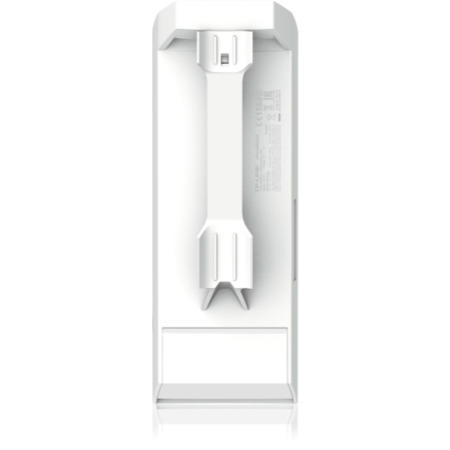

TP-LInk 5GHz 300Mbps 13dBi Outdoor CPE

SKU: CPE510 Quickfind Code: 891552
TP-LInk 5GHz 300Mbps 13dBi Outdoor CPE
TP-LInk 5GHz 300Mbps 13dBi Outdoor CPE
TP-LInk 5GHz 300Mbps 13dBi Outdoor CPE
You save: £0.84
£44.14
inc. VAT : £52.97

Why buy me

  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System Pharos Control
  • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
click

TP-LINK's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely


Antenna
Antenna gain level (max) 13 dBi
Antennas quantity 1
Detachable antenna(s)
Integrated antenna

Design
Colour of product White
Internal
LED indicators

Performance
Built-in processor Qualcomm Atheros Enterprise AR9350B
Ethernet LAN data rates 10,100 Mbit/s
Flash memory 8 MB
Frequency band 5.15 - 5.85 GHz
Management platform Pharos Control
Modulation -
Number of users - user(s)

Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Interface Ethernet
WAN connection Ethernet (RJ-45)

Power
Input current 0.8 A
Input frequency 50 - 60 Hz
Input voltage 100-240 V
Power consumption (typical) 13 W
Power over Ethernet (PoE) Support

Protocols
Management protocols TDMA

Security
MAC address filtering
Security algorithms 64-bit WEP,128-bit WEP,152-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK

Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -30 - 70 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C

Other features
Colour
Compatibility PC
Transmit power - dBmW
Wireless range 15000 m

Packaging content
Cables included AC

System Requirements
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Weight & dimensions
Depth 75 mm
Height 60 mm
Width 224 mm
