DrayTek VigorSwitch L2+ 2.5G Ethernet Network Managed Switch

SKU: VSPQ2200XB-K Quickfind Code: 1988557
£537.48
inc. VAT : £644.97
Why buy me
  • Model No.: PQ220xb
  • Switch type: Managed
  • POE Support: Yes

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »

click

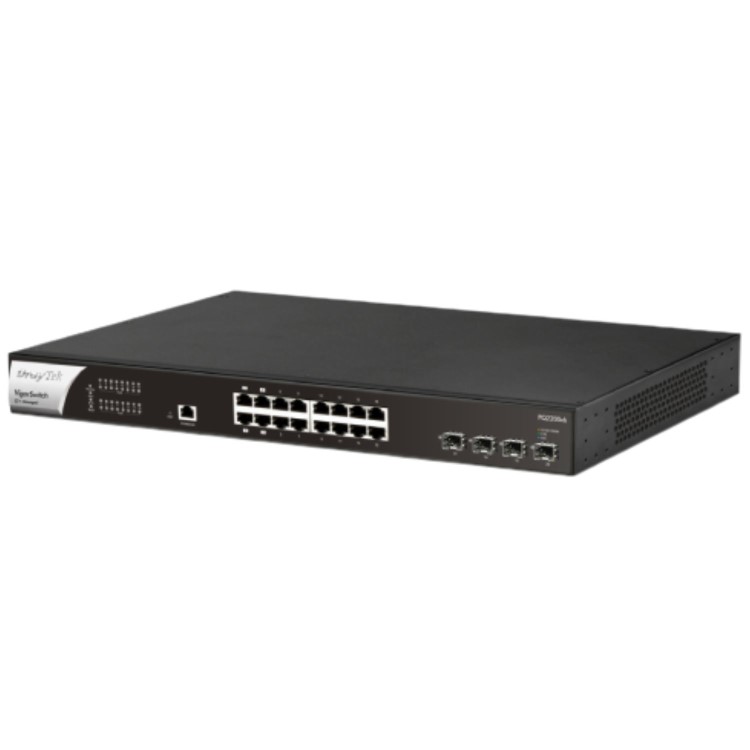

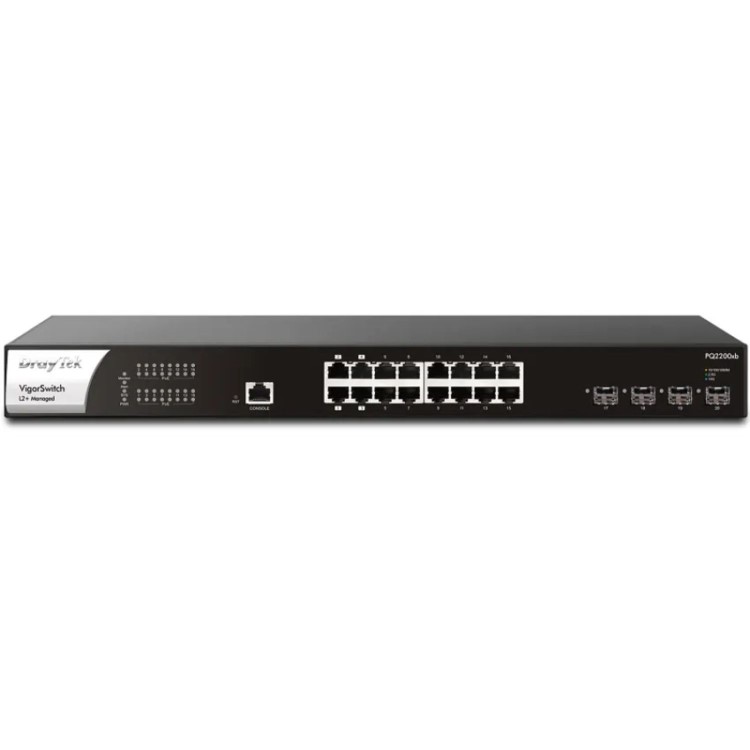

The DrayTek PQ2200xb VigorSwitch 16-Port L2+ Managed Rackmount 2.5-Gigabit PoE+ Switch has four (4) PoE++ 2.5GbE ports, twelve (12) PoE+ 2.5GbE ports (total of 400W output) and four (4) additional independent SFP+ 10Gbps interfaces. This switch is ideal for use with devices with throughput demands beyond 1Gbps such as PoE WiFi 6 access points, high bandwidth video or network attached storage. Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2200xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

2.5 Gigabit Ethernet Ports
Increased the speed of your LANs while using existing CAT5e or better cable infrastructure.

Layer 2+ VLAN Routing
Use the VigorSwitch to link multiple subnets with Static Routes, VLAN Routing and integrated DHCP server.

Auto Surveillance VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Access Control
The VigorSwitch PQ2200xb supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.

Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

10GbE SFP+ Ports
Four (4) SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritising the traffic with CoS, DSCP, and IP Precedence tag.

IPv6 Ready
The VigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

ONVIF IP Camera Management
Manage and view ONVIF capable cameras, automatically detecting their topology on the network.

Rack Mountable
Comes with rack mountable brackets to make your deployment even easier.

Central Switch Management
Set up VLAN easily from the router and get a centralised hierarchy view of the switches.


General
Form Factor Rack-mountable
Brand Draytek
Manageable
Port Quantity 16
