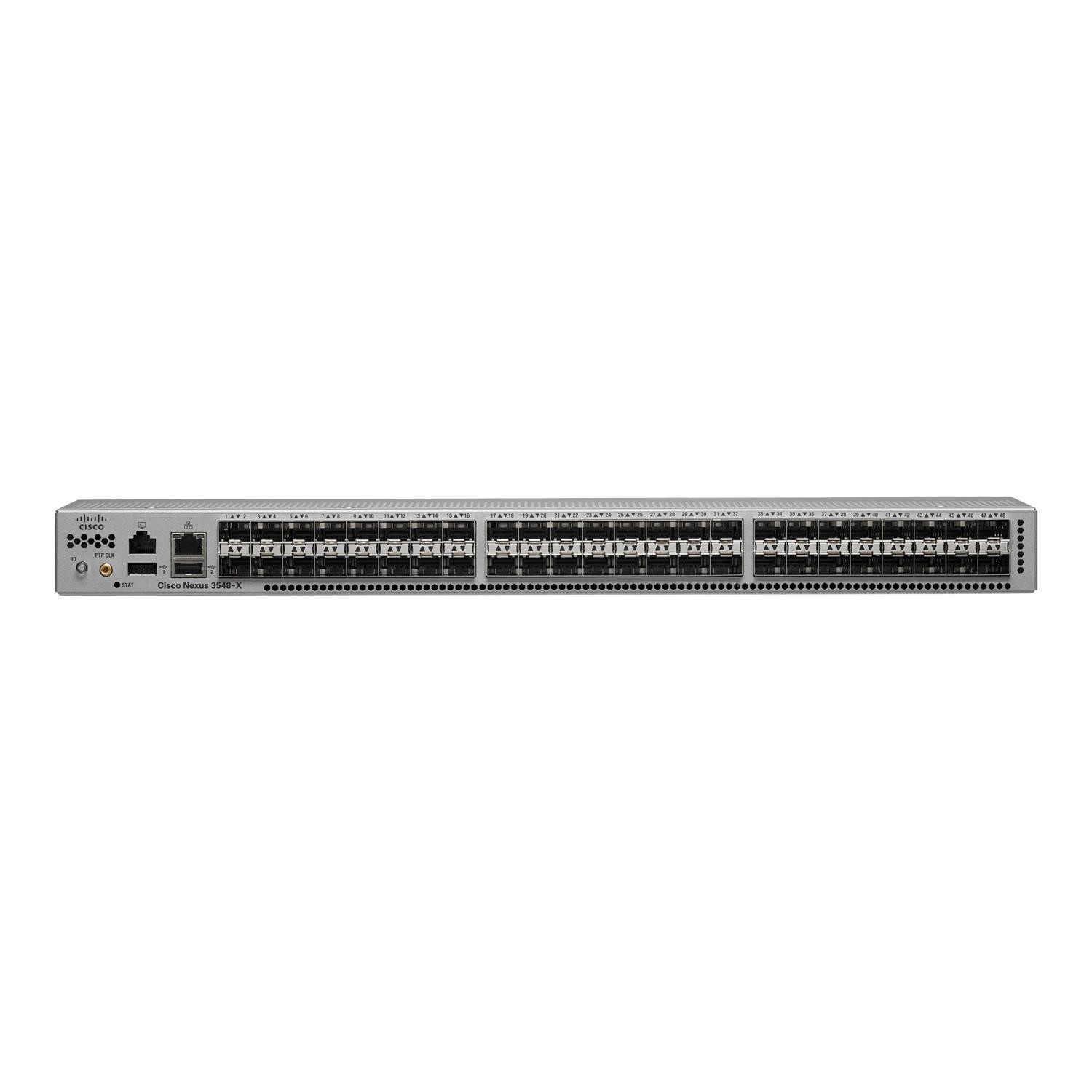

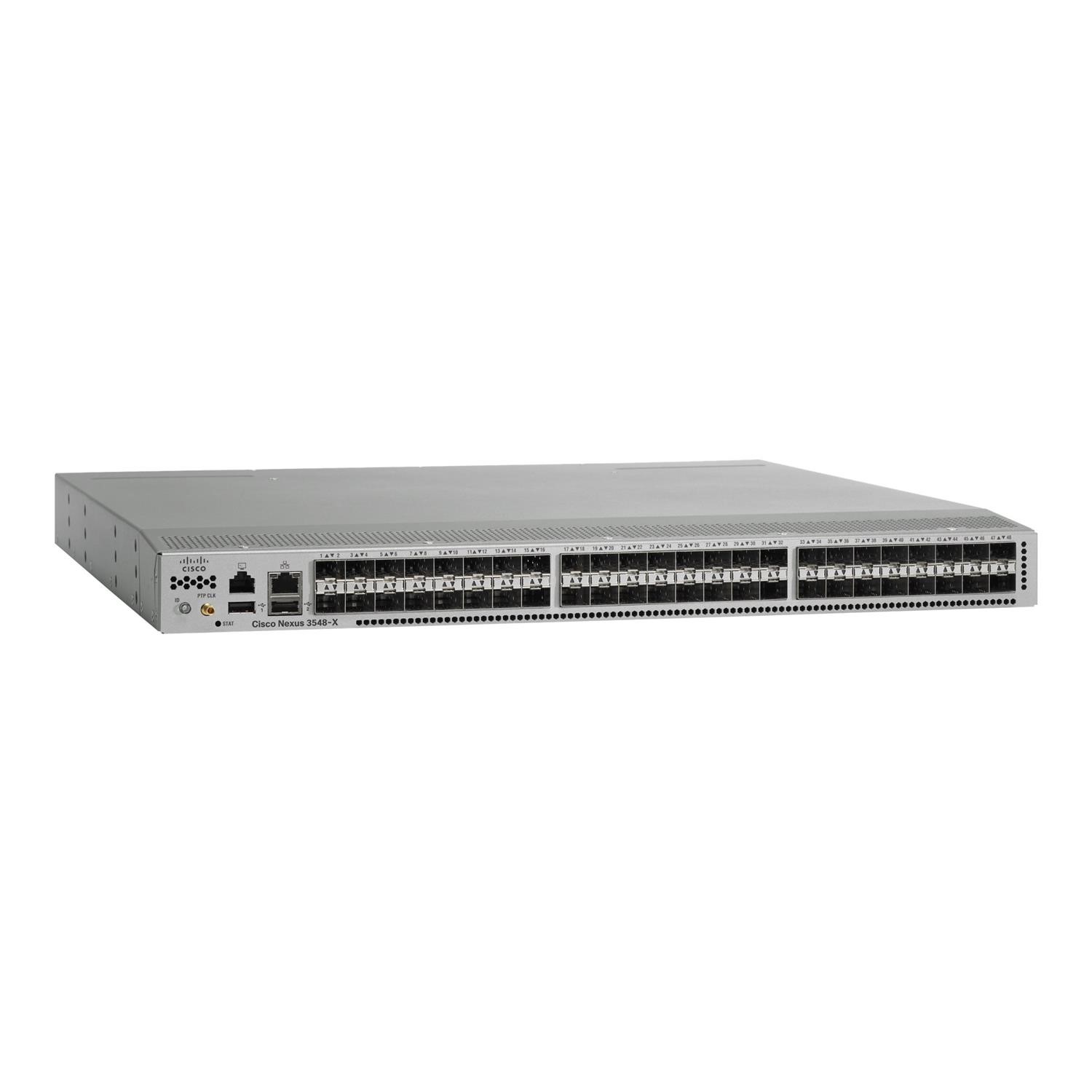

NEXUS 3548-XL 48 SFP+ PORTS

The Cisco Nexus 3548 switch is a compact one-rack-unit form-factor 10 Gigabit Ethernet switch providing line-rate layer 2 and 3 switching at ultra low latency. The switch runs the industry-leading Cisco NX-OS software operating system, providing customers with comprehensive features and functions that are widely deployed globally. The Cisco Nexus 3548 contains no physical layer chips, allowing low latency and low power consumption.

48 Fixed Enhanced Small Form-Factor Pluggable (SFP+) Ports
These ports provide high-speed connectivity options, supporting up to 10 Gbps each, ideal for data-intensive applications and network aggregation.

Dual Redundant, Hot-Swappable Power Supplies
Ensuring continuous operation, this feature allows power supplies to be replaced without shutting down the system, enhancing reliability and uptime.

Four Individual, Redundant, Hot-Swappable Fans
The switch is equipped with four cooling fans that can be replaced independently while the system is running, maintaining optimal temperature and system performance.

One 1-PPS Timing Port
This port provides precise one-pulse-per-second timing for synchronization purposes, essential for time-sensitive network operations.

Two 10/100/1000 Management Ports
These Ethernet ports enable network management access, offering flexible options for configuring and monitoring the switch.

One RS-232 Serial Console Port
This port allows direct console access for out-of-band management, crucial for troubleshooting and initial configurations.

One USB Port
The USB port facilitates easy firmware updates, configuration file transfers, and device management through external storage devices.

Locator LED
The Locator LED helps identify the specific switch within a rack or data center, simplifying physical management and maintenance.

Locator LED Button
Activating the Locator LED button illuminates the locator LED, making it easier to locate and identify the switch in dense installations.
