  • TP-Link 5 Port 10/100M Mini Desktop Switch TL-SF1005D

    Quickfind code: 556593
    £8.31 inc. VAT :£9.97

    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    click to close
    Why buy me
    • Up to 200Mbps full duplex bandwidth for high-speed data processing
    • Innovative energy-e¤cient technology saves up to 60% of power consumption
    • Plug and play design simpli¤es installation
    • Auto MDI/MDIX eliminates the need for crossover cables
    • IEEE 802.3x ¤ow control provides reliable data transfer
    • Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • Protocol: CSMA/CD
    More Info » Tech Spec »

    Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0844 412 4570 or...

    Request a callback »

    click
    Valid promotions & discounts

    Price match: We constantly check our prices to give you the best deal possible. Call us if you see it cheaper elsewhere.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

    click

    Popular Bundles

    Product Information

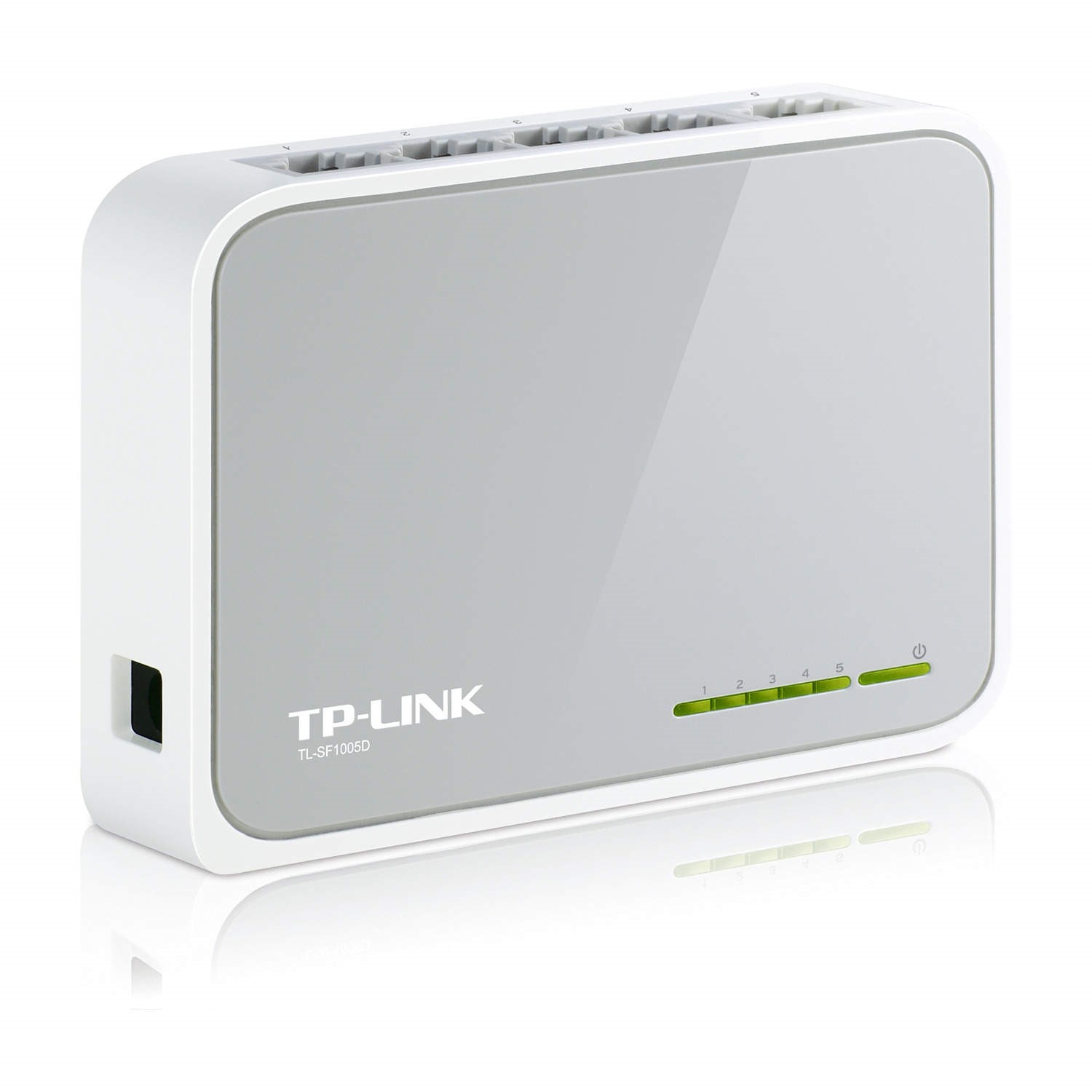

    TP-Link 5-Port 10/100Mbps Desktop Switch

    The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support Auto MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

    Features and Specifications of the TP-Link 5-Port 10/100Mbps Desktop Switch

    • Up to 200Mbps full duplex bandwidth for high-speed data processing
    • Innovative energy-e¤cient technology saves up to 60% of power consumption
    • Plug and play design simpli¤es installation
    • Auto MDI/MDIX eliminates the need for crossover cables
    • IEEE 802.3x ¤ow control provides reliable data transfer
    • Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • Protocol: CSMA/CD
    • Interface:
      5 10/100Mbps Port, Auto-negotiation, Auto MDI/MDIX
      Half and Full Duplex
    • Switching Features:
      MAC Address Learning
      10Gbps Backplane Bandwidth
    • Forwarding Rates
      10BASE-T: 14880pps/port
      10BASE-TX: 148800pps/port
    • Data Rates:
      10/100Mbps at Half Duplex
      20/200Mbps at Full Duplex
    • LEDs: Power 1, 2, 3, 4, 5
    • Transfer Method: Store and Forward
    • Power Supply: External Power Adapter
    • Certi¤cations: CE, FCC
    • Environment:
      Operating Temperature: 0°C~40°C (32°F~104°F)
      Storage Temperature: -40°C~70°C (-40°F~158°F)
      Operating Humidity: 10% ~ 90%, non-condensing
      Storage Humidity: 5%~90% non-condensing
    • Dimensions: 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)


    Tech Spec

    Data transmission
    MAC address table 1000 entries
    Maximum data transfer rate 0.1 Gbit/s
    Store-and-forward
    Supported data transfer rates 10/100 Mbps
    Switching capacity 1 Gbit/s
    Design
    Certification FCC, CE
    Colour of product White
    Rack mounting
    Management features
    Switch layer -
    Switch type Unmanaged
    Networking
    Flow control support
    Full duplex
    Networking standards IEEE 802.3u,IEEE 802.3x
    Performance
    Stackable
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 5
    Copper ethernet cabling technology 100BASE-TX,10BASE-T
    DC-in jack
    Power
    Power consumption (typical) 3 W
    Power Over Ethernet (PoE)
    Power over Ethernet (PoE) Support
    Protocols
    Supported network protocols CSMA/CD, TCP/IP
    Operational conditions
    Operating relative humidity (H-H) 10 - 90 %
    Operating temperature (T-T) 0 - 40 °C
    Storage relative humidity (H-H) 5 - 95 %
    Storage temperature (T-T) -40 - 70 °C
    Other features
    Connectivity LEDs
    Dimensions (WxDxH) 140 x 87 x 27.5 mm
