5-port 10/100 Metal Housing Desktop Switch

SKU: DES-105/B Quickfind Code: 662995
5-port 10/100 Metal Housing Desktop Switch
Product Information Sheet
£12.48
inc. VAT : £14.98

Why buy me

click

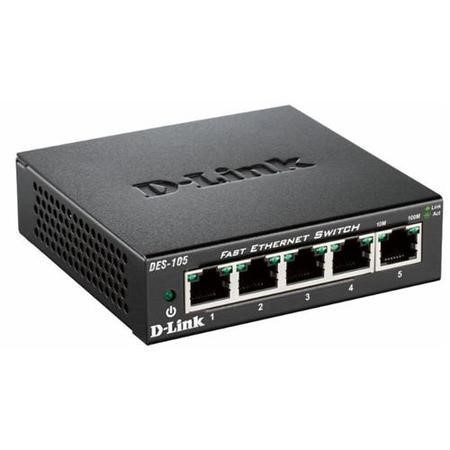

D-Link 5-port 10/100 Metal Housing Unmanaged Desktop Switch

Featuring easy access auto sensing 10/100 front ethernet ports with two color led indicators per port to quickly distinguish link; speed; and half/full duplex transmission status. the des-108 switch also supports auto mdi/mdix crossover allowing each port can be plugged directly to a server; hub; router; or switch using regular straight-through twisted-pair ethernet cables. support for ieee 802.1p qos is included; which organizes and prioritizes time-sensitive and important data for efficient delivery. DES-105/B



Data transmission
Jumbo Frames support
MAC address table 2000 entries
Maximum data transfer rate 0.1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100 Mbps
Switching capacity 1 Gbit/s

Design
Certification RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Colour of product Black
Housing material Metal
LED indicators Link,Power
Rack mounting

Management features
Quality of Service (QoS) support
Switch layer -
Switch type -

Networking
10G support
Auto MDI/MDI-X
Flow control support
Full duplex
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

Performance
Mean time between failures (MTBF) 495709 h
Packet buffer memory 0.384 MB
Stackable -

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Copper ethernet cabling technology 100BASE-TX,10BASE-T
DC-in jack

Power
Input current 1 A
Input voltage 5 V
Power consumption (typical) 1.9 W

Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support -

Security
MAC address filtering

Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -10 - 70 °C

Other features
Connectivity Technology Wired
Data transfer rate 200 Mbit/s
Dimensions (WxDxH) 100 x 98 x 28 mm

Weight & dimensions
Weight 265 g
Download User Manual
