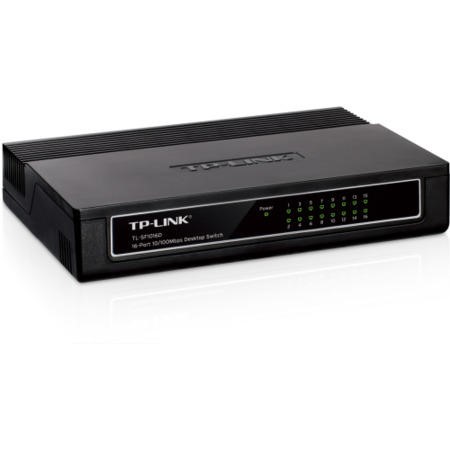

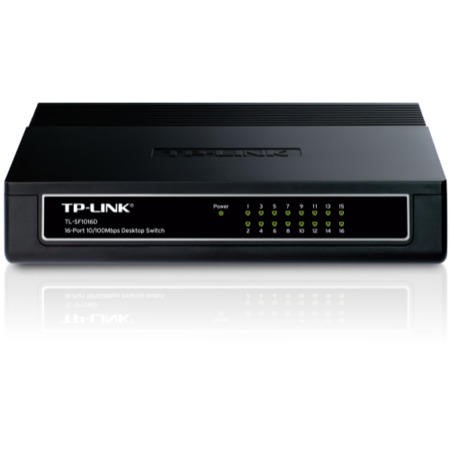

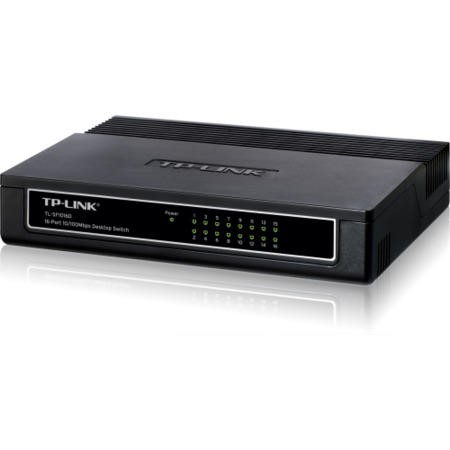

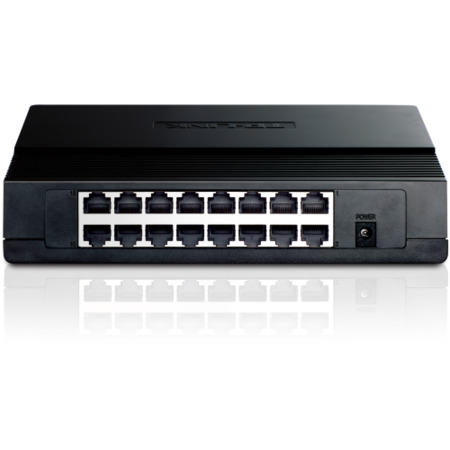

TP-Link TL-SF1016D 16-Port Unmanaged 10/100M Desktop Switch

SKU: TL-SF1016D Quickfind Code: 556596
SAVE 9%
You save: £2.50
£24.98
inc. VAT : £29.97

Why buy me

  • Innovative energy-efficient technology saves power up to 70%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2Gbps Switching Capacity
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
click

TP-Link TL-SF1016D 16-Port 10/100M Desktop Switch

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or work group users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 70% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features

  • Innovative energy-efficient technology saves power up to 70%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2Gbps Switching Capacity
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
  • Fan-less design ensures quiet operation
  • Desktop or wall-mounting design
  • Plug and Play design simplifies installation


Data transmission

MAC address table 8000 entries
Maximum data transfer rate 0.1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100 Mbps
Switching capacity 3.2 Gbit/s

Design

Certification FCC, CE, RoHS
Colour of product White

Management features

Switch type Unmanaged

Networking

Flow control support
Full duplex
Networking standards IEEE 802.3i,IEEE 802.3U,IEEE 802.3x

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16
Copper ethernet cabling technology 100BASE-TX,10BASE-T
DC-in jack

Power Over Ethernet (PoE)

Power over Ethernet (PoE) Support

Protocols

Supported network protocols CSMA/CD, TCP/IP

Operational conditions

Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C

Other features

Connectivity LEDs
Connectivity Technology Wired
Dimensions (WxDxH) 200 x 142 x 40 mm
