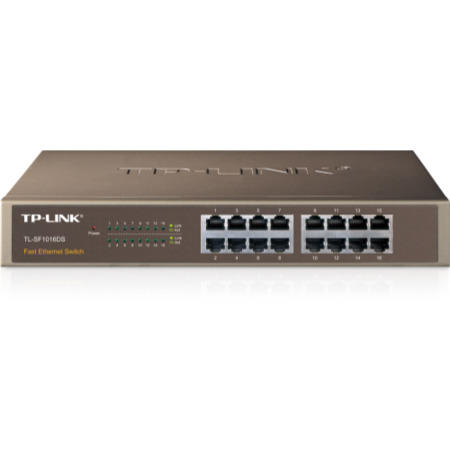

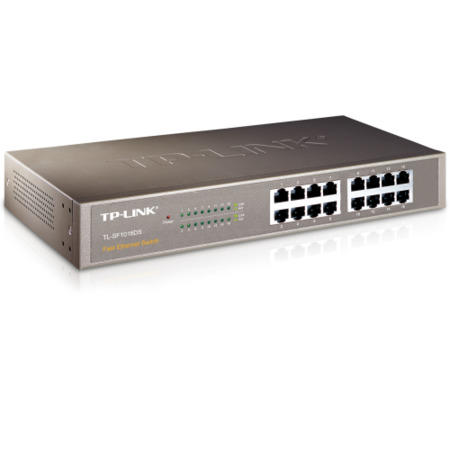

TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch

SKU: TL-SF1016DS Quickfind Code: 561966
SAVE 7%
You save: £2.00
£24.98
inc. VAT : £29.97

Why buy me

  • Innovative energy-efficient technology saves power up to 25%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
click

TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features

  • Innovative energy-efficient technology saves power up to 25%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
  • Plug and Play design simplifies installation
  • Fan-less design to make sure it works quietly without disturbing your family


Data transmission

MAC address table 8000 entries
Maximum data transfer rate 0.1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100 Mbps
Switching capacity 3.2 Gbit/s

Design

Certification FCC, CE
LED indicators Link,Power
Rack mounting

Management features

Switch layer -
Switch type 16-Port Fast Ethernet Desktop Switch

Networking

10G support -
Auto MDI/MDI-X
Flow control support
Full duplex
Networking standards IEEE 802.3,IEEE 802.3u,IEEE 802.3x

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16

Power

Power consumption (typical) - W

Power Over Ethernet (PoE)

Power over Ethernet (PoE) Support -

Protocols

Supported network protocols CSMA/CD, TCP/IP

Security

MAC address filtering

Operational conditions

Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Storage relative humidity (H-H) 5 - 90
Storage temperature (T-T) -40 - 70

Other features

Connectivity Technology Wired
Dimensions (WxDxH) 294 x 180 x 44
Power requirements 100 - 240VAC, 50/60Hz
