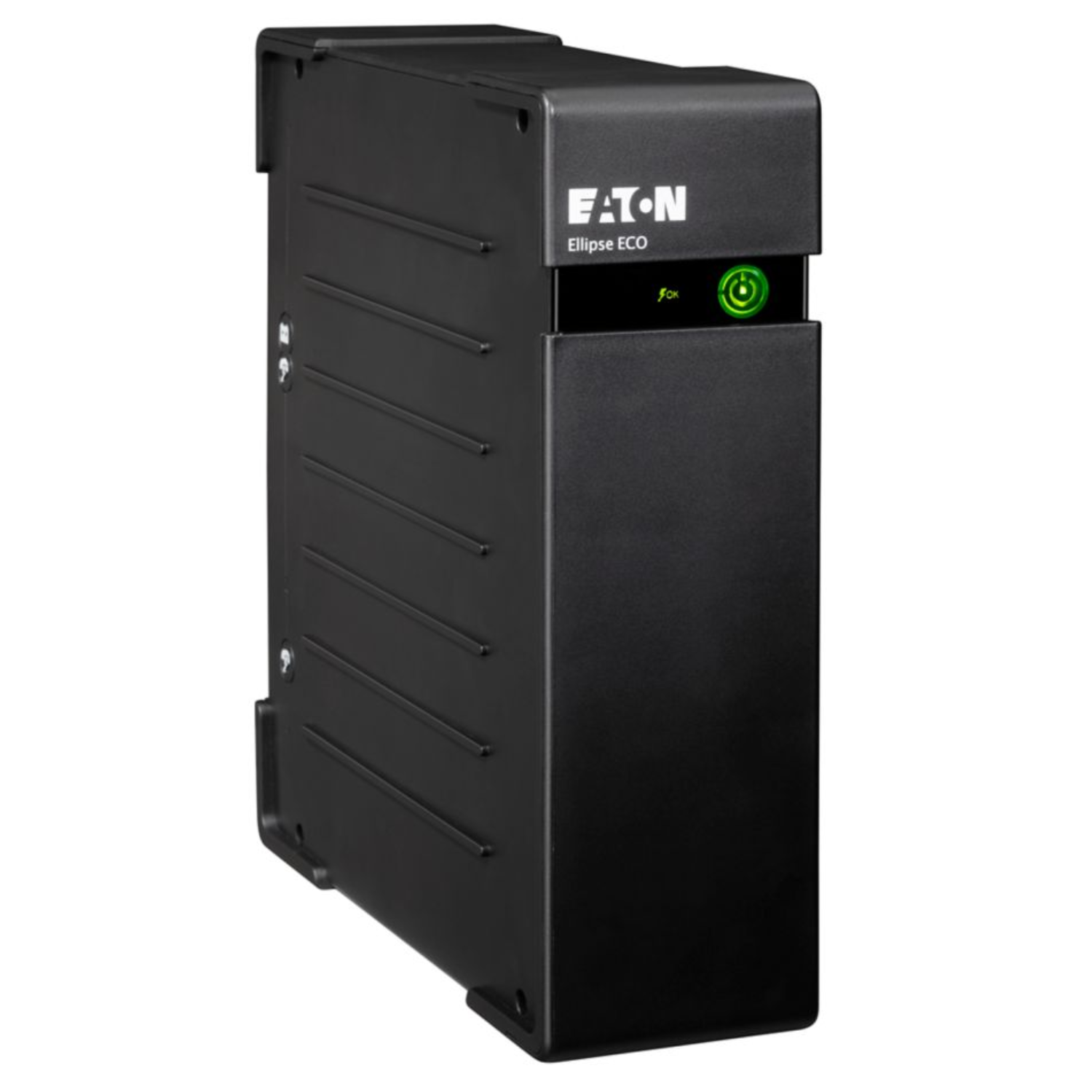

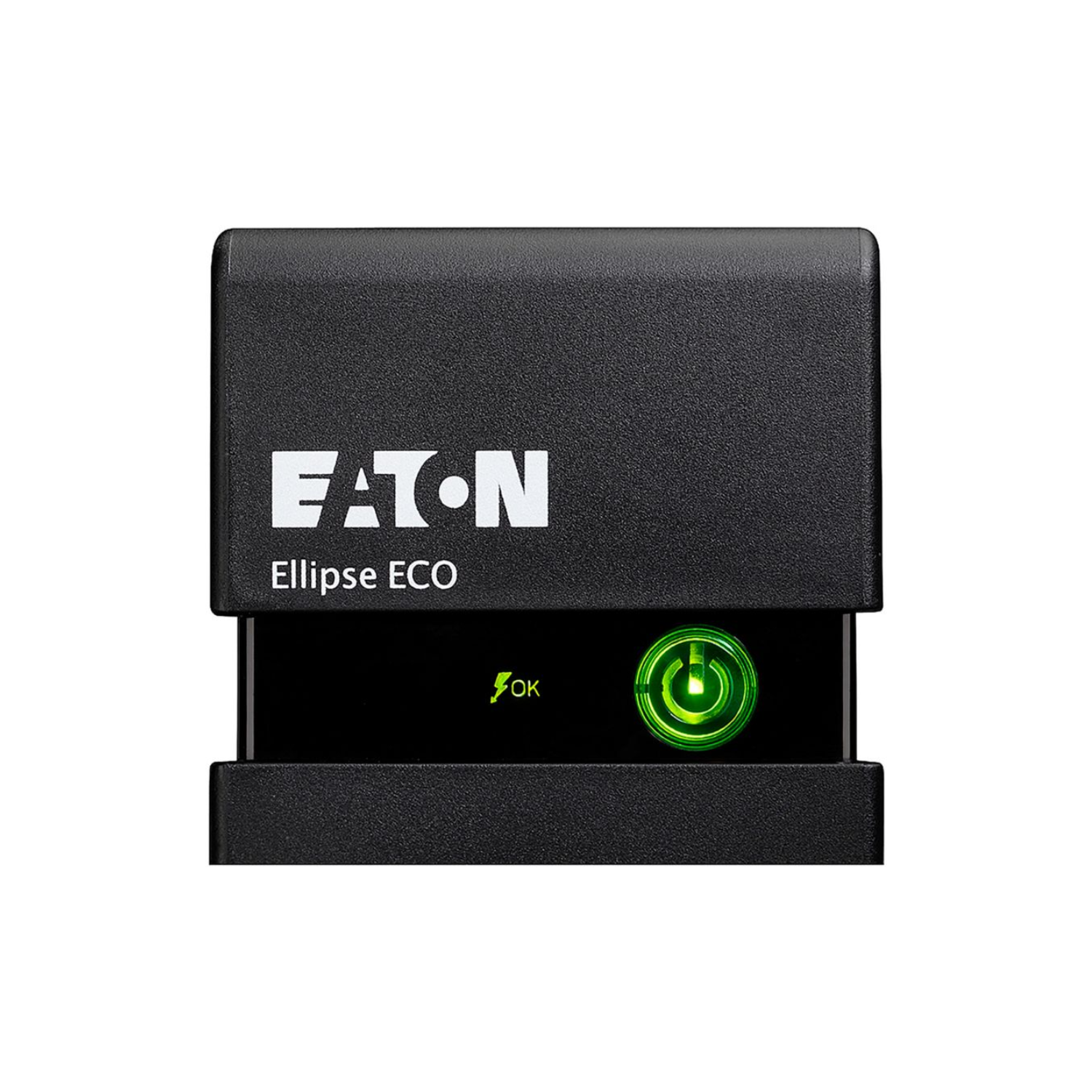

Eaton Ellipse ECO 650 IEC

SKU: EL650IEC Quickfind Code: 906059
£108.31
inc. VAT :£129.97
Why buy me
  • Battery: 9min
  • Product line: Eaton Ellipse ECO
  • 230V
  • Power Capacity 650VA

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »

click

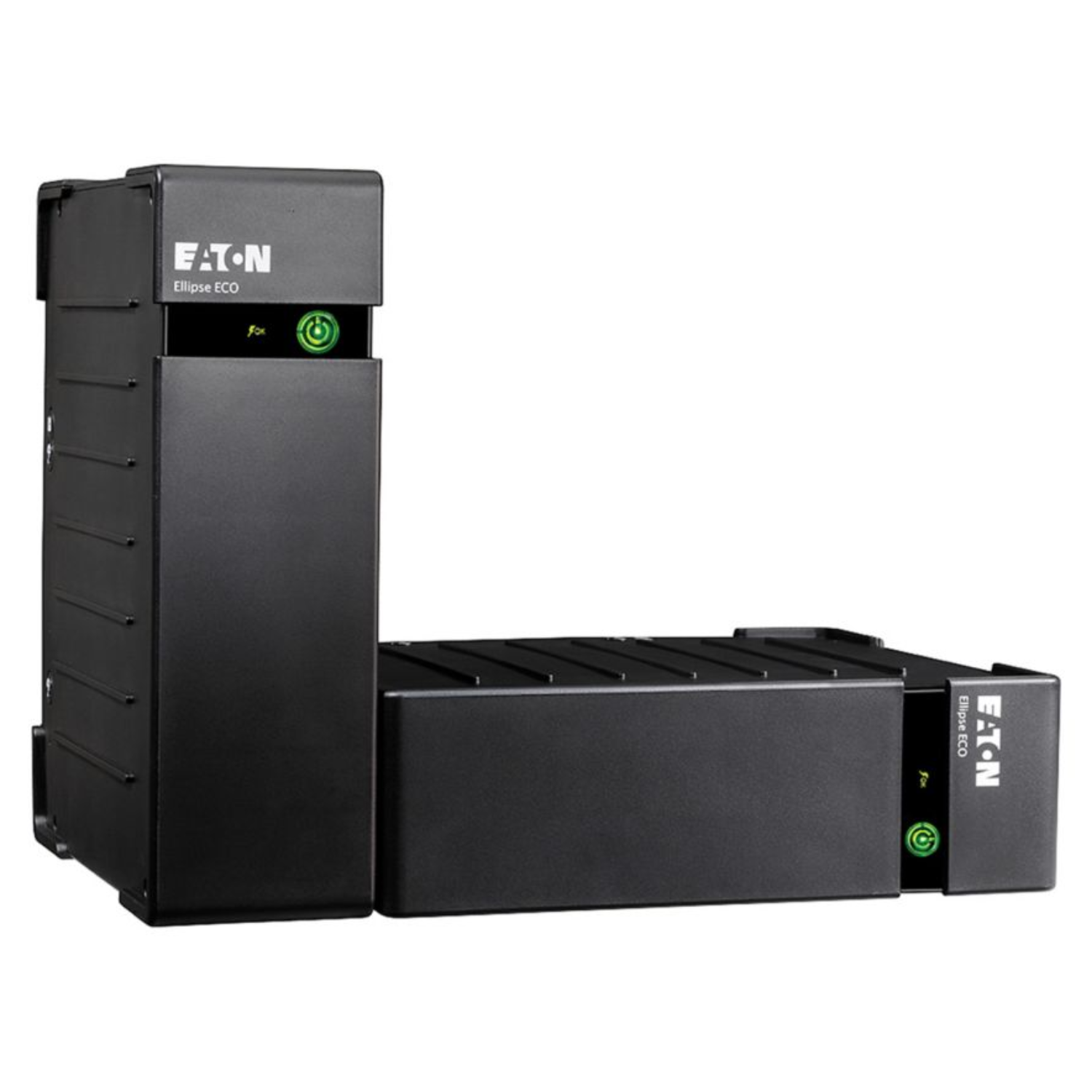

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device with energy efficient power protection for business computers Ellipse ASR UPSs are dual purpose rack mountable units which provide a battery backed up supply to keep equipment operating during power cuts and also provides effective protection against damaging surges.,Protection is also provided for telephone, broadband and Ethernet 10/100MB.The units can be used vertically, horizontally or in the optional 19inch rack mounting (2U kit).


Battery
Automatic battery test
Battery replacement alarms Audible,LED
Battery Technology Sealed Lead Acid (VRLA)
Cold start

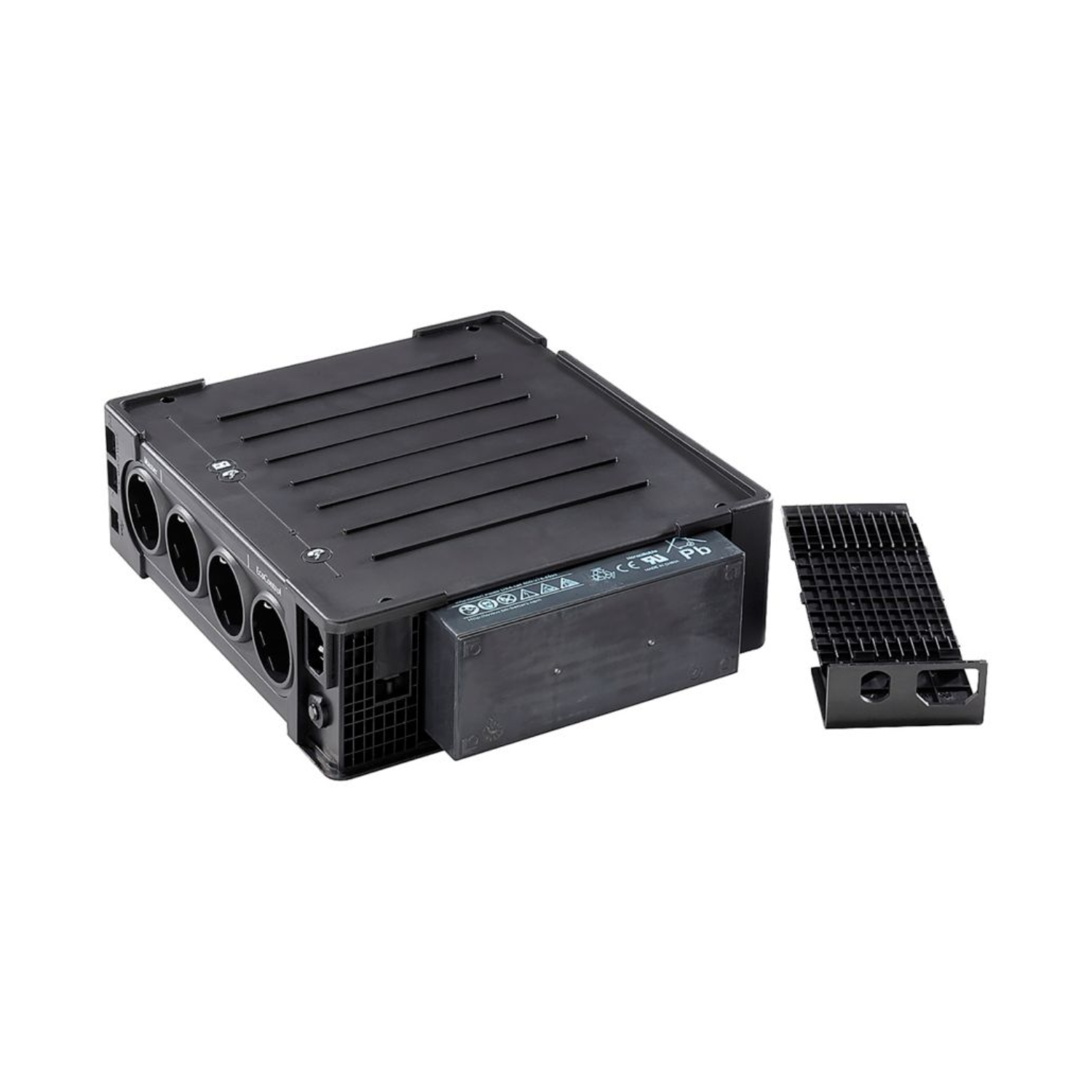

Hot-swap battery
Typical backup time at full load - min
Typical backup time at half load -
Design
Colour of product Black
Form Factor Rackmount
Rack mounting 2U
Performance
Audible alarms
Ports & interfaces

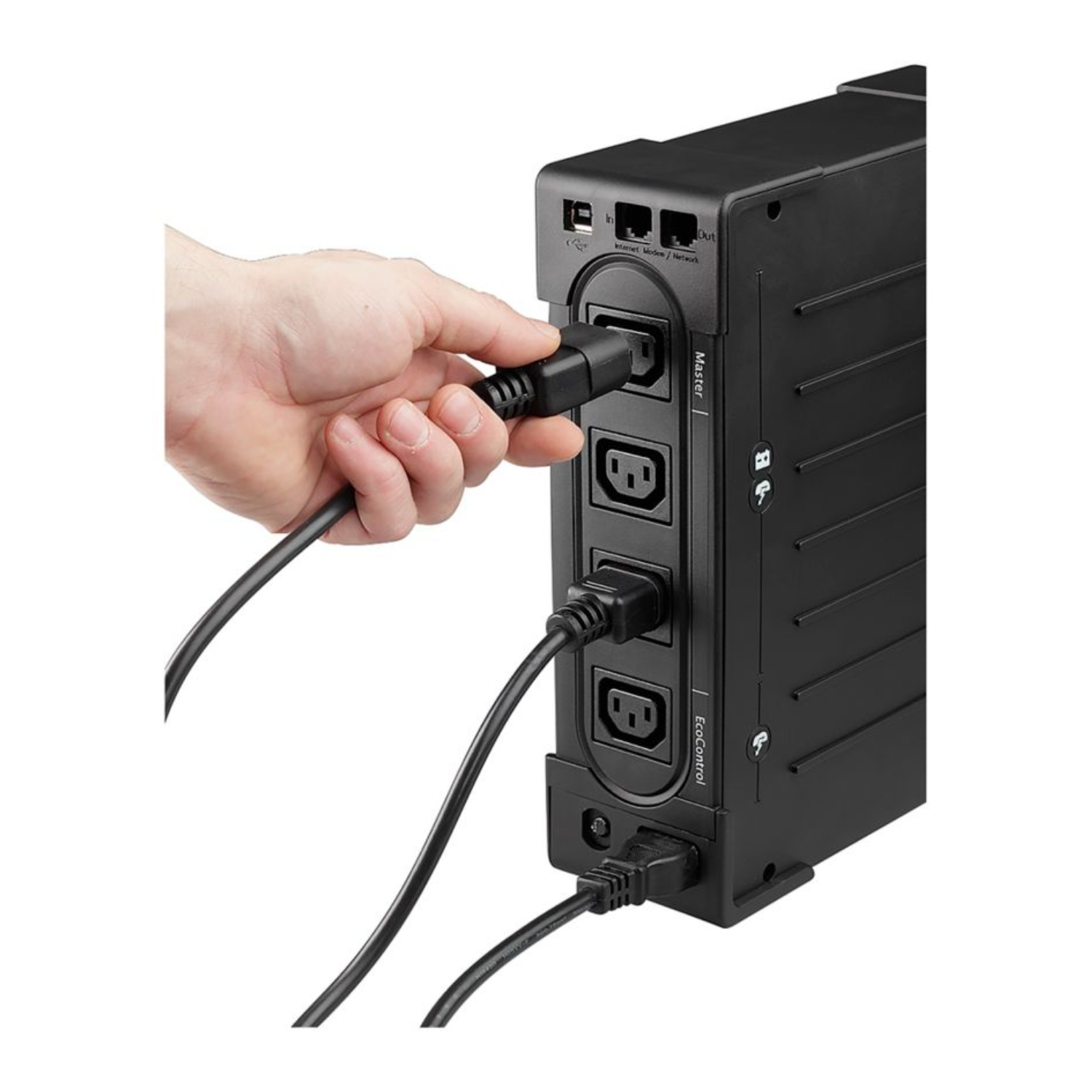

AC outlet types C13 coupler
AC outlets quantity 4
Ethernet LAN (RJ-45) ports 1
Modem (RJ-11) ports 1
Power plug C14 coupler
Power
Emergency Power Off (EPO)
Input operation voltage (max) 284 V
Input operation voltage (min) 161 V
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Output power 400 W
Output power capacity 650 VA
Power supply input frequency 50/60
Warranty
Warranty 2 years warranty
Certificates
Safety IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Other features
Input connection type IEC
Nominal input voltage 230 V
Nominal output voltage 220-240
Overload protection
Weight & dimensions
Depth 235 mm
Height 263 mm
Weight 3600 g
Width 81 mm
