HPE ProCurve Networking Gigabit SX-LC Mini-GBIC Module

HP Deals & Promotions

Cashback available when purchased with a qualifying Switch, click here for further information

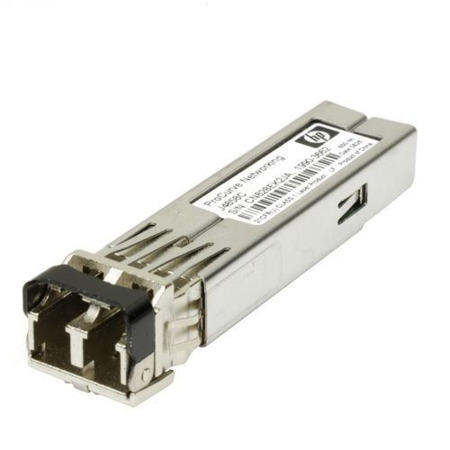

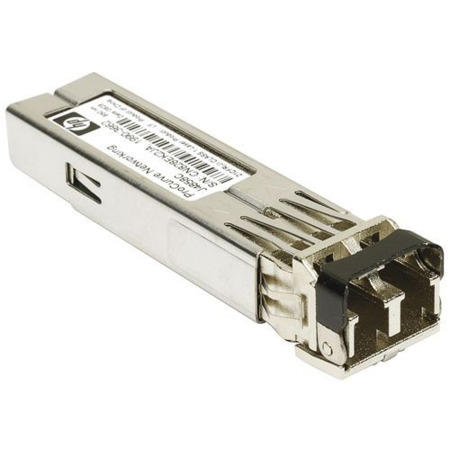

The HP ProCurve Gigabit-SX-LC Mini-GBIC is a small form factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550 m on multimode fiber.

• Ports: 1 LC 1000Base-SX port (IEEE 802.3z Type 1000Base-SX)
• Duplex: full only
• Dimensions: 5.69 x 1.37 x 1.23 cm
• Weight: 0.02 kg
• Cabling Type: 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a respectively

Maximum distance:

• 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth)
• 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth)
• 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
• 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
