These units contain a gas which is governed by F-Gas regulations. The gas must be handled by a qualified F-Gas personnel. 2 Year warranty is subject to commissioning by qualified F-Gas engineers. 5 Years extended parts warranty is subject to annual service. Further information on the requirements and ensuring the engineer is qualified can be found at gov.uk.
A space-saving solution

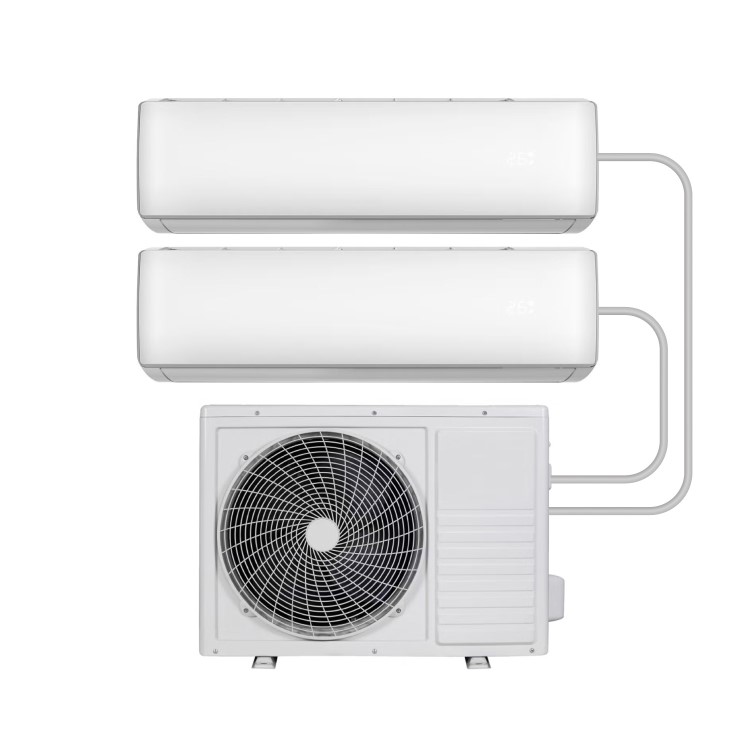

Unlike conventional split air conditioners that require a separate outdoor compressor unit for every room, this advanced multi-split air conditioner system is designed to power two rooms from a single outdoor compressor.
This saves on expensive installation and running costs and keeps the outside of your property attractive and clutter-free. Plus, each indoor unit has a separate remote control, allowing for individual control of each indoor unit.
Cooling & heating, all year round
The electriQ iQool Multi-split range offers versatile climate control for both winter & summer, featuring heating and cooling modes.
The built-in dehumidifier helps to remove excess moisture from the air for better air quality and extra comfort, and it's great for drying your laundry when it's raining out.
This electriQ multi-split air con system also has an impressive 5-year warranty for your peace of mind.
Unrivalled performance

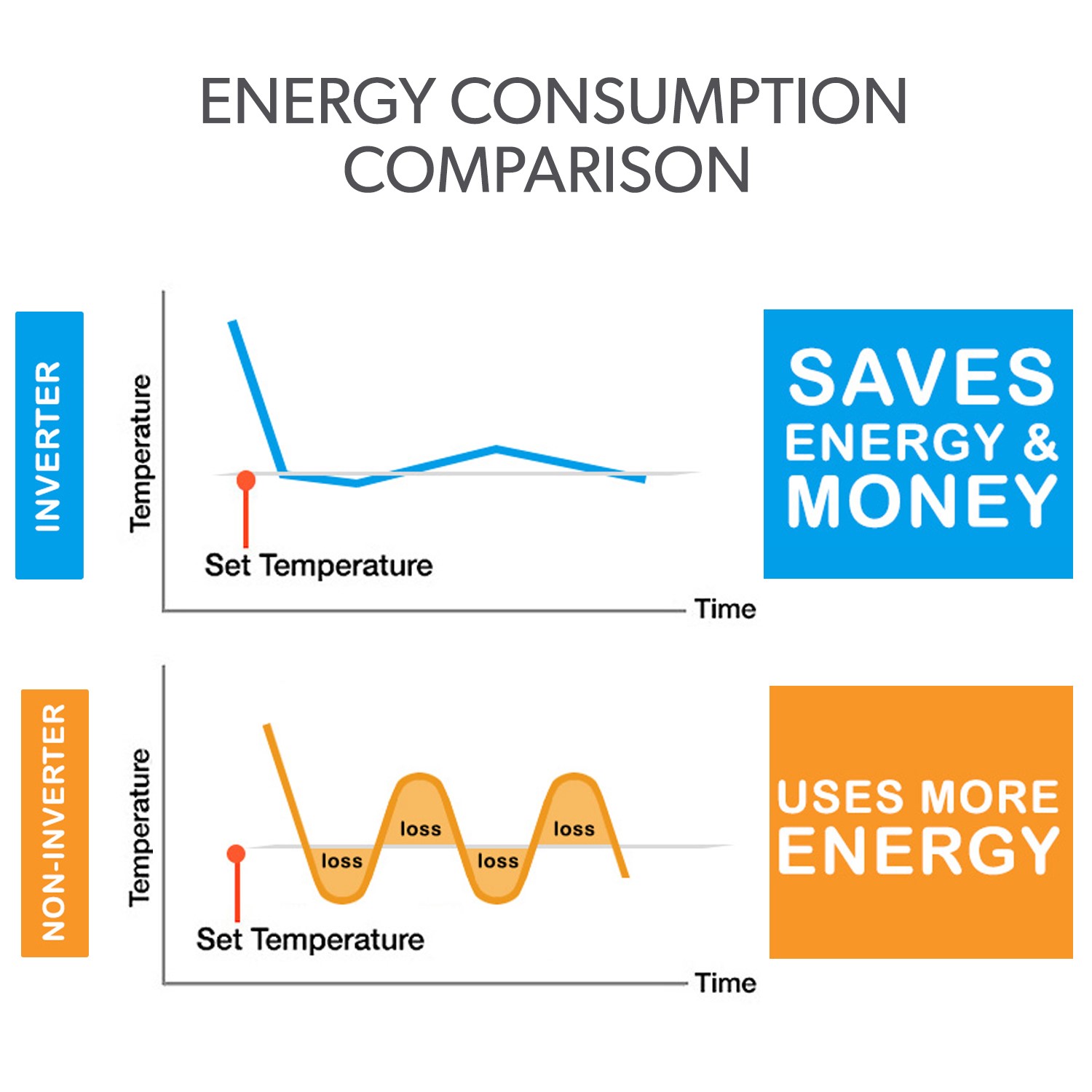

This cost-effective, energy-efficient system will economically cool or heat rooms up to 52 sqm in size, and is perfect for both homes & offices. It boasts the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, thus saving you between 40% - 60% on your energy bill when compared with a non-inverter equivalent which has fixed compressor speed. It also has the added advantage of being exceptionally quiet so you'll forget it's even there.
Customise your comfort & save energy
Don't waste energy heating unoccupied spaces with central heating. Create different temperature zones within your home for truly personalised, efficient cooling & heating that's optimised for the areas in your home that you use the most. Heating by heat pump is up to 4 times more efficient than electric central heating. It's also exceptionally quiet, so you'll forget it's even there.
This wall-split AC operates at an average cost of about 36p per hour. However, thanks to its variable compressor speed, it can potentially use as little as 6p.
Specification

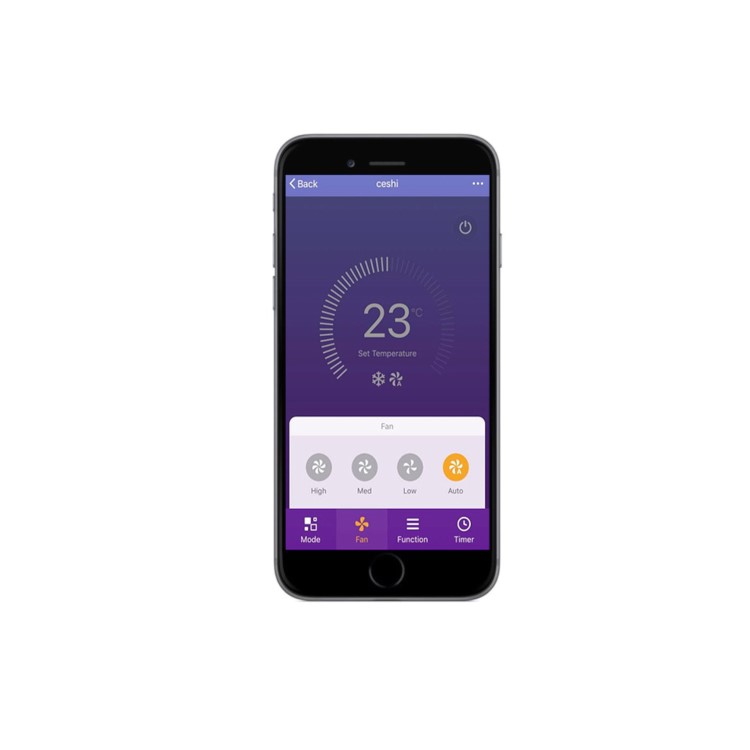

- Smart WiFi control
- Super DC Inverter - Energy-saving technology
- Easy Fit with 5m pipe & cable kit supplied as standard (Optional 10m pipe kit available - See Recommended Accessories)
- Ultra Quiet Operation
- Remote control for each indoor unit
- Digital LED temperature and function display
- Cooling capacity (single unit): 2.6 kW
- Heating capacity (single unit): 2.6 kW
- Cooling capacity (total 2 units): 5.1 kW
- Heating capacity (total 2 units): 5.2 kW
- SCOP: 4.0 (A+) / SEER: 6.1 (A++)
- Warranty: 2 years parts & labour + 3 years parts
Dimensions

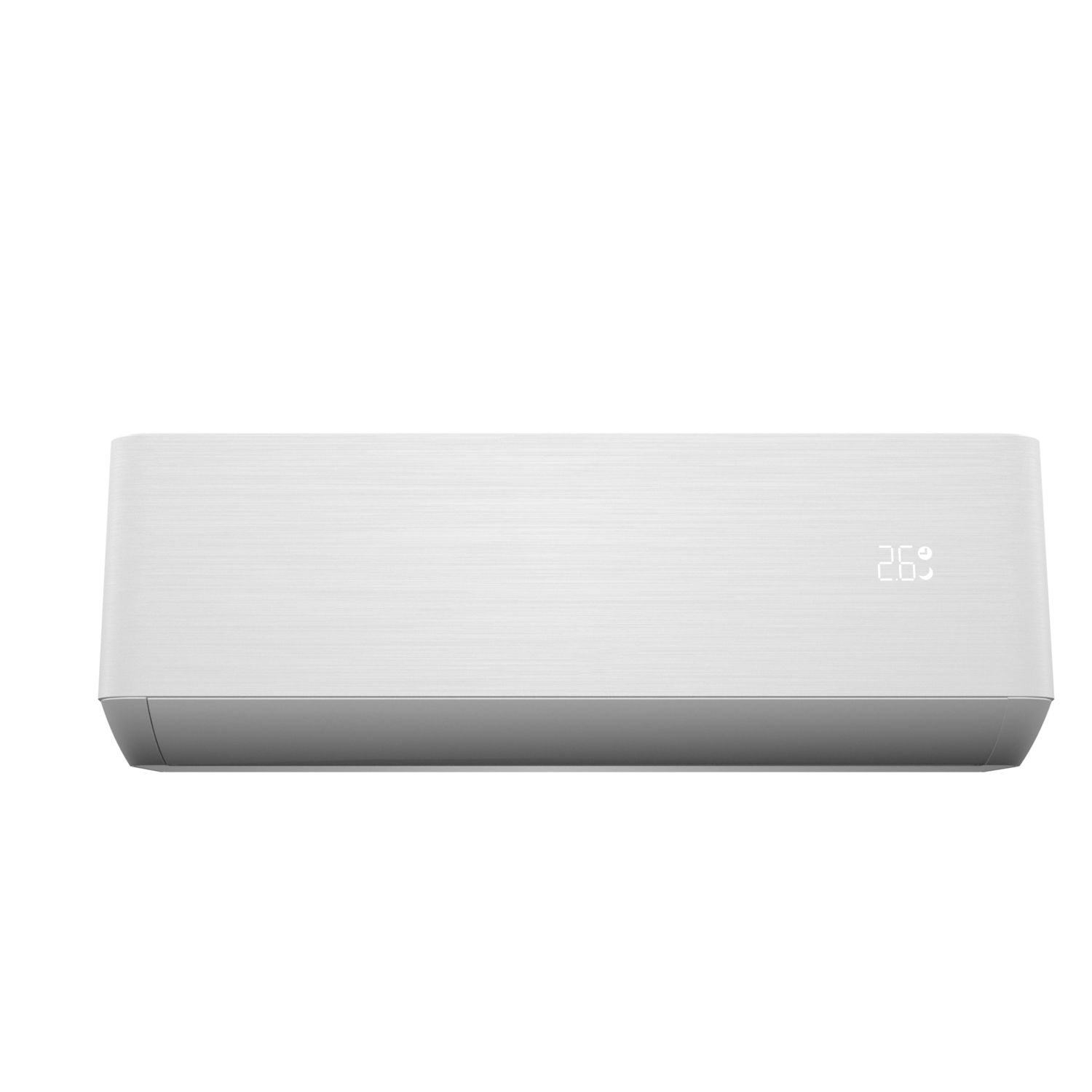

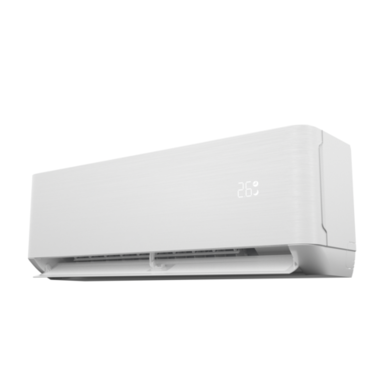

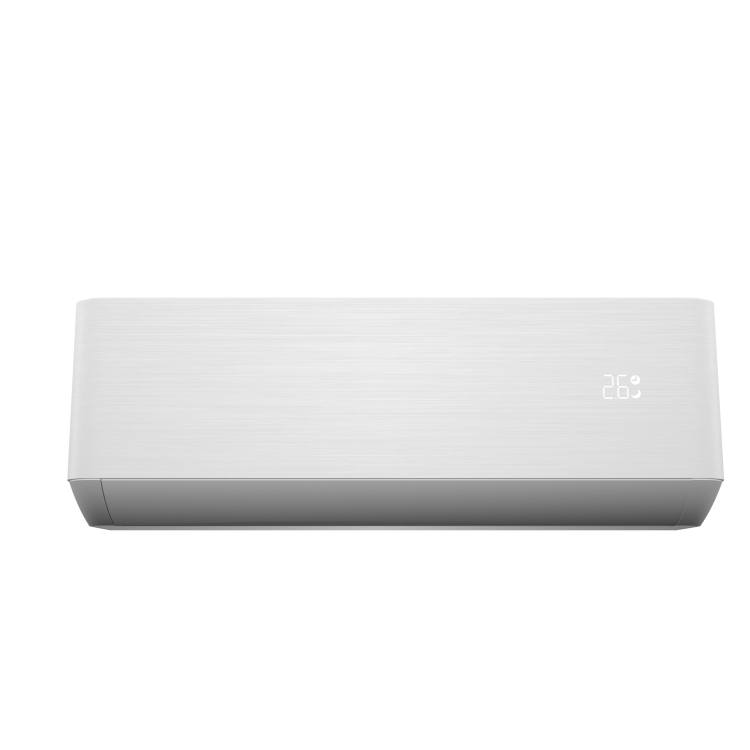

- L x W x H: 790 x 275 x 192mm (Per indoor unit)

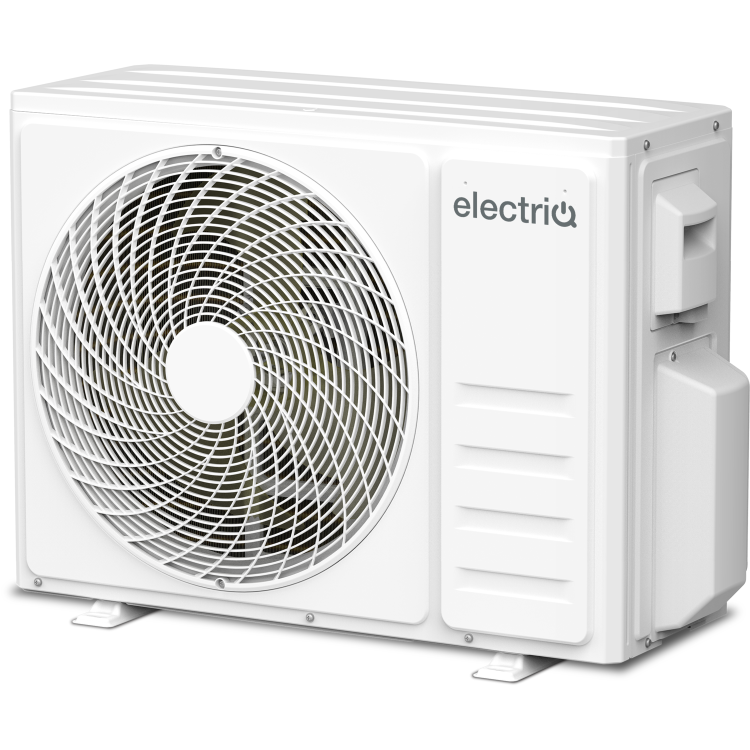

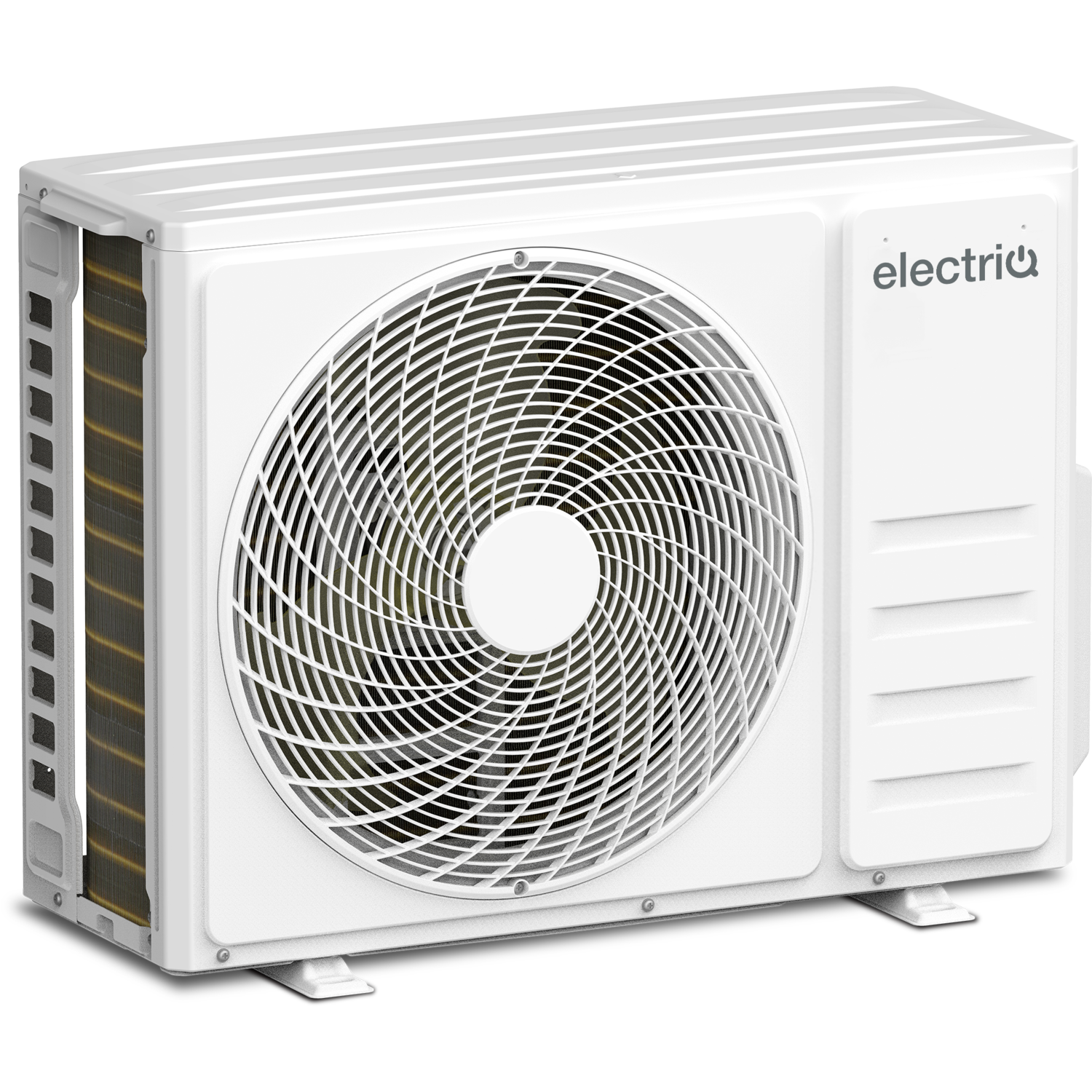

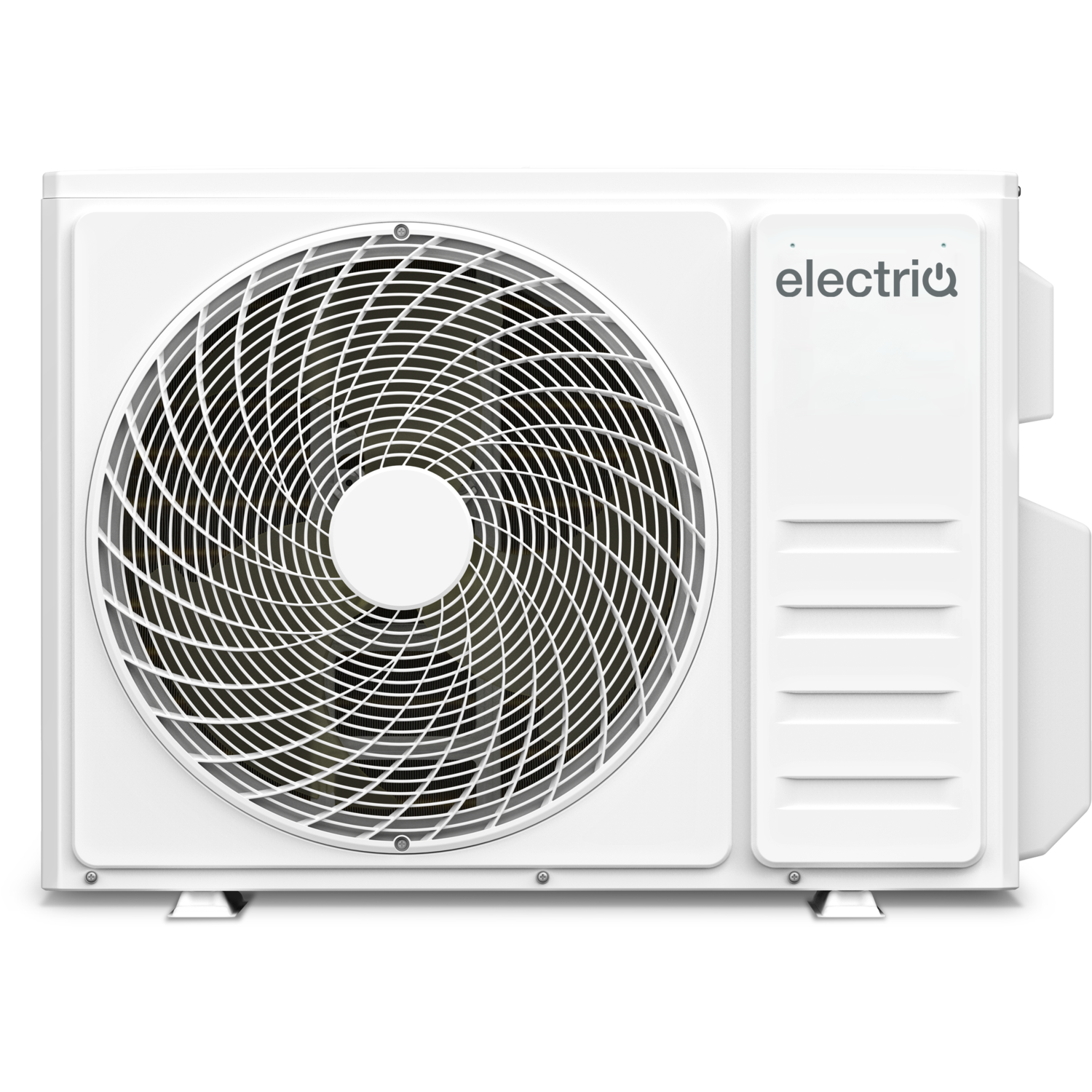

- L x W x H: 853 x 349 x 602mm (Per outdoor unit)
- Weight (Net/Gross): 8kg/10kg (Indoors)
- Weight (Net/Gross): 31kg/33kg (Outdoor)

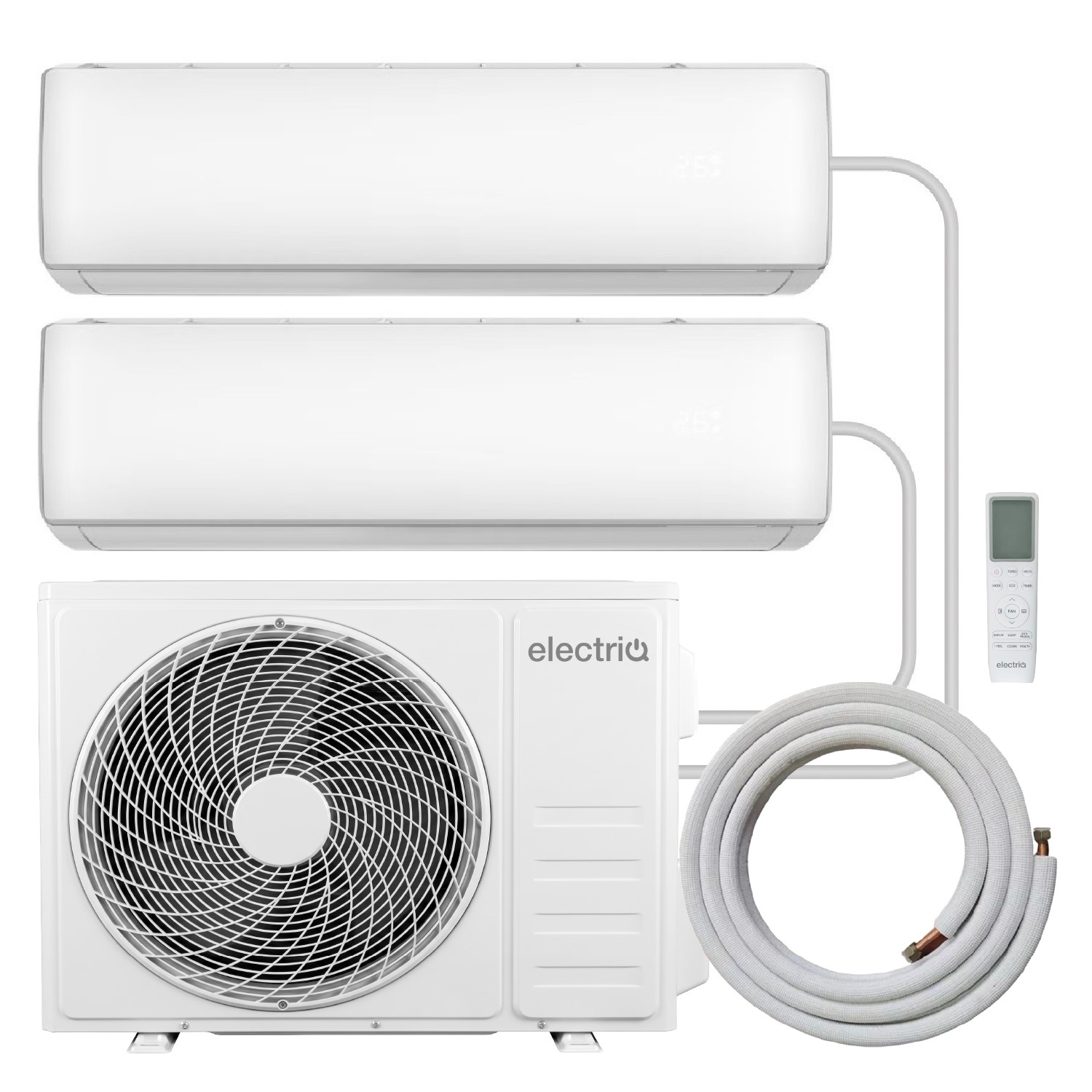

What's in the box

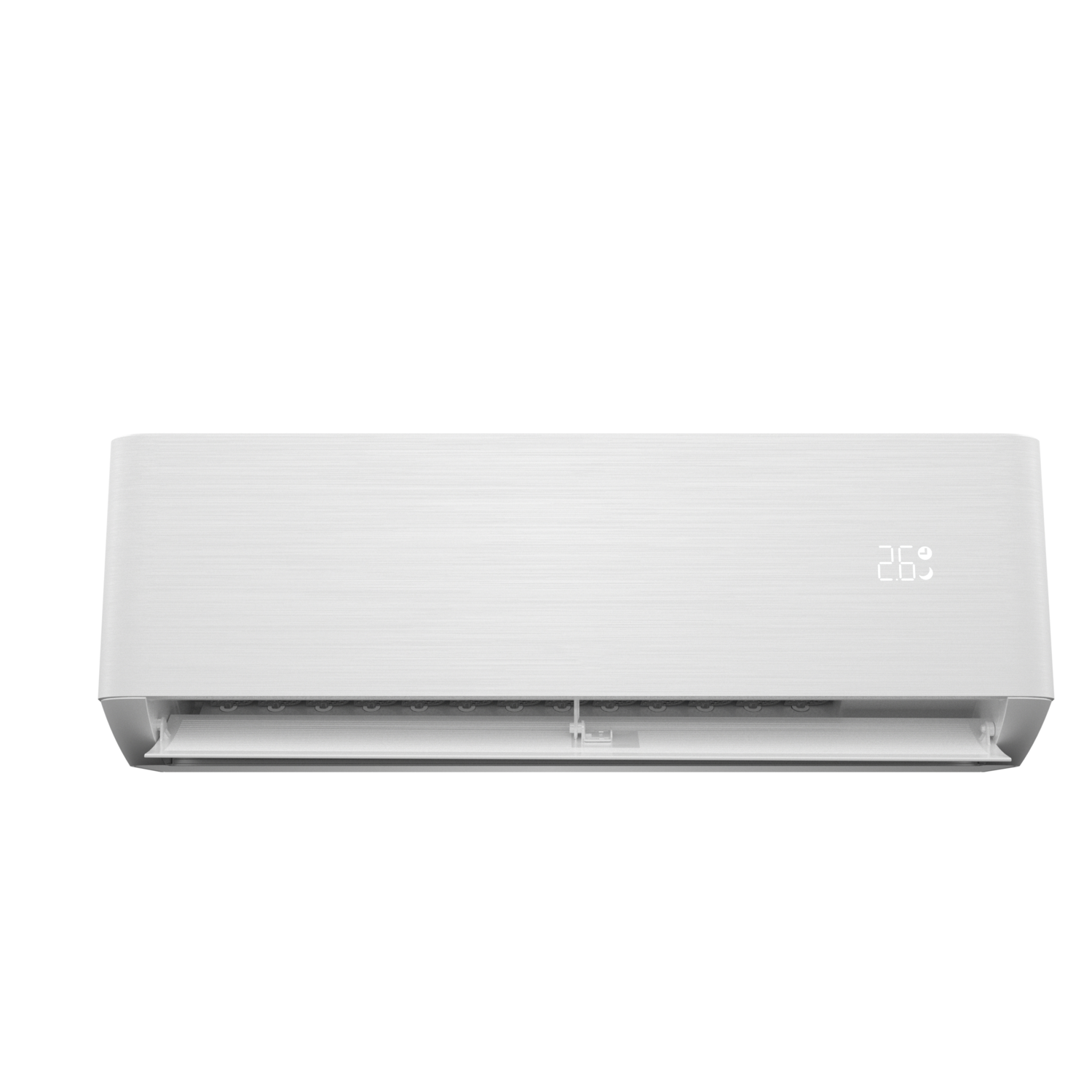

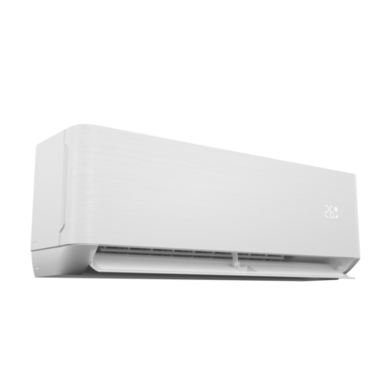

- 2 x Indoor Units (iQool-2MS9K9KIN)
- 1 x Outdoor Unit (iQool-2MS9K9KEX)
- Indoor wall brackets
- 5m Copper pipe & Electrical cable
- Remote controls
*Wall brackets for outdoor units can be purchased separately
Useful information
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed and they come with a pre-flared pipekit enabling the qualified fitter to install them easily. The indoor units should be fitted to the wall using the mounting plate supplied in the box. The condenser should be fixed on the ground or wall-mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5-metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with an electrical cable.
The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing. These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2-year warranty is subject to commissioning by qualified F-Gas engineers. A 5-year extended parts warranty is subject to annual service. Further information on the requirements and ensuring the engineer is qualified can be found at Government Guidance.
Note: To reduce the Global Warming Potential, the outdoor unit footprint and provide extra energy savings; our outdoor units have a rating lower than the sum of indoor units BTU. Please note this will not affect the cooling or heating in individual rooms as those units are variable cooling inverters and they balance the cooling or heating power among the indoor units to achieve the target temperature in the shortest time. Please ensure you size the rooms per our guidance or call for tech support.
Downloads
User & Installation Manual »
Question from Avril: Asked on 03/06/2026 can the unit cool one room and heat another room at the same time
Hi Avril,Yes — a multi-split air conditioner can heat one room and cool another at the same time, but both indoor units share the same outdoor compressor, so performance is shared and may reduce if both are working hard.Thanks!
Question from Geo: Asked on 01/06/2026 how do i know the units per day on average for 9000 btu? considering its 12 degree inside? just wanted to know the units used per day even though there are log of variables like insulation etc.. what will be the consumption of electricity to warm for a single unit.. Cant find it anywhere
Hi, This 9000 BTU iQool heat pump doesn’t use a fixed amount of electricity — it varies depending on demand. In normal UK winter use, you can typically expect around 3–6 kWh per day per unit, depending on room size, insulation, and outside temperature. It’s designed to be much more efficient than standard electric heaters because it only uses the power needed to maintain the set temperature.
Thank you.
Question from James: Asked on 29/05/2026 What are the dimensions of the outdoor unit ?
Hi, The outdoor unit for the electriQ iQool Multi-Split 2 × 9000 BTU air conditioner measures 853 mm (W) × 349 mm (D) × 602 mm (H).
Thank you.
Question from Max: Asked on 27/05/2026 Hi
It said 5 mt of hose, is this in total or per indoor unit ifi went with the one with two units
So does each unit have a a max length of 5mt installed length ?
Hi Max,The 5 metres of hose is per indoor unit, not shared between them, so each unit has its own separate connection to the outdoor unit and can use up to 5 metres of pipe run.Thanks!
Question from Jenni: Asked on 25/05/2026 Is the 5m cable sufficient for split units across 2 floors?
Hi Jenni,The included 5 m pipe and cable kits are usually sufficient for a typical two-floor installation, provided the outdoor unit is positioned close to the indoor units, though a longer run may be needed if the routing involves extra distance, corners, or a more complex layout.Thanks!
Question from Om: Asked on 25/05/2026 Can I buy 2 indoor units now and then buy more in the future when needed? Do I need to change the outdoor to unit to future proof this?
Hi,You can’t add more indoor units to that 2-unit electriQ multi-split system later because the outdoor unit is only designed to support two indoor units, so if you think you might want more rooms in the future, you would need either a larger multi-split system with extra capacity from the start or a separate additional system rather than expanding this one.Thanks!
Question from Sean: Asked on 20/05/2026 Can I install these units myself or do I need a qualification for the f gas?
Hi, The manual covers the physical installation (unit mounting and pipe routing), but it does not remove the need for F-Gas compliance; because this is a split multi-split system using R32 refrigerant, the final connection, vacuuming, leak testing, and commissioning must be completed by an F-Gas certified engineer in the UK, so while it is installer-friendly with pipe kits included, it is not a DIY-commissionable system.
Thank you.
Question from Richard: Asked on 23/10/2025 Hi are these pre gassed in the outdoor only or both indoor and outdoor
Hi,The TCL iQool 2MS9K9K air conditioner is a pre-gassed split system designed for both indoor and outdoor installation, with the indoor unit placed inside the room and the outdoor unit positioned outside for heat exchange.Thanks!
Question from Kiera: Asked on 19/10/2025 Hello,
I'd just like to check the power supply required for this product to each unit please. Would it be a 3kW/13A supply to indoor units and would a 32A supply to the outside unit suffice?
Thank you
Hi Kiera,The TCL iQool 2MS9K9K multi-split air conditioning system operates on a standard single-phase AC supply of 220-240 V, 50 Hz. Although the manufacturer’s documentation does not specify the exact current draw, it can be reasonably estimated based on comparable multi-split systems. Each indoor unit is expected to require a 13 A fused connection, which is typical for a 9000 BTU unit, while the central outdoor unit should have a dedicated 32 A supply to safely handle the total system load.Thanks!
Question from Ike: Asked on 08/10/2025 Do you offer installation services?
Hi,Yes, we do. Please add the installation service to your order.Thanks!
Question from b9udzkgycgm9@opayq.com: Asked on 12/06/2023 Can this be operated without wifi or a mobile phone app?
Hello there! For more information, kindly refer to this user and installation manual (https://www.appliancesdirect.co.uk/files/pdf/ElectrIQ_Split_manual_V2%2020180730.pdf). Hope this helps! Thanks, Erika
Question from Josh: Asked on 19/07/2021 Can this be used in a restaurant space
Question from Philip Currie: Asked on 19/07/2021 How much should installation be with the external unit vertically below the two internal units on the same wall. What clearance is needed for the external unit
Hi Philip,
Please could you call our installation team on 0330 041 2742.
Regards,
Michael
