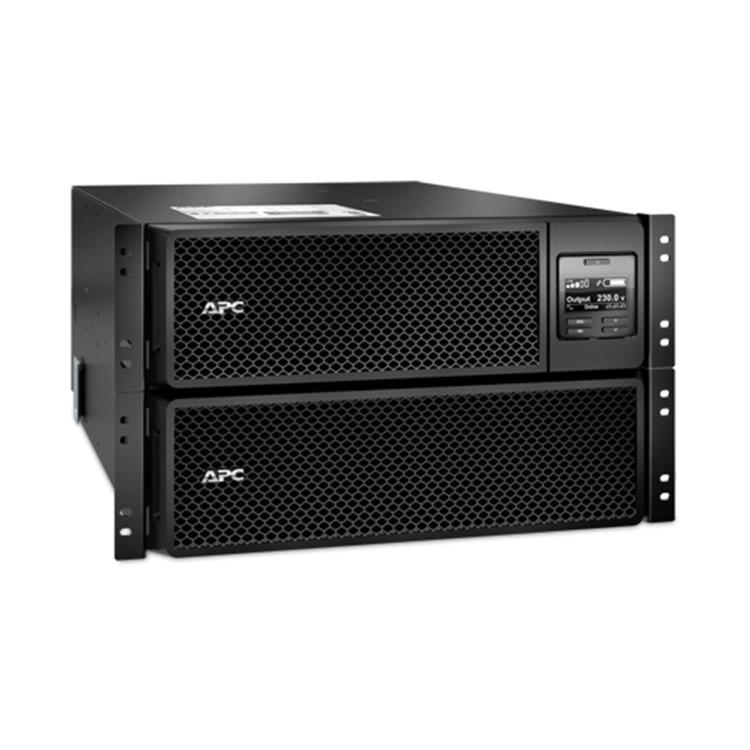

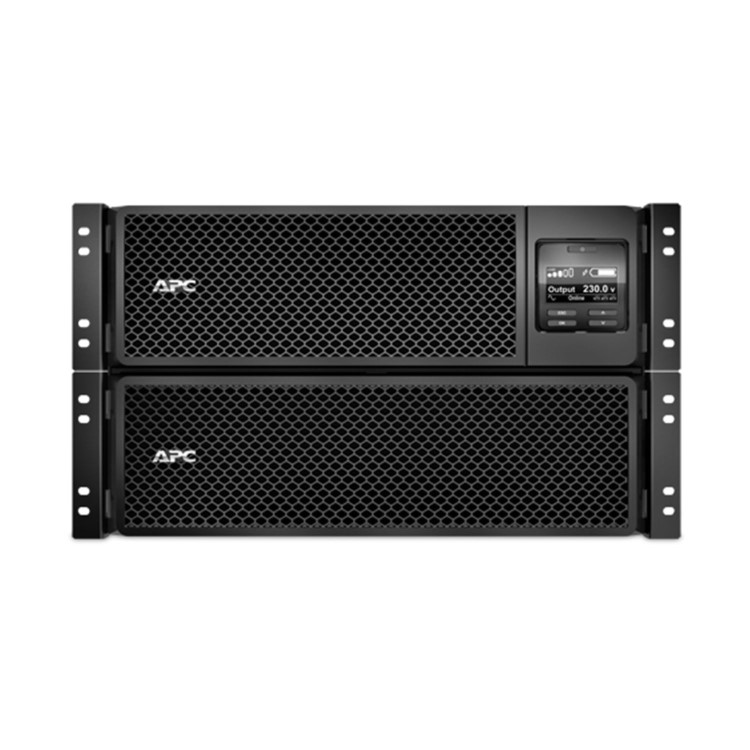

APC SRT Smart-UPS 10000VA RM 230V

SKU: SRT10KRMXLI Quickfind Code: 900023
SAVE 7%
APC SRT Smart-UPS 10000VA RM 230V
APC SRT Smart-UPS 10000VA RM 230V
APC SRT Smart-UPS 10000VA RM 230V
APC SRT Smart-UPS 10000VA RM 230V
Product Information Sheet
Was: £7102.27     You save: £485.63
£6616.64
inc. VAT :£7939.97
Why buy me
  • LCD graphics display
  • 10/100Base-T connection
  • Green mode
  • Battery failure notification
  • LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
  • 10/100Base-T connectionConnect the device to a network using a 10 or 100Base-T connection.
  • Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance.
  • CD with software

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »

click

Smart UPS On Line provides high density, double conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications.

The Smart UPS On Line is capable of supporting loads from 1 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power hungry blade servers or heavily loaded equipment racks. When business critical systems require runtime in hours, not minutes, Smart UPS On Line can be configured with multiple battery packs to meet aggressive runtime demands.

The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart UPS On Line family helps to provide value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Best in class power density
More real power in watts, 0.82 to 0.9 pf on the 1, 1.5, 2.2 and 3 kVA models. 0.85 pf on 5 kVA and Unity on 6 kVA – 10 kVA units.
High efficiency "Green Mode": Achieves 98% efficiency, which helps save utility and cooling costs without compromising performance or reliability.

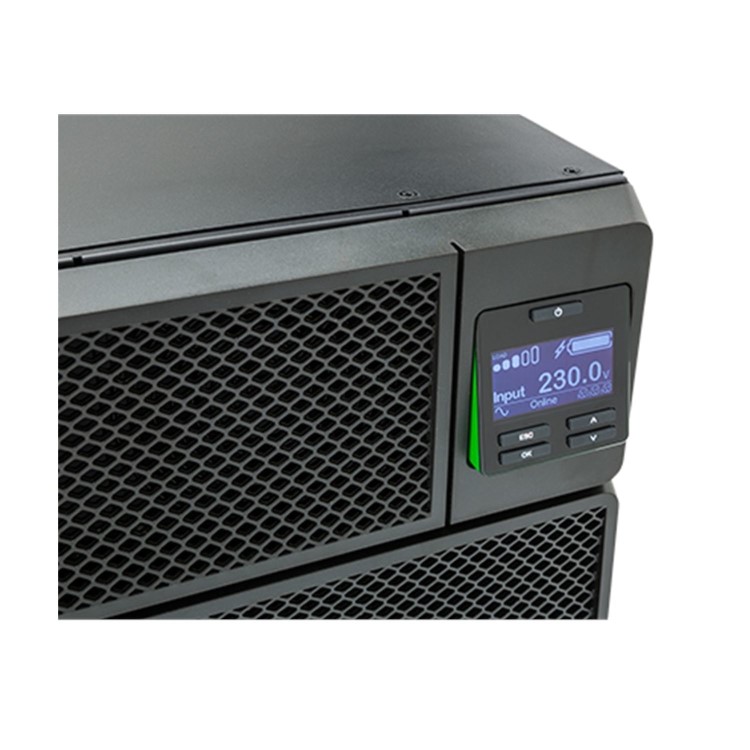

Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform the user which batteries need to be replaced and auto detect when additional battery packs are added.

Built in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Three year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

What's in the box?

  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card




Download User Manual
Battery
Battery recharge time 3 hour(s)
Battery Technology Sealed Lead Acid (VRLA)
Typical backup time at full load 3.8 min
Typical backup time at half load 11.5 min
Design
Colour of product Black
Form Factor Rackmount
Rack mounting 6U
Performance
Audible alarms

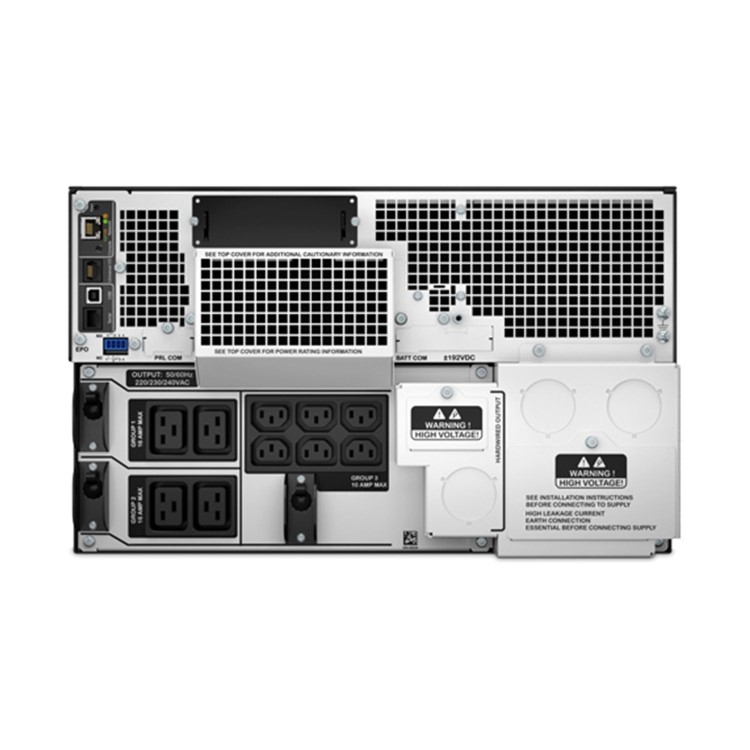

Ports & interfaces
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 14
Ethernet LAN (RJ-45) ports 1
Serial ports quantity 1
USB 2.0 ports quantity 1
Power
Crest factor 3:1
Input operation voltage (max) 240 V
Input operation voltage (min) 220 V
Output frequency regulation 50/60
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Output power 10000 W
Output power capacity 10000 VA
Output voltage THD 3 %
Power supply input frequency 45/65
Surge energy rating 480 J
Warranty
Warranty 3 years warranty
Certificates
Certification CE, CE Mark
RoHS compliance
Operational conditions
Non-operating altitude 0 - 4500
Operating altitude 0 - 900
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 40
Storage relative humidity (H-H) 0 - 95
Storage temperature (T-T) -15 - 45
Weight & dimensions
Depth 715 mm
Height 263 mm
Package depth 1000 mm
Package height 461 mm
Package weight 130000 g
Package width 600 mm
Weight 111820 g
Width 432 mm
