StarTech.com 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

SKU: HSB225SATBK Quickfind Code: 895259
SAVE 13%
Was: £33.32     You save: £4.18
£29.14
inc. VAT :£34.97
Why buy me

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »

click

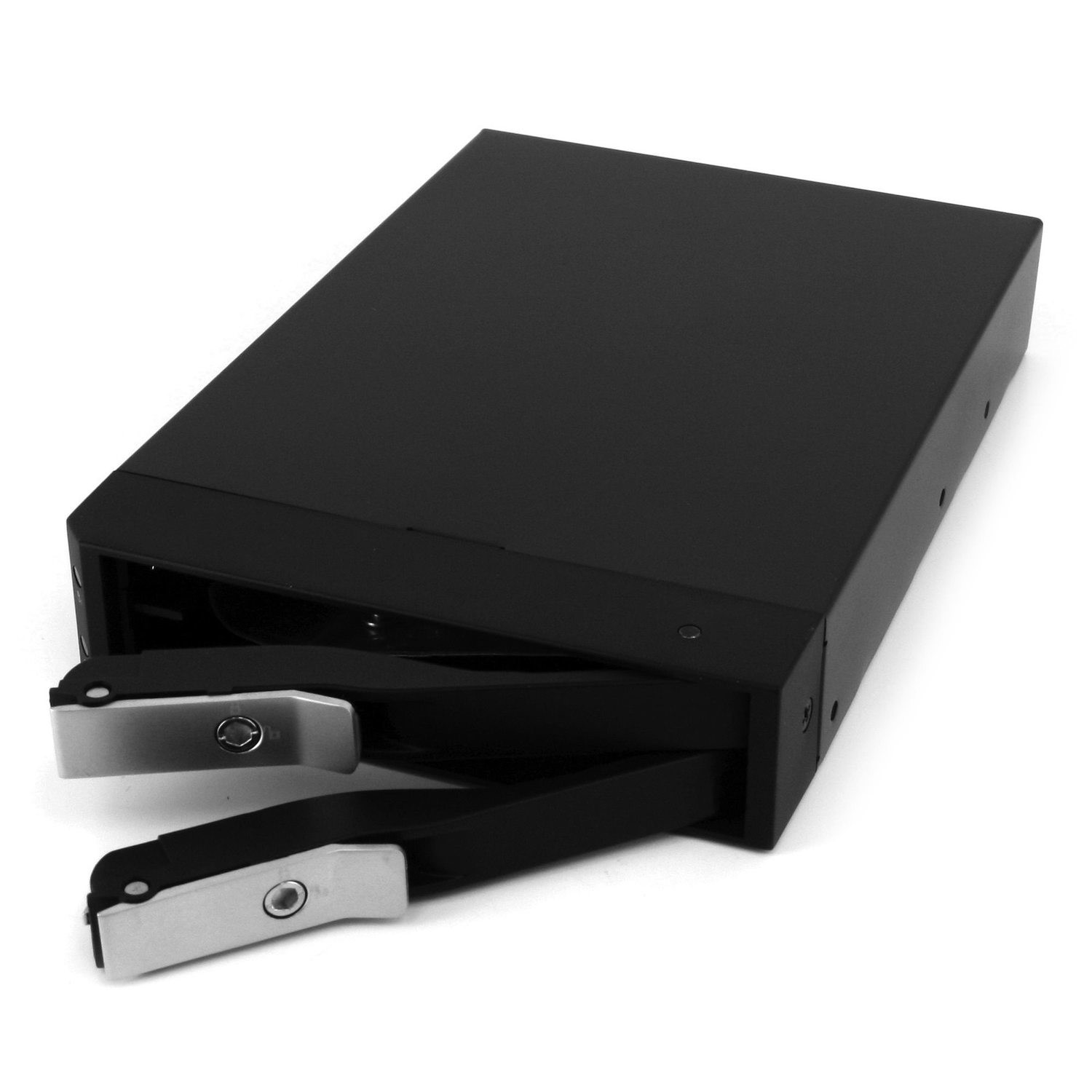

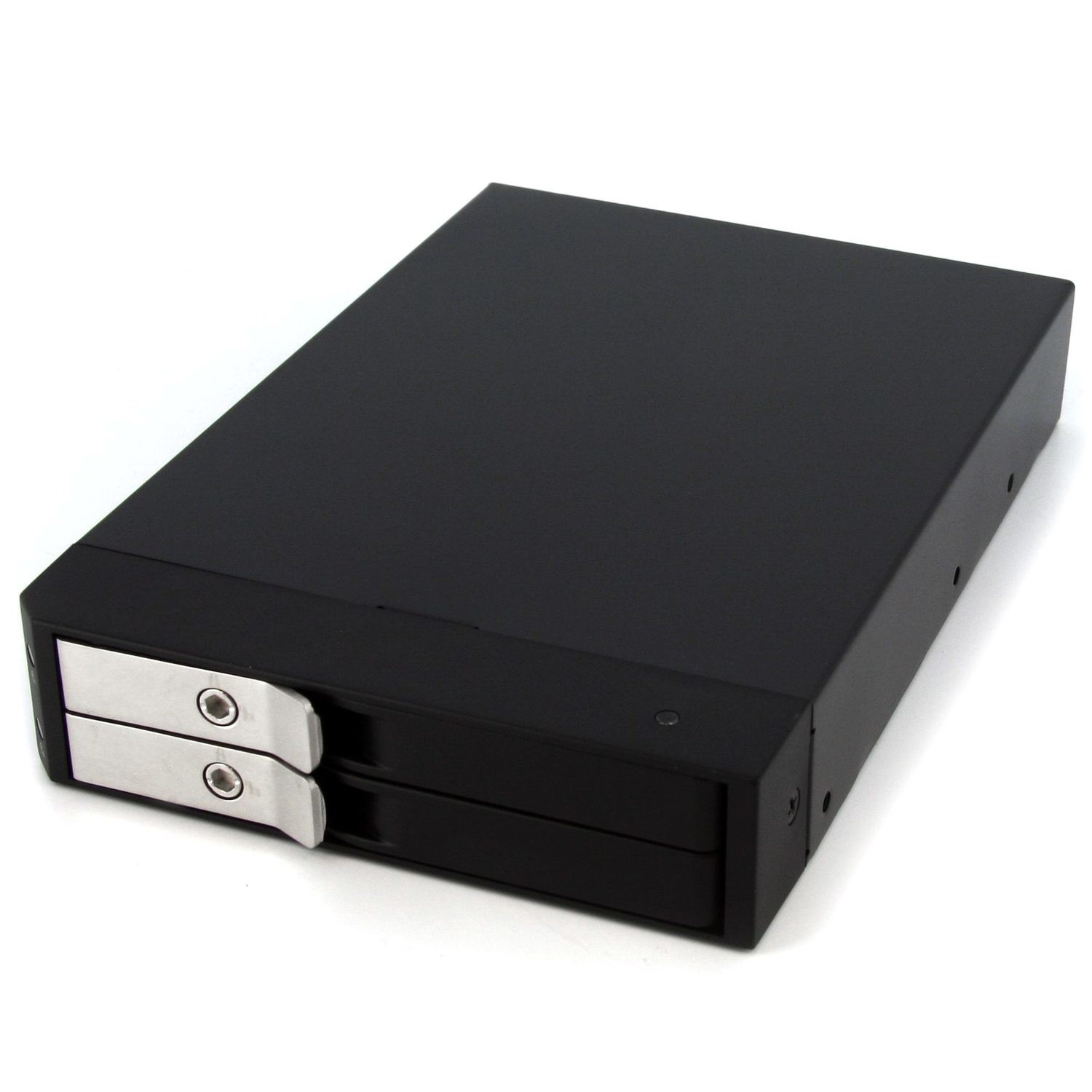

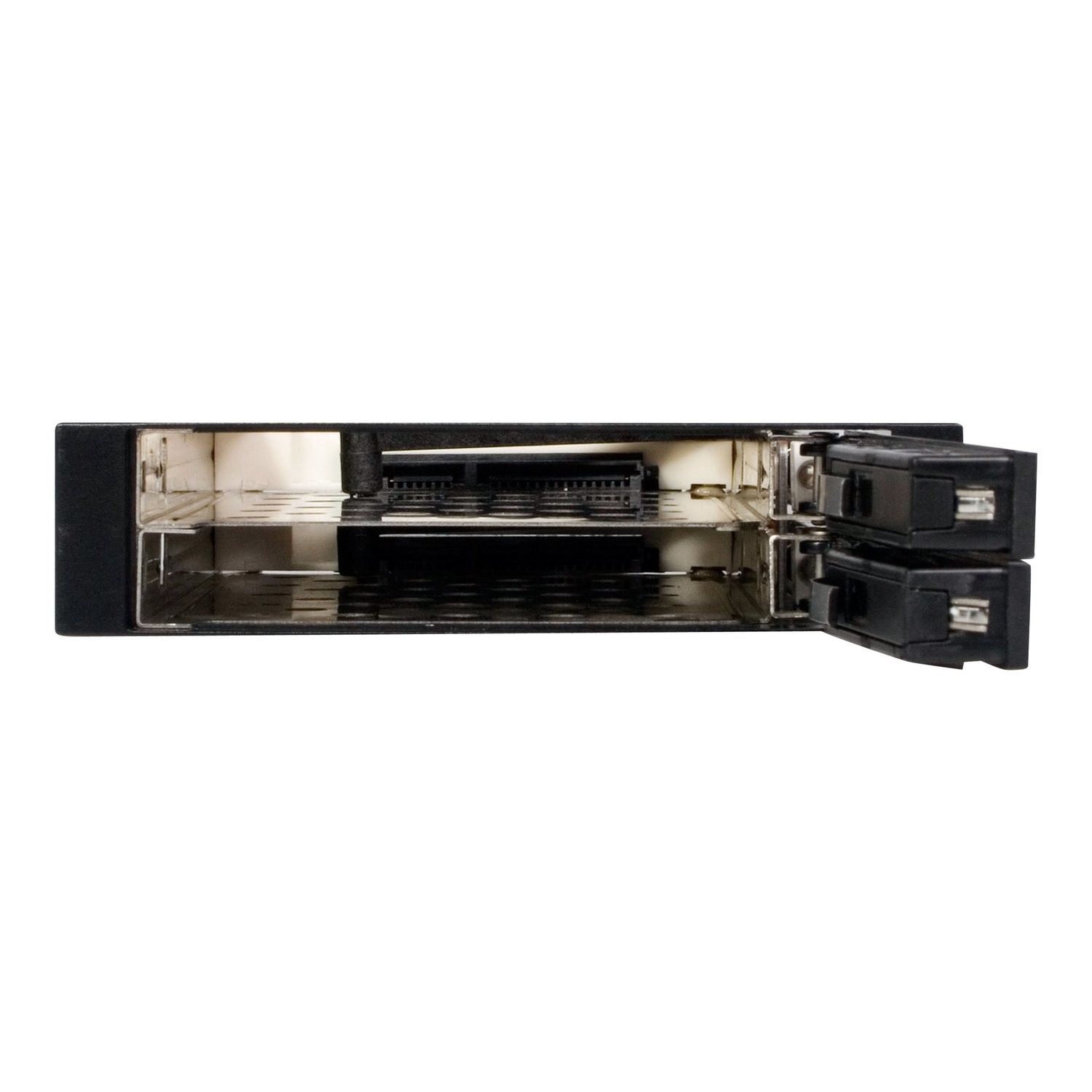

StarTech.com 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives

Easily connect and swap two 2.5in SATA hard drives or SSDs through a single 3.5in front bay. The HSB225SATBK 3.5in SATA Mobile Rack lets you install two 2.5in SATA (SATA, SATA II, SATA III-6Gbps) hard drives (HDD) or solid state drives (SSD) into an available/unused 3.5in floppy drive bay.

The mobile rack delivers quick and easy access to hard drive contents, using a convenient "no mounting required/easy eject" feature which eliminates the need for the drives to be installed in a tray - a time-saving solution for instant drive removals and insertions, as part of a system building process or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

For added safety, the mobile rack is made from UL94 V-0 rated plastics and equipped with locking bay doors to help prevent accidental or unauthorized removal of the swappable hard drives. Also a perfect addition for operating system image deployment and any task that requires being able to access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.


Design
Certification CE, FCC
Colour of product Black
LED indicators
Material Plastic,Steel
RoHS compliance
Ports & interfaces
eSATA ports quantity 2
Storage
Hot-swap
Number of storage drives supported 2
Storage drive size 2.5 "
Supported storage drive interfaces Serial ATA
Warranty
Warranty 2 years warranty
Operational conditions
Operating relative humidity (H-H) 8 - 90 %
Operating temperature (T-T) 5 - 70 °C
Storage temperature (T-T) -40 - 80 °C

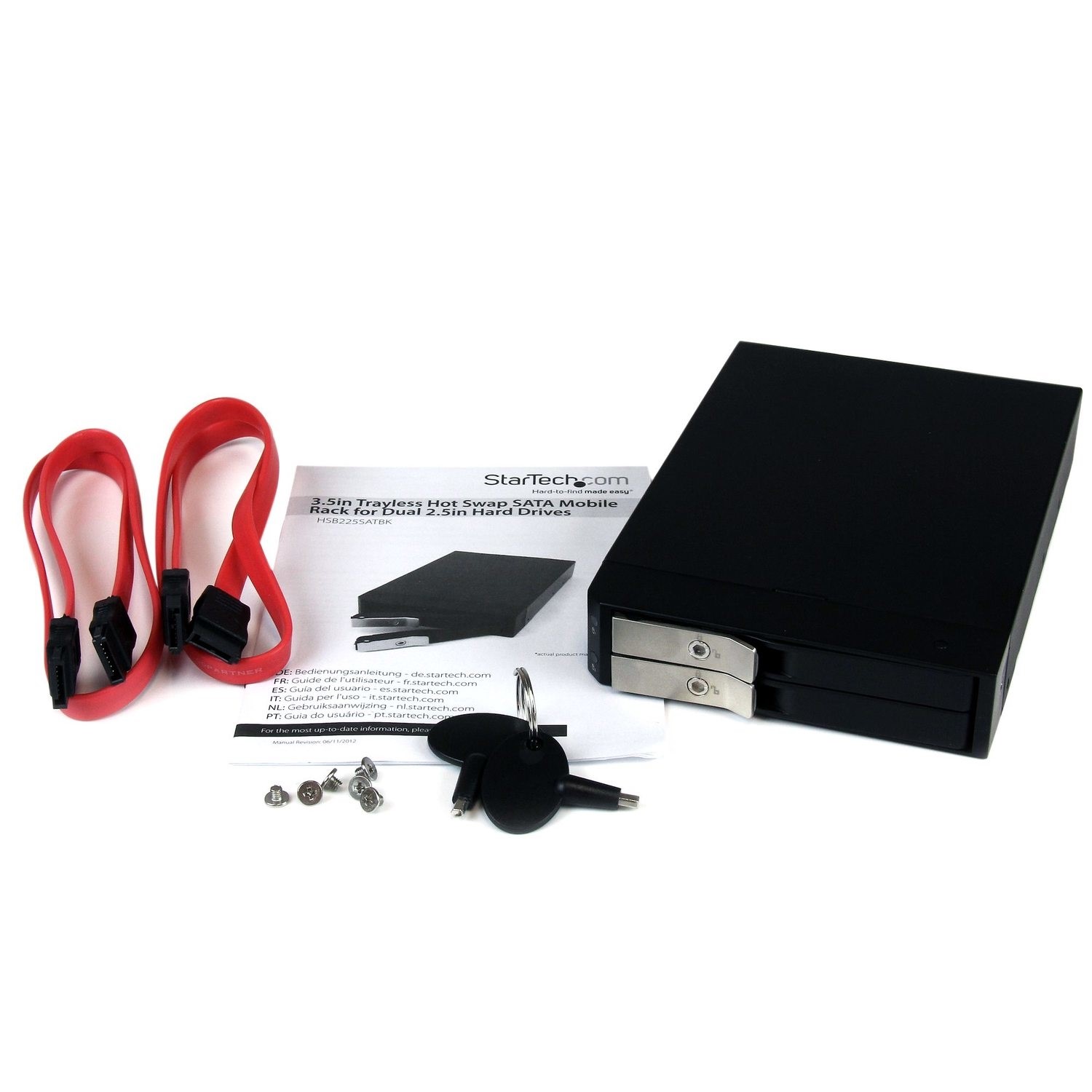

Packaging content
Cables included SATA
Weight & dimensions
Depth 154 mm
Height 25 mm
Package depth 140 mm
Package height 36 mm
Package weight 300 g
Package width 165 mm
Weight 224 g
Width 101 mm
