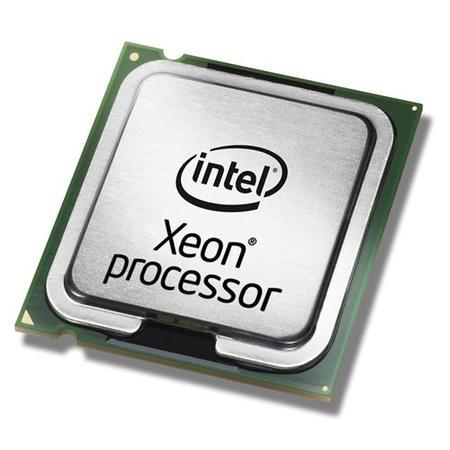

Intel Xeon E5-2403 Processor Option for ThinkServer RD330/RD430

SKU: 0A89449 Quickfind Code: 874747
SAVE 21%
Was: £253.00     You save: £53.02
inc. VAT :£239.97
Why buy me
  • Lenovo
  • Xeon
  • ThinkServer RD330/RD430
  • E5-2403

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »


Increase the processing power of your ThinkServer Dual-Socket systems with Intel Xeon E5-2400 family processors to boost your system's performance for advanced applications, technical computing, multithread applications, virtualization, and multitasking.

New Intel Xeon E5-2400 family processors feature Intel's latest innovation in micro-processor architecture Sandy Bridge, which leverages the Intel Westmere process technology. It is the entry dual socket server processor, which supports core features of the Intel Xeon processor E5 family such as Intel Integrated I/O, Intel Turbo Boost Technology 2.0, and Intel Trusted Execution Technology. These processors offer growing small and medium businesses an easy path to the higher performance and reliability of an Intel Xeon processor E5 family-based platform.

CPU configuration (max) 2
Embedded options available
Execute Disable Bit
Idle States
Maximum number of PCI Express lanes 24
PCI Express slots version 3.0
Scalability S2S
Thermal Design Power (TDP) 80 W
Thermal Monitoring Technologies
On-board graphics adapter
ECC supported by processor
Maximum internal memory supported by processor 375 GB
Memory bandwidth supported by processor (max) 25 GB/s
Memory channels supported by processor Triple
Memory clock speeds supported by processor 800,1066 MHz
Memory types supported by processor DDR3-SDRAM
VID Voltage Range 0.6 - 1.35 V
Box -
Bus type QPI
Component for server/workstation
Number of QPI links 1
Processor cache 10 MB
Processor cache type L3
Processor cores 4
Processor family Intel Xeon E5
Processor frequency 1.8 GHz
Processor front side bus 1066 MHz
Processor lithography 32 nm
Processor Model E5-2403
Processor operating modes 64-bit
Processor socket Socket B2 (LGA 1356)
Processor threads 4
System bus rate 6.4 GT/s
Processor special features
Enhanced Intel SpeedStep Technology
Intel AES New Instructions
Intel Demand Based Switching
Intel Flex Memory Access
Intel Hyper-Threading Technology
Intel Trusted Execution Technology
Intel Turbo Boost Technology
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel vPro Technology
Intel VT-x with Extended Page Tables (EPT)
Other features
Compatibility ThinkServer RD330/RD430
Height 0.22 "
Intel Virtualization Technology VT-d,VT-x
