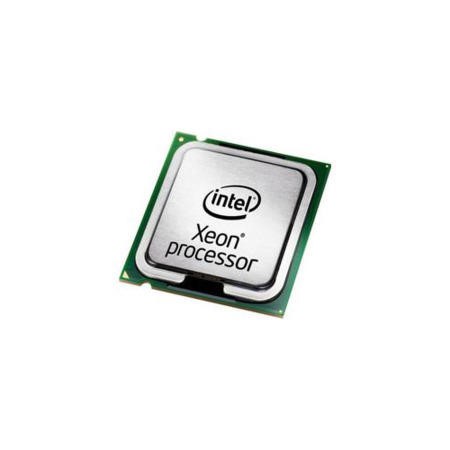

Intel Xeon processors represent a broad product line to meet a range of demanding performance and energy efficiency requirements for compute-intensive embedded, storage, and communications applications.
|
Features |
|
| Embedded options available | |
| Execute Disable Bit | |
| Idle States | |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | |
| Scalability | 2S |
| Thermal Design Power (TDP) | 95 W |
| Thermal Monitoring Technologies | |
|
Graphics |
|
| On-board graphics adapter | |
|
Memory |
|
| ECC supported by processor | |
| Maximum internal memory supported by processor | 768 GB |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Memory channels supported by processor | QUAD |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
|
Operational conditions |
|
| Tcase | 75 °C |
|
Power |
|
| VID Voltage Range | 0.6 - 1.30 V |
|
Processor |
|
| Box | - |
| Bus type | QPI |
| Component for | server/workstation |
| Number of QPI links | 2 |
| Processor boost frequency | 2.5 GHz |
| Processor cache | 20 MB |
| Processor cache type | L3 |
| Processor cores | 8 |
| Processor family | Intel Xeon E5 v2 |
| Processor frequency | 2 GHz |
| Processor front side bus | - MHz |
| Processor lithography | 22 nm |
| Processor Model | E5-2640V2 |
| Processor operating modes | 64-bit |
| Processor socket | Socket R (LGA 2011) |
| Processor threads | 16 |
| System bus rate | 7.2 GT/s |
|
Processor special features |
|
| Enhanced Intel SpeedStep Technology | |
| Intel AES New Instructions | |
| Intel Demand Based Switching | |
| Intel Flex Memory Access | |
| Intel Hyper-Threading Technology | |
| Intel Identity Protection Technology | |
| Intel Secure Key | |
| Intel Trusted Execution Technology | |
| Intel Turbo Boost Technology | |
| Intel Virtualization Technology (VT-x) | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel vPro Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
|
Other features |
|
| Intel Virtualization Technology | VT-d,VT-x |
