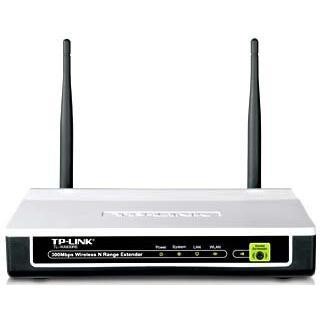

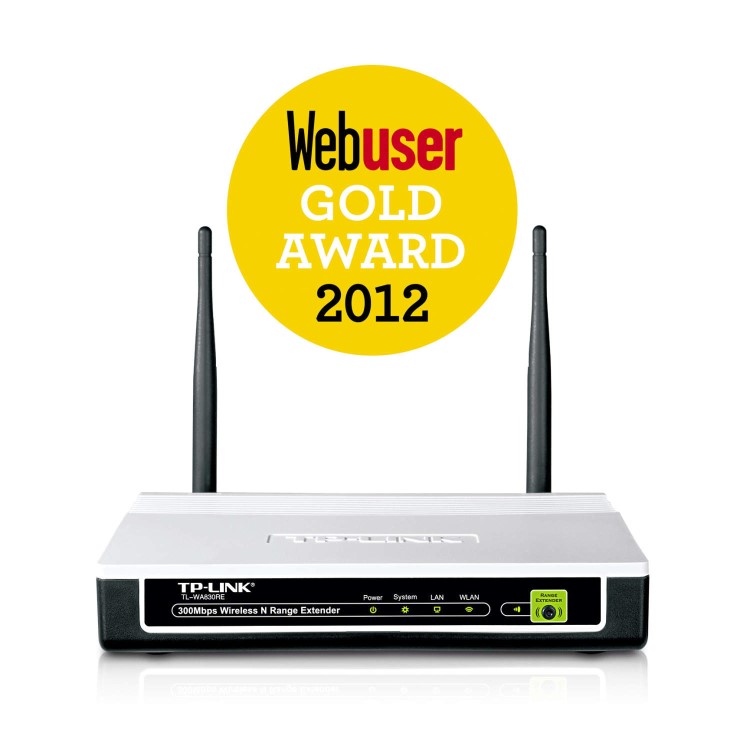

TP-Link Wireless N300 Range Extender

300Mbps Wireless N Range Extender - TL-WA830RE

TP-LINK’s TL-WA830RE 300Mbps Wireless N Range Extender is designed to extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. Combined with leading wireless N technologies, superior security and wider compatibility, TL-WA830RE makes it a secure high speed solution that can help you keep an existing wireless network unchanged and vastly improve the network’s coverage, giving you the freedom to enjoy Internet anywhere uninterruptedly in large areas such as homes, hotels or small offices without worrying about coverage limits.

Features

• 300Mbps wireless speed ideal for smooth HD video, music streaming and online gaming
• MIMO™ & CCA™ technology provides robust high-bandwidth wireless performance while automatically avoiding channel conflict
• Range Extender mode greatly extends your existing wireless coverage to eliminate “dead zones”
• AP mode helps establish a scalable high-speed wireless network with wide coverage
• Easily extend wireless coverage only in a few seconds at a push of Range Extender button
• Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming
• Full compatible with all IEEE 802.11b/g/n products
• Advanced WPA/WPA2 encryptions protect your network from security threats
• Bundled utility provides quick & hassle free connections to routers or AP
• External detachable antennas allow for better alignment and stronger antenna upgrades

HARDWARE FEATURES

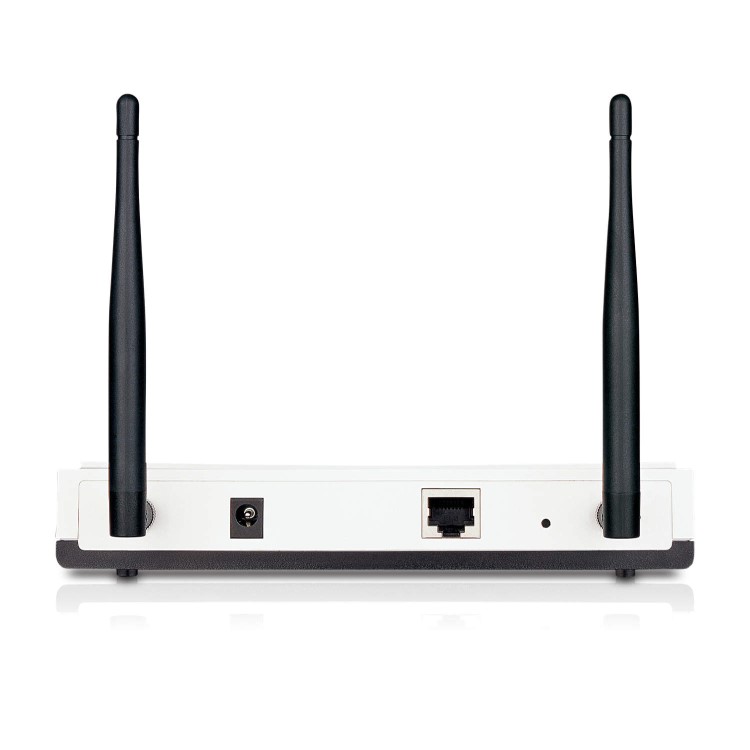

• Interface: One 10/100M Ethernet Port(RJ45)
• Button: Range Extender Button, Reset Button
• External Power Supply: 12VDC/1A
• Dimensions: ( W x D x H ): 6.9 x 4.7 x 1.1 in.(174 x 120 x 28.8 mm)
• Antenna Type: 2*4dBi Detachable Omni Directional (RP-SMA)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4-2.4835GHz
• Signal Rate:
  11n: Up to 300Mbps(dynamic)
  11g: Up to 54Mbps(dynamic)
  11b: Up to 11Mbps(dynamic)
• EIRP: <20dBm(EIRP)
• Reception Sensitivity:
  270M: -68dBm@10% PER
  130M: -68dBm@10% PER
  108M: -68dBm@10% PER
  54M: -68dBm@10% PER
  11M: -85dBm@8% PER
  6M: -88dBm@10% PER
  1M: -90dBm@8% PER
• Wireless Modes: Range Extender, Ap Mode
• Wireless Functions:
  WMM(Wi-Fi Multimedia)
  Wireless MAC Address Filtering
  Enable/Disable Wireless Radio
  Enable/Disable Wireless SSID Broadcast
  AP Isolation
  Wireless Statistic
• Wireless Security: 64/128/152-bit WEP WPA / WPA2 WPA-PSK / WPA2-PSK

OTHERS SPECIFICATIONS

• Certification: CE, FCC, RoHS

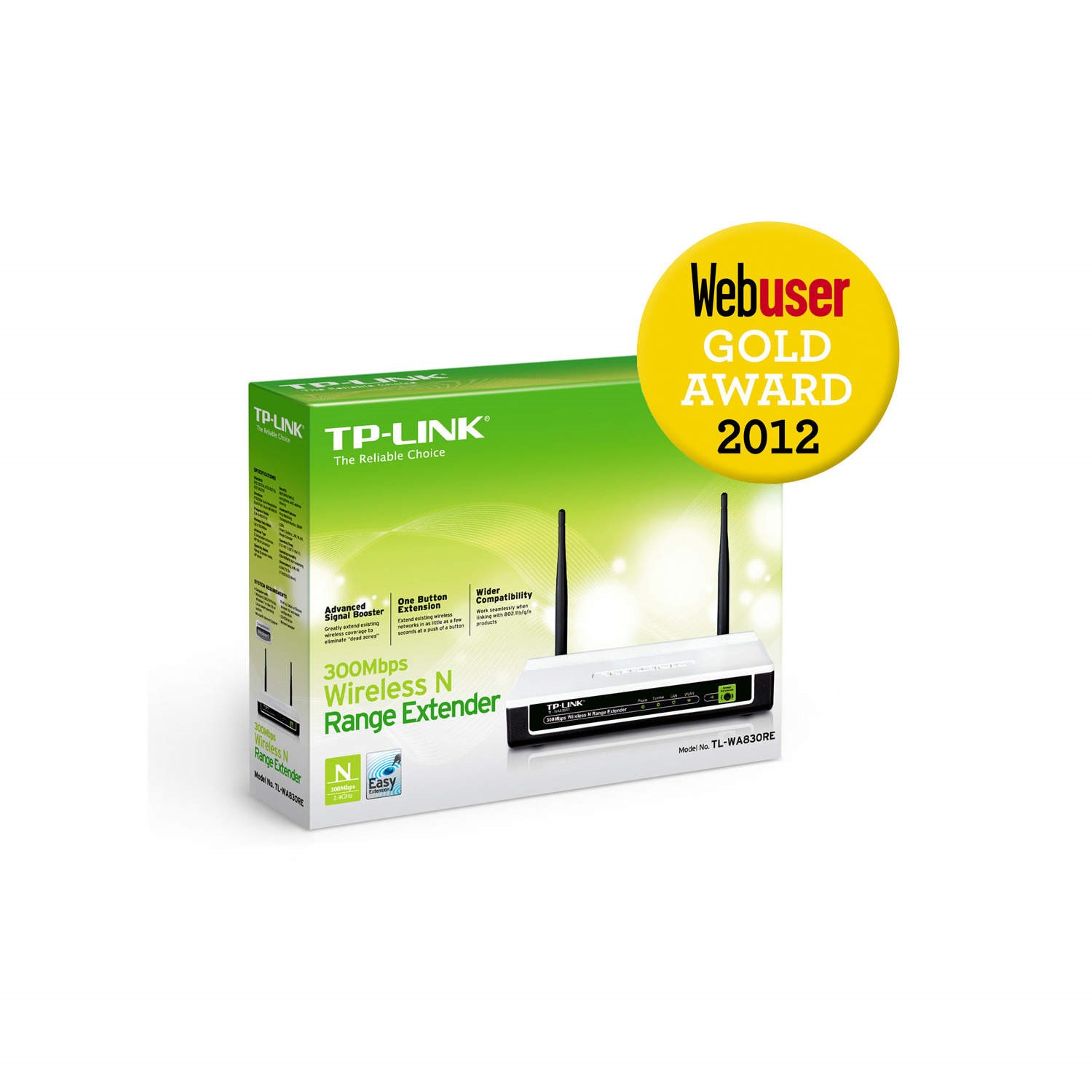

• Package Contents:
  Wireless N Range Extender TL-WA830RE
  2 Detachable Omni directional antennas
  RJ-45 Ethernet Cable
  Power supply unit
  Resource CD
  Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC OS, NetWare, UNIX or Linux.
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC ~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
