Dlink 16port 10/100 nway unmgd DES-1016D/B

Quickfind code: 659399
Was: £41.97     You save: £10.33
£31.64 inc. VAT :£37.97

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Model No. - 1016D
  • Switch type - 16-Port 10/100/1000 Unmanaged Gigabit Desktop Switch
More Info » Tech Spec »

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0844 412 4570 or...

Request a callback »

click
Valid promotions & discounts

Price match: We constantly check our prices to give you the best deal possible. Call us if you see it cheaper elsewhere.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

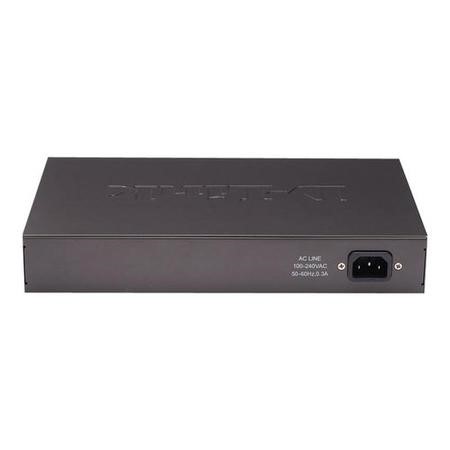

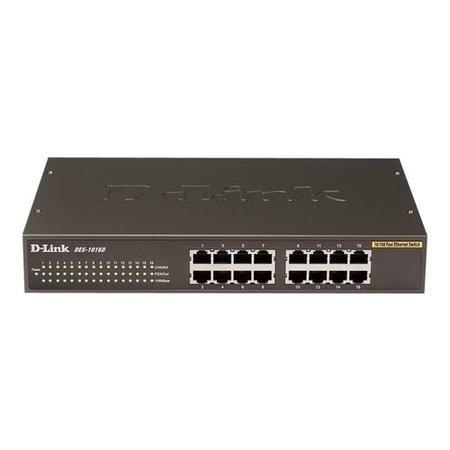

D-Link 16-port 10/100 Unmanaged Desktop Switch

Description

The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance whilst providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

The switch provides 16 ports, all supporting the NWay standard. The ports negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex. In full duplex mode, the switch's embedded flow control provides a means to protect users against possible data loss during transmission on the network. When connected to a LAN adapter (in a server PC) that supports flow control, the switch sends signals to the PC regarding buffer overrun during peak usage periods. The PC then delays transmission until the switch is ready again to accept new data.



Tech Spec

Data transmission
MAC address table 8000 entries
Maximum data transfer rate 0.2 Gbit/s
Store-and-forward
Switching capacity 3.2 Gbit/s
Design
Case design freestanding
Certification FCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL
Colour of product Black
LED indicators Activity,Link,Power,power
Rack mounting
Management features
Quality of Service (QoS) support
Switch layer -
Switch type Unmanaged
Networking
10G support
Auto MDI/MDI-X
Auto-sensing
Flow control support
Full duplex
Networking standards IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Performance
Internal memory 2 MB
Mean time between failures (MTBF) 2266559 h
Stackable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Copper ethernet cabling technology 100BASE-TX,10BASE-T
SFP ports quantity 0
SFP+ ports quantity 0
Power
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Energy Star certified -
Power consumption (typical) 2.89 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support
Protocols
Supported network protocols CSMA/CD
Operational conditions
Heat dissipation 9.86 BTU/h
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -10 - 70 °C
Weight & dimensions
Depth 125.8 mm
Width 280 mm
