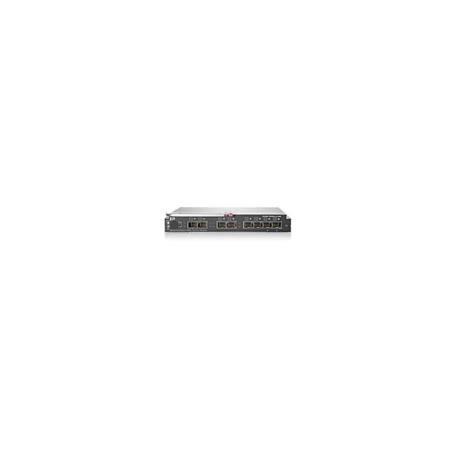

HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem

SKU: 571956-B21 Quickfind Code: 632352
inc. VAT :£20284.97
Why buy me

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »


HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most converged and flexible way to connect virtualized server blades to any data or storage network. VC FlexFabric modules eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to LANs and SANs. Using Flex-10 technology with Fibre Channel over Ethernet and Accelerated iSCSI, these modules converge traffic over high speed 10 Gb connections to servers with HP FlexFabric Adapters. Each module provides 4 adjustable connections (3 data and 1 storage or all data) to each 10 Gb server port. VC FlexFabric modules avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables & software licenses. Also, Virtual Connect wire-once connection management is built-in enabling server adds, moves & replacement in minutes instead of days.

Data transmission
MAC address table - entries
Maximum data transfer rate 10 Gbit/s
Supported data transfer rates -
Switching capacity - Gbit/s
Colour of product Black
Rack mounting -
Management features
Switch layer -
Switch type Managed
Web-based management
10G support
Networking standards -
VLAN support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24, -, 24
Energy Star certified -
Power consumption (typical) - W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support -
Management protocols SNMP v1, v2
Other features
Expansion slots 8 x SFP+
Supported protocols FlexFabric
Link Aggregation
Technical features CLI
Virtual Connect Manager GUI
System Requirements
Compatibility HP ProLiant / Integrity
Weight & dimensions
Depth 192.5 mm
Height 267.9 mm
Weight 1270 g
Width 28 mm
