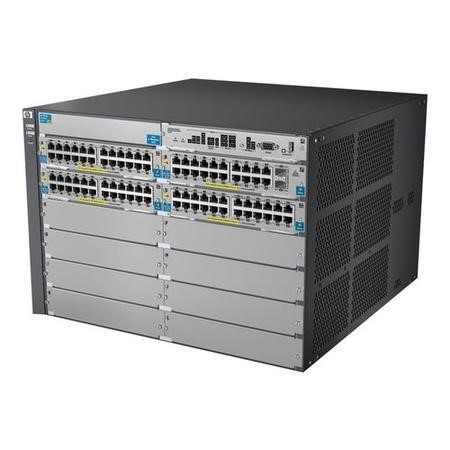

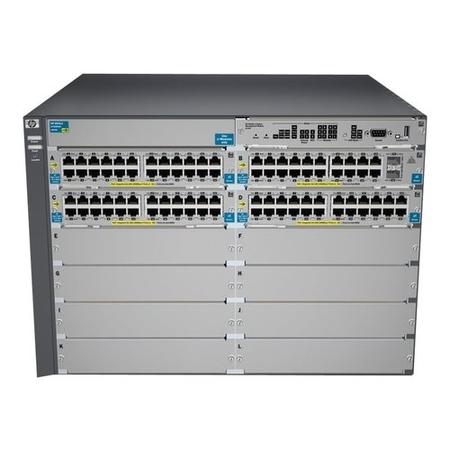

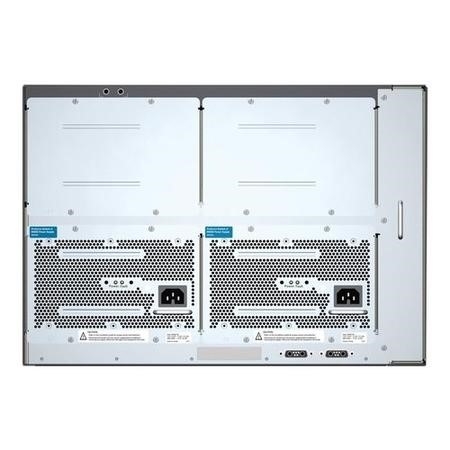

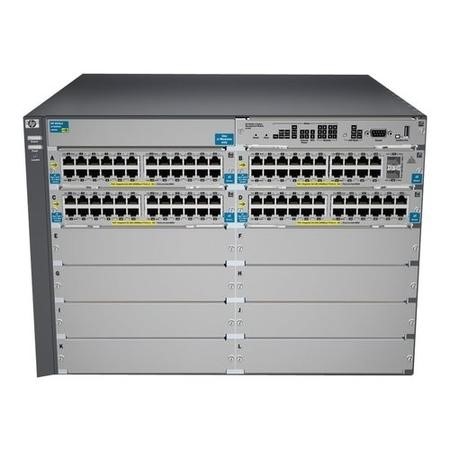

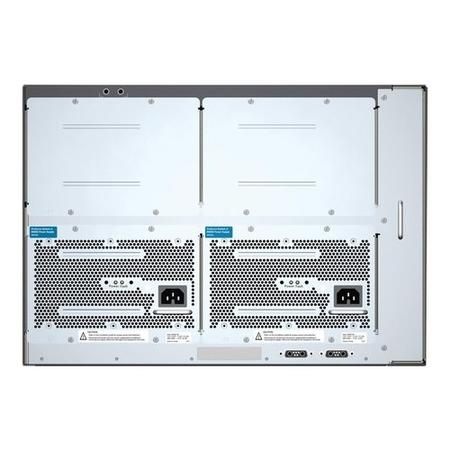

  • Hewlett Packard E5412-92G-POE/2XG V2 ZL SWCH PM SW J9532A

    Quickfind code: 585747
    £8699.98 inc. VAT :£10439.98
    or £356.66 a month more info

    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    click to close
    Why buy me

    The HP E5400 zl Switch Series consists of advanced intelligent switches in the HP E-Series product-line. The E5400 zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as quality of service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet and 10 Gigabit Ethernet interfaces, choice of PoE+ Non-PoE, integrated layer 3 features and HP allianceONE Solutions, the E5400 zl switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

    More Info » Tech Spec »

    Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0844 412 4570 or...

    Request a callback »

    click
    Valid promotions & discounts

    Great Value: We constantly check our prices to give you the best deal possible.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

    click

    Popular Bundles

    Product Information

    The HP E5400 zl Switch Series consists of advanced intelligent switches in the HP E-Series product-line. The E5400 zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as quality of service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet and 10 Gigabit Ethernet interfaces, choice of PoE+ & Non-PoE, integrated layer 3 features and HP allianceONE Solutions, the E5400 zl switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.



    Tech Spec

    Data transmission
    Jumbo Frames support
    MAC address table 64000 entries
    Maximum data transfer rate 1 Gbit/s
    Number of queues 8
    Number of trunks 60
    Number of VLANs 2048
    Supported data transfer rates 10/100 Mbps
    Switching capacity 758.4 Gbit/s
    Throughput 564.2ml pps Mpps
    Design
    Electromagnetic compatibility FCC, VCCI, EN/CISPR
    Safety CSA, UL, IEC, EN
    Management features
    MIB support MLDv1/v2, OSPFv2/v3, RIPv2, RMONv2, SMON
    Multicast support
    Quality of Service (QoS) support
    Switch layer L3
    Switch type Managed
    System event log
    Web-based management
    Networking
    10G support
    Auto MDI/MDI-X
    Broadcast storm control
    DHCP client
    DHCP server
    Flow control support
    Full duplex
    IGMP snooping
    IP routing
    Link aggregation
    Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
    Port mirroring
    Rate limiting
    Routing entries 10000
    Spanning tree protocol
    Performance
    Memory type DDR
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 92
    Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
    Power
    Input voltage 100 - 240 V
    Number of power supply units 2
    Power consumption (typical) 312 W
    Power Over Ethernet (PoE)
    Power over Ethernet (PoE) Support
    Protocols
    Management protocols SNMPv1/v2c/v3, LLDP, RMON, XRMON, sFlow
    Supported network protocols IPv6, SSHv6, SNTP, IGMPv3
    Security
    Access Control List (ACL)
    MAC address filtering
    Security algorithms 802.1x RADIUS,SSH,SSL/TLS
    SSH/SSL support
    Static port security
    Operational conditions
    Heat dissipation 7400 BTU/h
    Operating altitude 0 - 3000 m
    Operating relative humidity (H-H) 15 - 95 %
    Operating temperature (T-T) 0 - 55 °C
    Operating temperature (T-T) 32 - 131 °F
    Storage relative humidity (H-H) 15 - 95 %
    Storage temperature (T-T) -40 - 70 °C
    Other features
    Acoustic pressure emissions 57.5 dB
    Connectivity Technology Wired
    Dimensions (W x D x H) 17.5 x 17.75 x 12.1 "
    Dimensions (WxDxH) 450.9 x 444.5 x 307.3 mm
    Electromagnetic immunity EN, IEC
    Input frequency 50/60 Hz
    Latency 3.7µs/2.1µs
    Mounting EIA
    Networking features Gigabit Ethernet
    Power supply 1500 W
    Weight 75.36 lbs
    Wi-Fi
    Weight & dimensions
    Weight 34180 g
