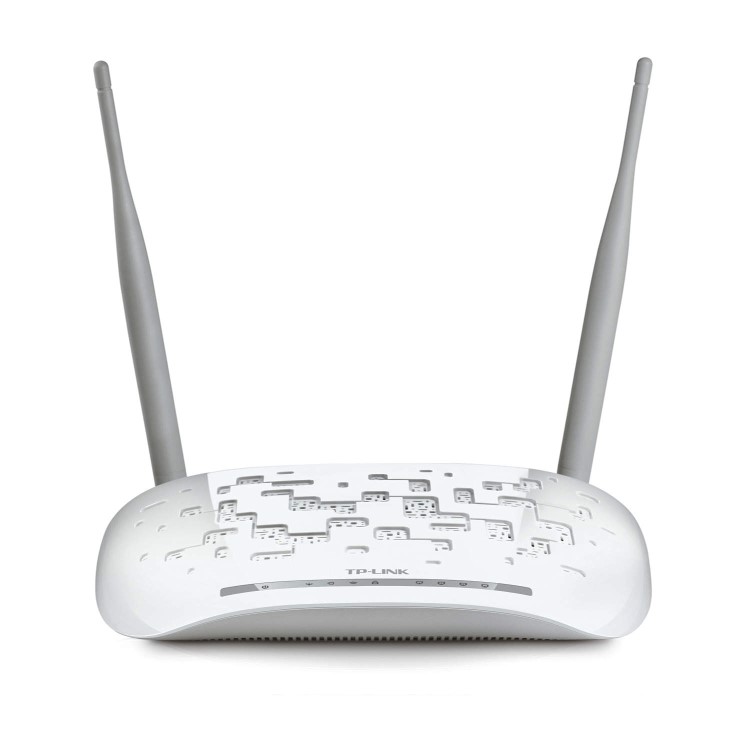

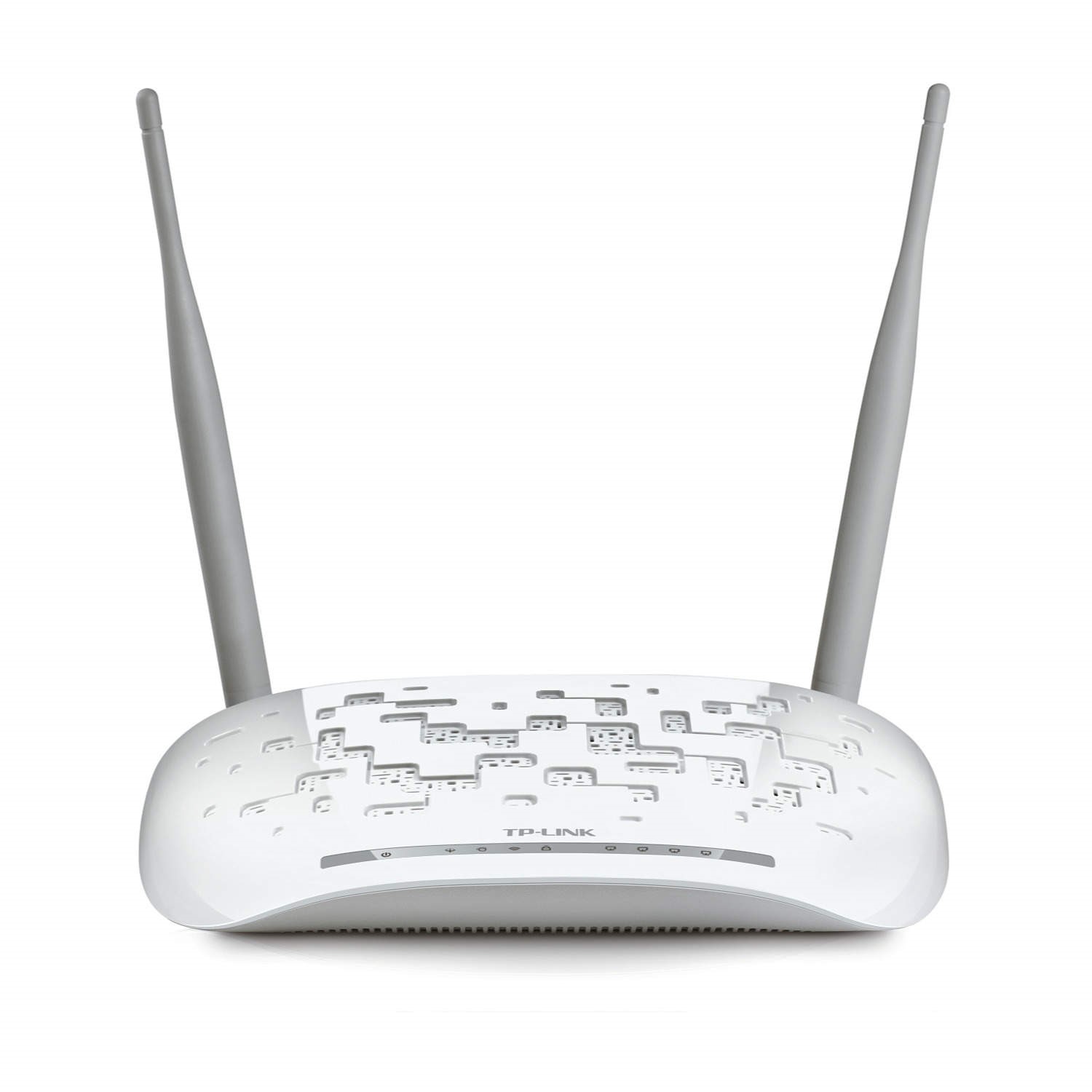

TP-Link TD-W8961N 300Mbps Wireless N ADSL2 Modem Router

TP-Link - 300Mbps Wireless N ADSL2+ Modem Router - TD-W8961ND

The TD-W8961ND Wireless N ADSL2+ Modem Router is an All-in-One device that combines the functions of a shigh speed ADSL modem, a 4-Port 10/100Mbps NAT router and a wireless access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the TD-W8961ND brings with it much higher speed than dial-up connections. Complying with the IEEE 802.11n standard, users will get up to 15X the speed and 5X the range of conventional 11g products. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming, not possible with 11g products, from anywhere in their entire homes or even in their backyards!

Features:

• High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Easy Setup Assistant with multi-language support provides a quick & hassle free installation
• SPI and NAT firewall protects end-user devices from potential attacks from the Internet
• WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
• Easy one-touch WPA wireless security encryption with the WPS button
• Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
• QoS enables smooth IPTV streaming and lag-free online gaming
• Port VLAN binds specific LAN ports and PVCs for differential services
• Annex M doubles the upstream data rate
• Auto-reconnect keeps user online indefinitely
• Backward compatible with 802.11b/g products

HARDWARE FEATURES

• Interface:
  4 10/100Mbps RJ45 Ports
  1 RJ11 Port
• Button:
  1 Power On/Off Switch
  1 WPS Button
  1 Wi-Fi On/Off Button
• External Power Supply: 9VDC/0.85A
• IEEE Standards: IEEE 802.3, 802.3u
• ADSL Standards:
  Full-rate ANSI T1.413 Issue 2,
  ITU-T G.992.1(G.DMT),
  ITU-T G.992.2(G.Lite)
  ITU-T G.994.1 (G.hs),
  ITU-T G.995.1
• ADSL2 Standards:
  ITU-T G.992.3 (G.dmt.bis),
  ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions ( W x D x H ): 7.7 x 5.3 x 1.5 in. (195 x 135 x 39mm)
• Antenna Type: Omni directional, Detachable, Reverse SMA
• Antenna Gain:2x3dBi

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, 802.11g, 802.11b
• Frequency: 2.400-2.4835GHz
• EIRP: <20dBm(EIRP)
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES

• Quality of Service: QoS Remarking based on IPP/ToS, DSCP and 802.1p
• Port Forwarding: Virtual server, DMZ, ACL(Access Control List)
• VPN Pass-Through:PPTP, L2TP, IPSec Pass-through
• ATM/PPP Protocols:
  ATM Forum UNI3.1/4.0,
  PPP over ATM (RFC 2364),
  PPP over Ethernet (RFC2516),
  IPoA (RFC1577/2225),
  PVC - Up to 8 PVCs,
• Advanced Features:
  Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
  Dynamic Host Configuration Protocol (DHCP), DHCP relay;
  Network Address Translation (NAT);
  PVC/Ethernet Port Mapping
  VLAN, 802.1P,
  Static Routing, RIP v1/v2 (optional);
  DNS Relay, DDNS,
  IGMP snooping V1/2
  IGMP Multicast,
  UPnP
• Security:
  NAT Firewall,
  SPI Firewall, MAC / IP / Packet / Application / URL Filtering,
  Denial of Service(DoS),
  SYN Flooding, Ping of Death
• Management:
  Web Based Configuration(HTTP),
  Remote management,
  Telnet management,
  Command Line Interface,
  SSL for TR-069,
  SNMP v1/2c,
  SNMP over EOC,
  Web Based Firmware Upgrade,
  CWMP(TR-069),
  Diagnostic Tools

OTHER SPECIFICATIONS

• Certification: CE, FCC, RoHS
• Package Contents:
  TD-W8961ND
  External Splitter
  RJ-11 Telephone Cable
  RJ-45 Ethernet Cable
  Quick Installation Guide
  Resource CD
  Power Adapter
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
