TP-Link Wi-Fi N300 ADSL2 Modem Broadcom Router

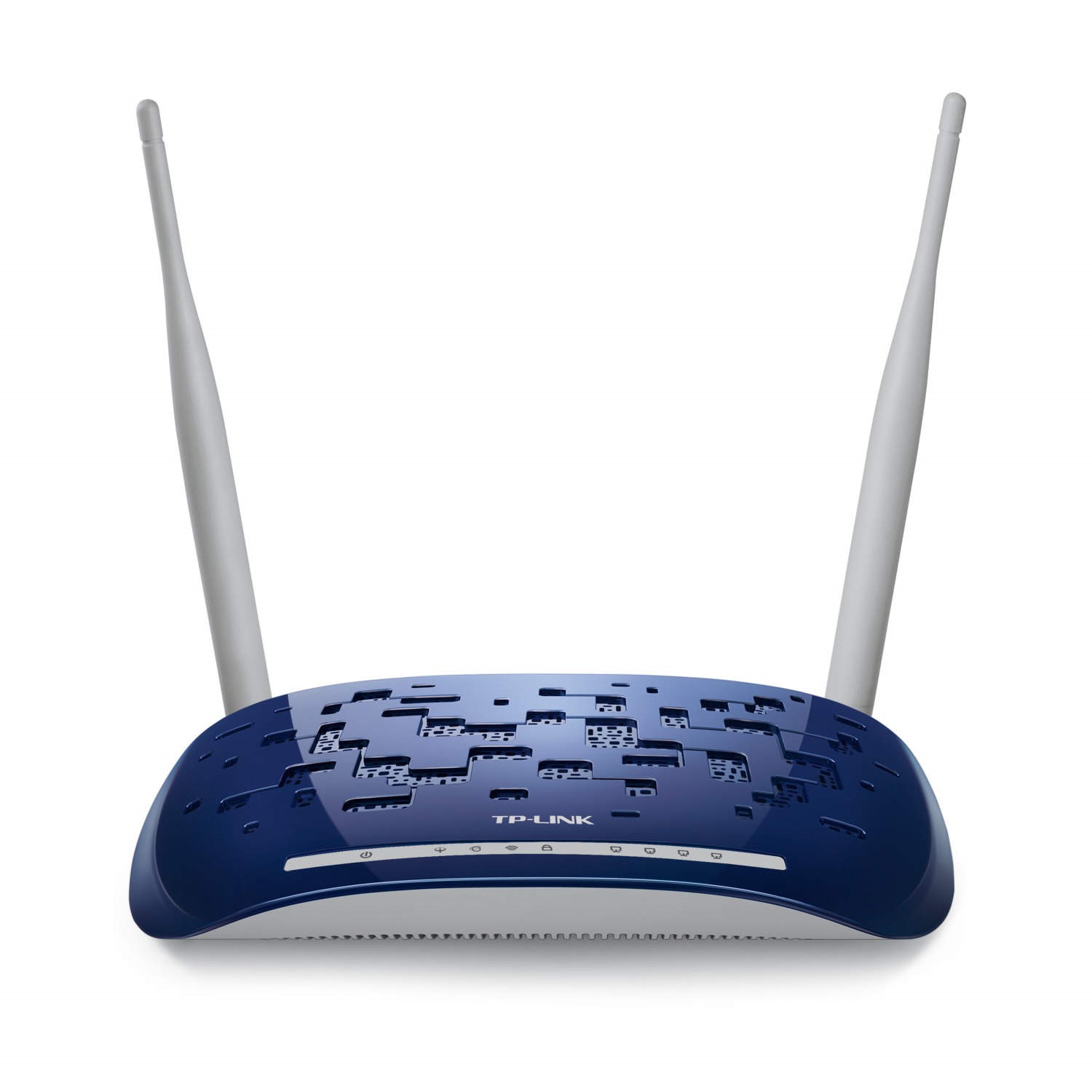

300Mbps Wireless N ADSL2+ Modem Router - TD-W8960N

300Mbps Wireless N ADSL2+ Modem Router TD-W8960N is a high performance modem router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. It combines the function of a high-speed DSL modem, a 4-Port 10/100Mbps NAT router and a wireless N access point. With the TD-W8960N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers.

Features

• High speed DSL modem, NAT router and wireless access point in one device provides one-stop networking solution
• Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like online gaming , VoIP and even the HD video streaming
• Support up to 10 IPSec VPN tunnels simultaneously
• QoS enables smooth VoIP/IPTV streaming and lag-free online gaming
• WPA/WPA2 encryptions provide your network with active defence against security threats
• SPI and NAT firewall protects end-user devices from potential attacks across the Internet
• Easy Setup Assistant provides quick & hassle free installation
• Supports IP address filtering, MAC address filtering and parental control ,DHCP, UPnP
• Port-mapping binds specific LAN ports and PVCs for differential services
• Annex M allows for doubling the upstream data rate to 3.5Mbps
• Auto-reconnect keeps you online indefinitely

HARDWARE FEATURES

• Interface:
  4 10/100Mbps RJ45 Ports
  1 RJ11 Port
• Button:
  1 Power On/Off Switch
  1 QSS Button
• External Power Supply: 12VDC/1A
• IEEE Standards: IEEE 802.3, 802.3u
• ADSL Standards:  Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1
• ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Dimensions ( W x D x H ): 7.9*5.5*1.1 in.(200*140*28 mm)
• Antenna Type: Omni directional, Detachable, Reverse SMA
• Antenna Gain: 2x3dBi

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, 802.11g, 802.11b
• Frequency: 2.400-2.4835GHz
• EIRP: <20dBm(EIRP)
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2, Wireless MAC Filtering

SOFTWARE FEATURES

• Quality of Service: QoS Remarking based on IPP/ToS, DSCP and 802.1p
• Port Forwarding: Virtual server, DMZ, ACL(Access Control List)
• VPN Pass-Through: PPTP, L2TP, IPSec Pass-through
• ATM/PPP Protocols:
  ATM Forum UNI3.1/4.0,
  PPP over ATM (RFC 2364),
  PPP over Ethernet (RFC2516),
  IPoA (RFC1577/2225),
  PVC - Up to 8 PVCs
• Advanced Features: Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP reservation; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP
• Security: NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
• Management: Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools

OTHER SPECIFICATIONS

• Certification: CE, FCC, RoHS
• Package Contents:
  TD-W8960N
  External Splitter
  RJ-11 Telephone Cable
  RJ-45 Ethernet Cable
  Quick Installation Guide
  Resource CD
  Power Adapter
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC ~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
