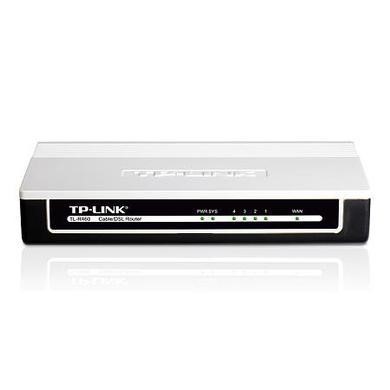

TP-Link TL-R460 Cable/DSL Router for Home and Small Office with Built-in 4-Port Switch

TP-Link - 4-Port Cable/DSL Router - TL-R460

Create a wired network in your home using the TP-LINK 4-Port Cable/DSL Router (TL-R460). Connect this Wired Router to a broadband modem and share your high-speed Internet access, check email, share files, and enjoy online gaming. With the Easy Setup Assistant, you can easily build a wired network and share your high speed internet connection with all the PCs connected to surf the internet, chat online and check mails.

Features:

• Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, PPTP, L2TP, Dual Access and Bigpond Internet access
• Connecting Internet on demand and disconnecting when idle for PPPoE
• Supports MAC Address Clone
• Flexible control features support access control based on time of day, parents and network administrators can establish restricted access policies for children or staffs
• IP-based QoS guarantees the performance of voice or video streaming
• Easy Setup Assistant provides hassle free installation
• Built-in firewall supporting IP address filtering, Domain Name filtering, MAC address filtering and IP & MAC binding to protect your network against attacks
• Built-in NAT and DHCP server supporting static IP address distributing
• NAT firewall with Denial of Service (DoS) attack protection to safeguard your network
• Ignores Ping packets from WAN or LAN ports
• Supports Virtual Server, Special Application, DMZ host and UPnP
• Supports Dynamic DNS, Static Routing, Flow Statistics, VPN pass-through
• Supports firmware upgrade, Remote and Web management

HARDWARE FEATURES:

• Standards and Protocols:
  IEEE 802.3, 802.3u, 802.3x,
  TCP/IP, DHCP, ICMP, NAT, PPPoE
• Interface:
  1 10/100Mbps WAN Ports
  4 10/100Mbps LAN Ports
• Network Media:
  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
• Button: Reset Button
• External Power Supply: 9VDC / 0.6A
• Dimensions (W X D X H): 6.5 x 4.3 x 1.1 in. (165 x 108 x 28 mm)
• Power Consumption: Max. 1.97W (with power adapter)

SOFTWARE FEATURES:

• WAN type: PPPoE, Dynamic IP, Static IP, PPTP, L2TP, Dual Access and Bigpond Cable
• Basic Function:
  DHCP Server/Client
  MAC Address Modify/Clone
  VPN Pass-through
  NAPT & NTP
  DDNS
• DHCP: DHCP Server/Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ Host
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec (ESP)
• Firewall Security:
  IP Address Filtering
  MAC Address Filtering
  Domain Name Filtering
  IP/MAC Address Binding
  Ignore Ping Packet From WAN
  DoS Protection
• Advanced Features: IP-based Bandwith Control
• Management:
  Remote Management
  Configuration Backup/Restore
  Web-based Firmware Upgradeable
• System Function:
  Traffic Statistics
  NTP Synchronize
  System Log

OTHER SPECIFICATIONS:

• Certification: CE, FCC, RoHS
• Package Contents:
  TL-R460
  Power adapter
  Resource CD
  Quick Installation Guide
  Rj-45 Ethernet cable
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
