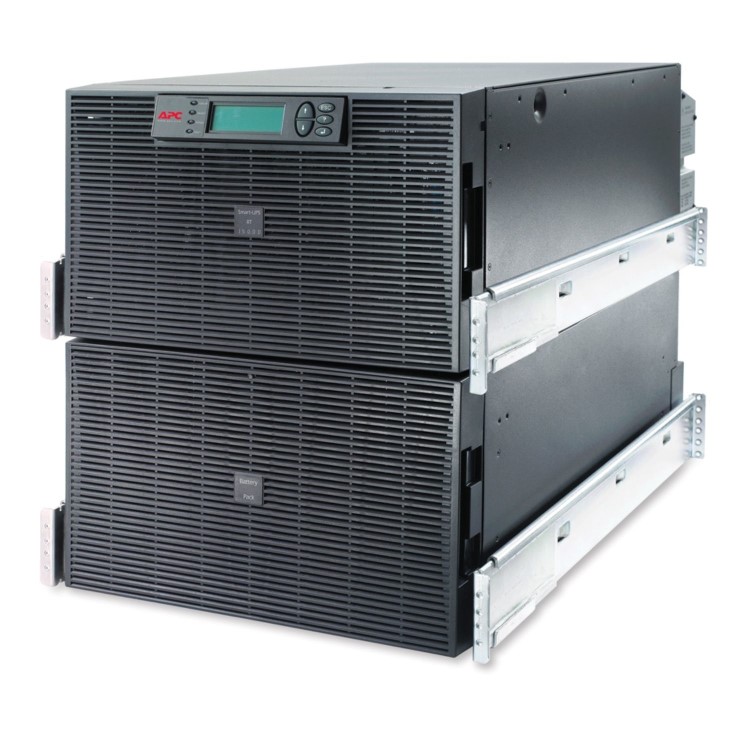

APC RT UPS - 12 kW - 15000 VA Smart UPS

SKU: SURT15KRMXLI Quickfind Code: 480419
APC RT UPS - 12 kW - 15000 VA Smart UPS
APC RT UPS - 12 kW - 15000 VA Smart UPS
APC RT UPS - 12 kW - 15000 VA Smart UPS
Product Information Sheet
You save: £400.00
£9587.48
inc. VAT : £11504.97

Why buy me

  • Battery: 5year(s)
  • Product line: APC Smart-UPS RT
  • AC 220/230/240V
  • Power Capacity 15000VA
click

Smart-UPS SURT15KRMXLI is part of a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications.

The Smart-UPS SURT15KRMXLI capacity is 12kW 15kVA and the RT UPS's are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories.

Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.

Rack/Tower Convertible
Ensures integration in various environments.

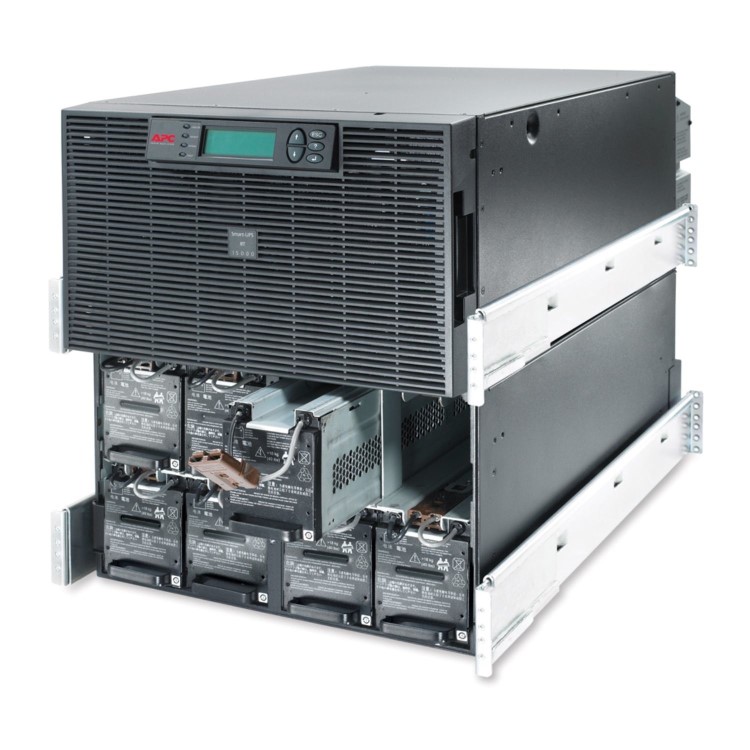

Hot-Swappable/User-Replaceable Batteries
Ensures continuous operation of the load even when the batteries are being replaced.

Double-Conversion Online
Provides tight voltage and frequency regulation and zero transfer time for reactive loads (machinery, lab equipment, etc.)

Frequency And Voltage Regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

SmartSlot
For the attachment of Network Management Cards.

Serial Connectivity
Enables quick and easy configuration of the UPS.

Push Button Circuit Breaker
Enables quick recovery from overloads.

Scalable Runtime
Allows additional runtime to be quickly added as needed.



Battery
Battery recharge time 2.5 h
Battery Technology Sealed Lead Acid (VRLA)
Replacement battery cartridge RBC44
Typical backup time at full load 8.3 min
Typical backup time at half load 22.3 min

Design
Colour of product Black

Performance
Audible alarm(s)
Noise level 50 dB

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Number of output IEC jumpers 2
Serial ports quantity 1

Power
Emergency Power Off (EPO)
Output power 12000 W
Output power capacity 15000 VA
Power supply input frequency 40/70 Hz

Warranty
Warranty -

Certificates
Certification EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI

Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 45 °C

Other features
Dimensions (WxDxH) 432 x 773 x 533 mm
Interface DB-9 RS-232, RJ-45 10/100 Base-T,Smart-Slot
Networking features 10/100 BASE-T
Nominal input voltage 230 V
Nominal output voltage 230 V

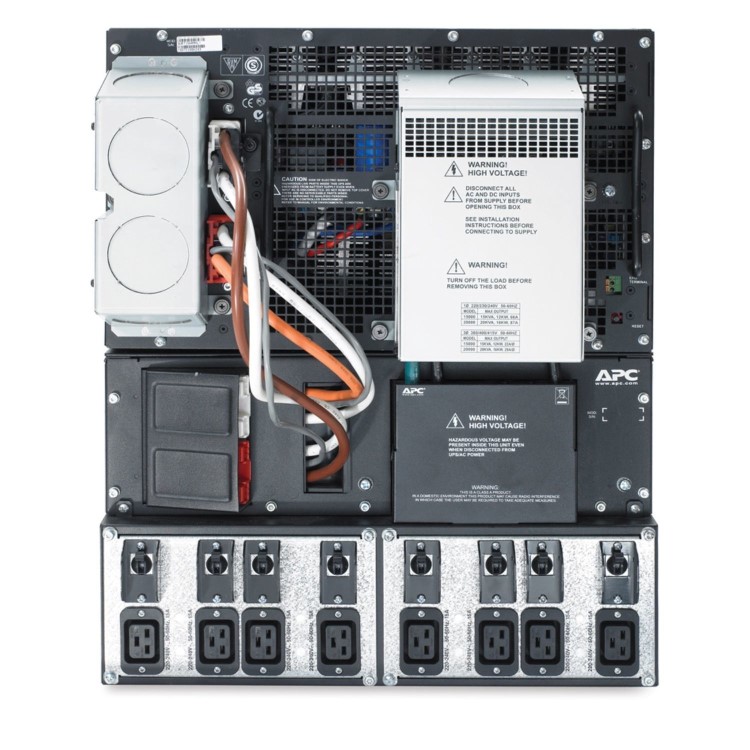

Output connections (1) Hard Wire 3-wire (H N + G),
(1) Hard Wire 5-wire (3PH + N + G),
(8) IEC 320 C19
Output voltage note 230/240 V
Package dimensions (WxDxH) 610 x 1003 x 990 mm
Quantity per pallet 1 pc(s)

Weight & dimensions
Package weight 314090 g
Weight 247730 g
