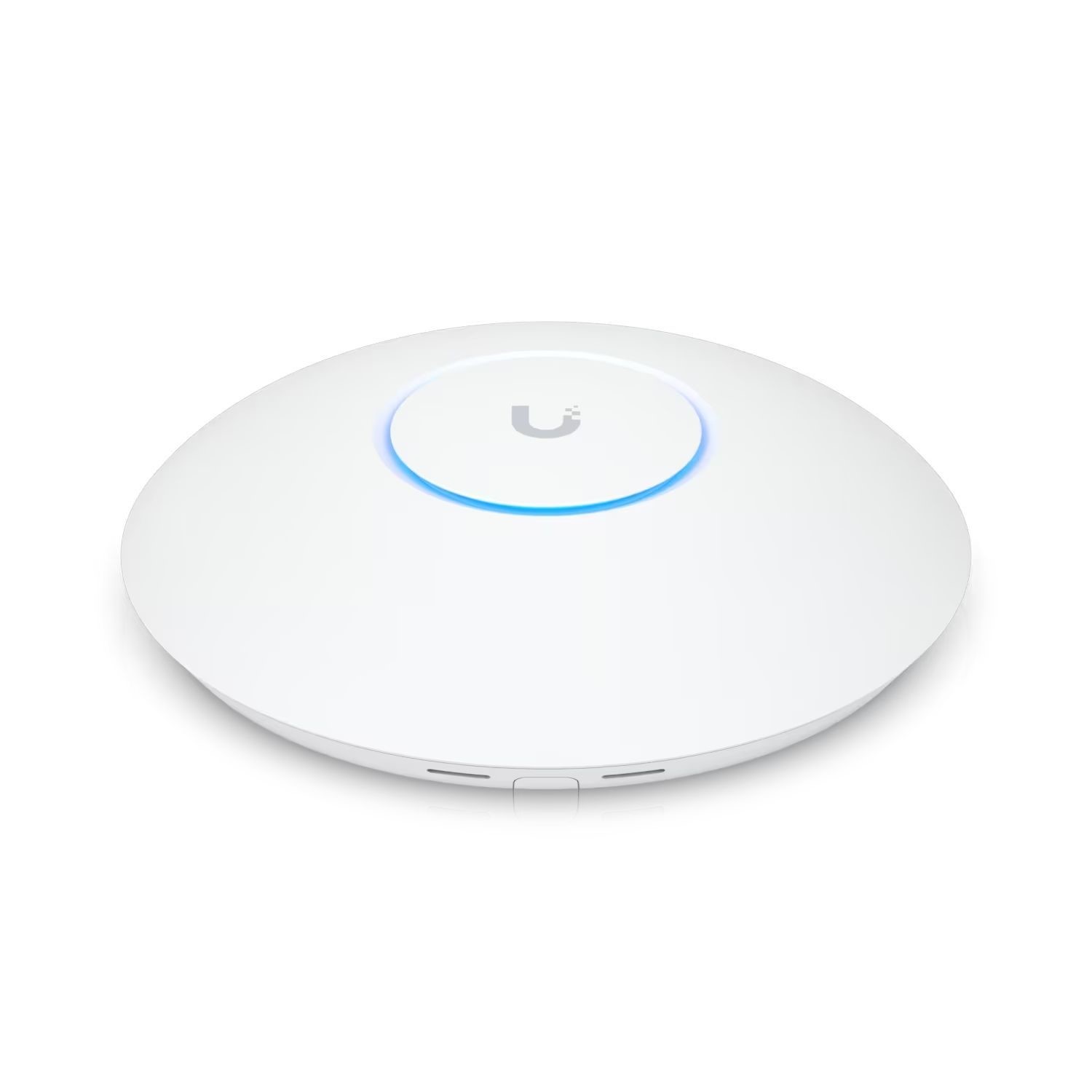

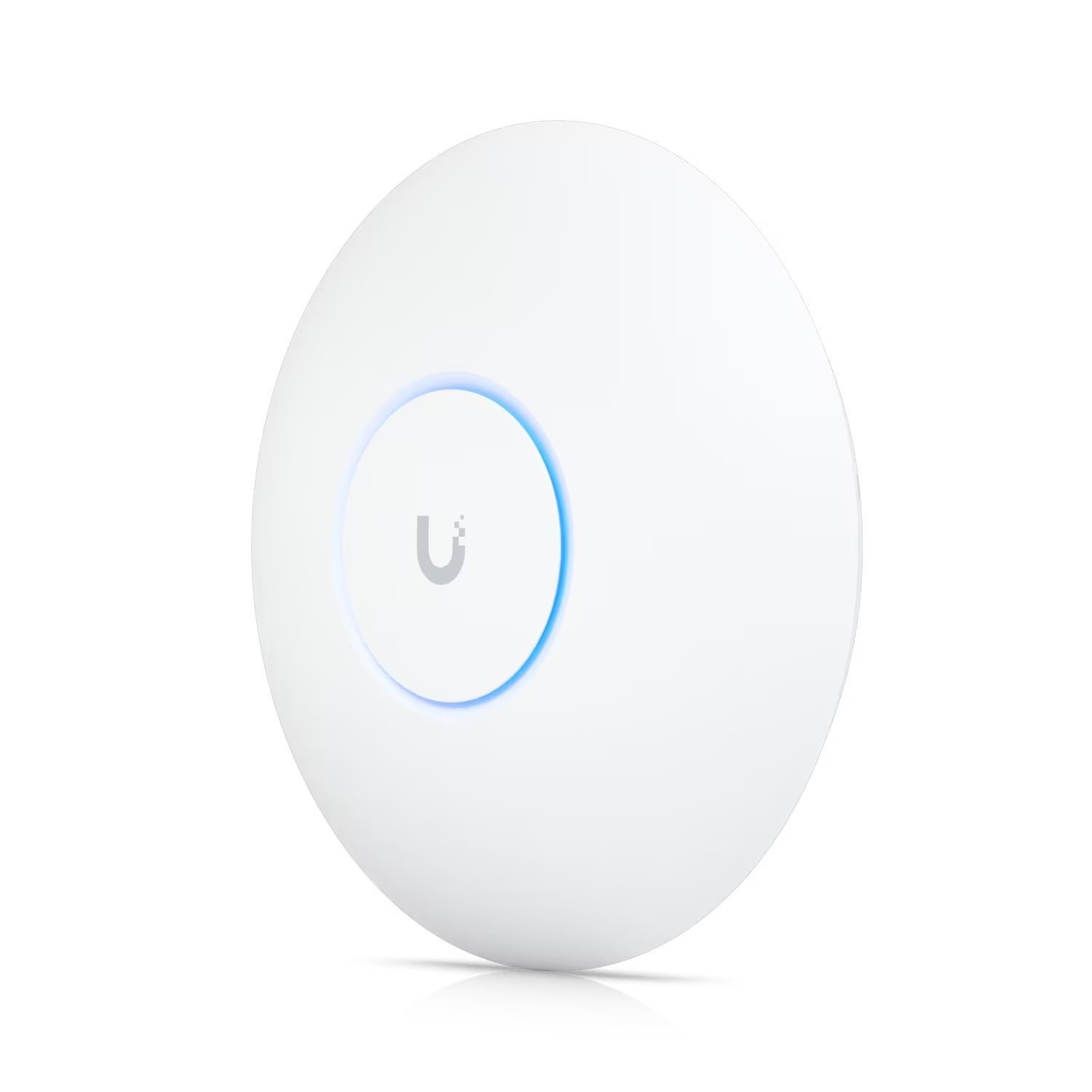

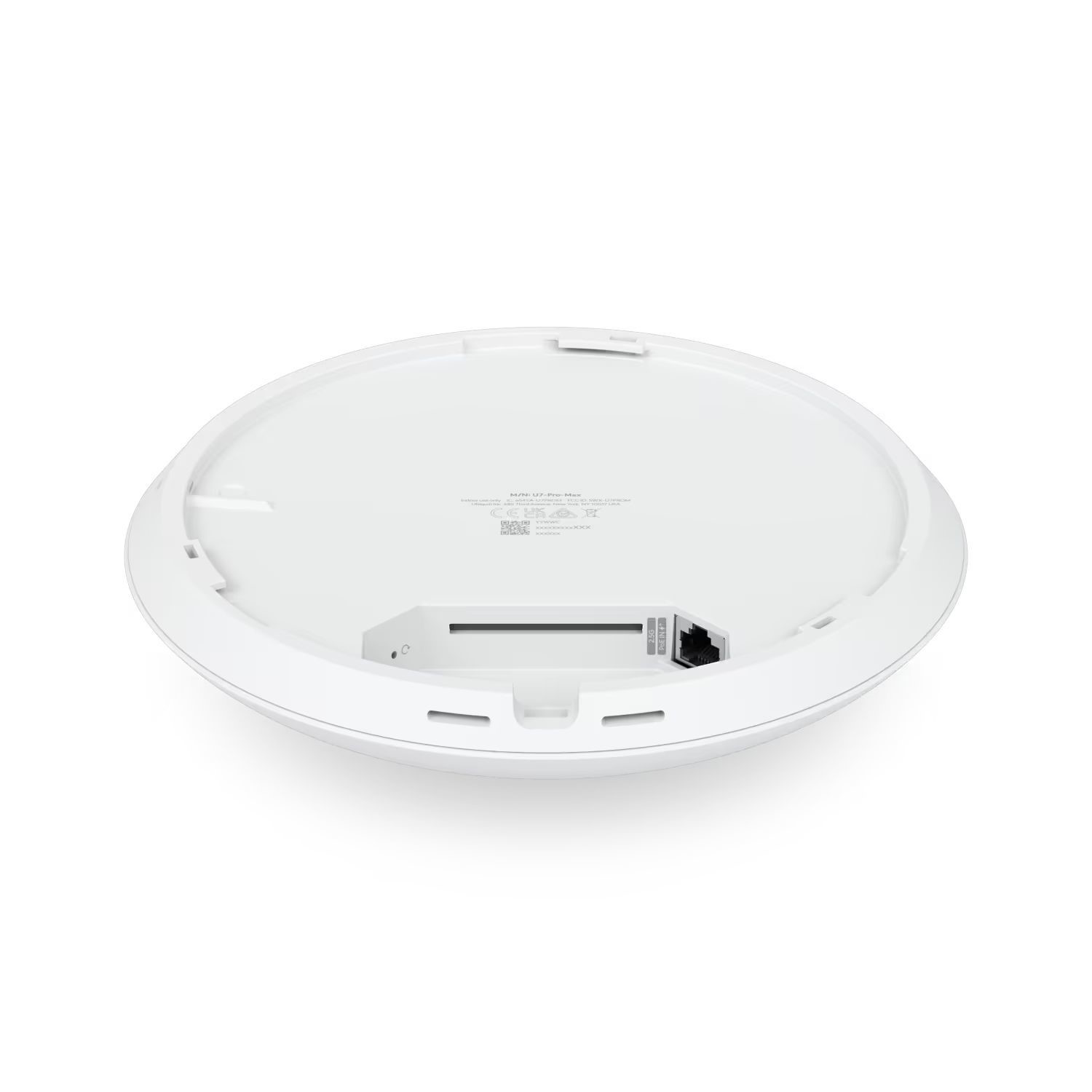

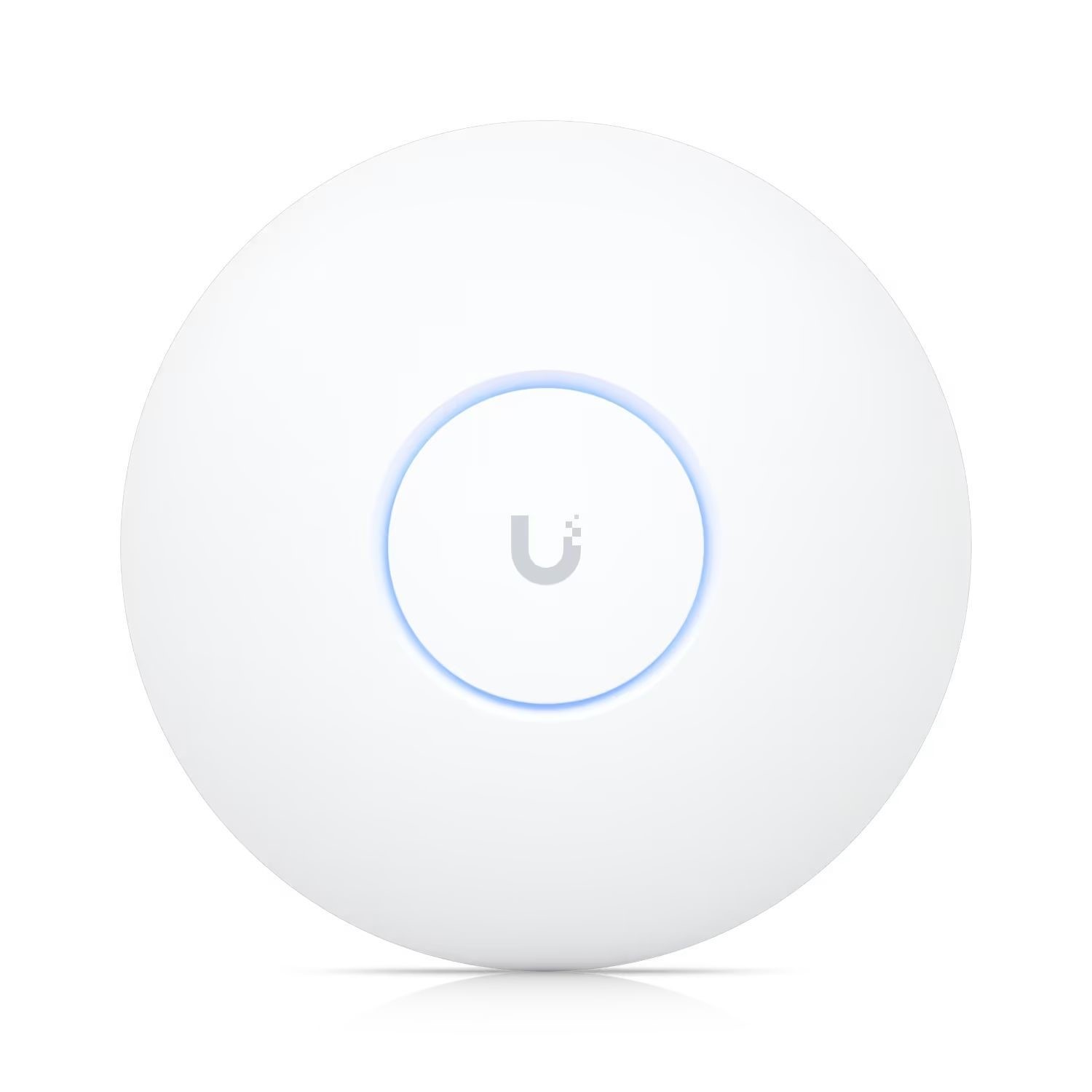

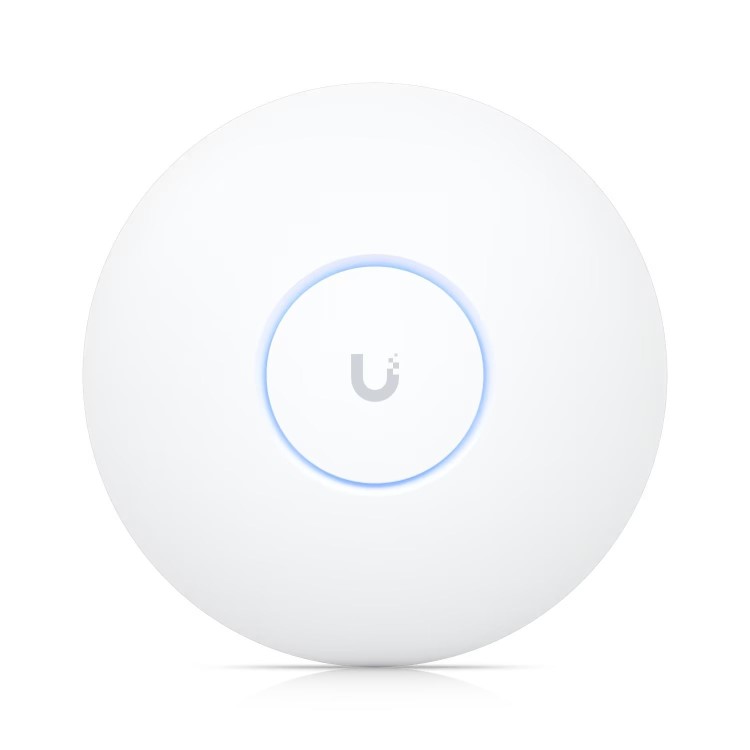

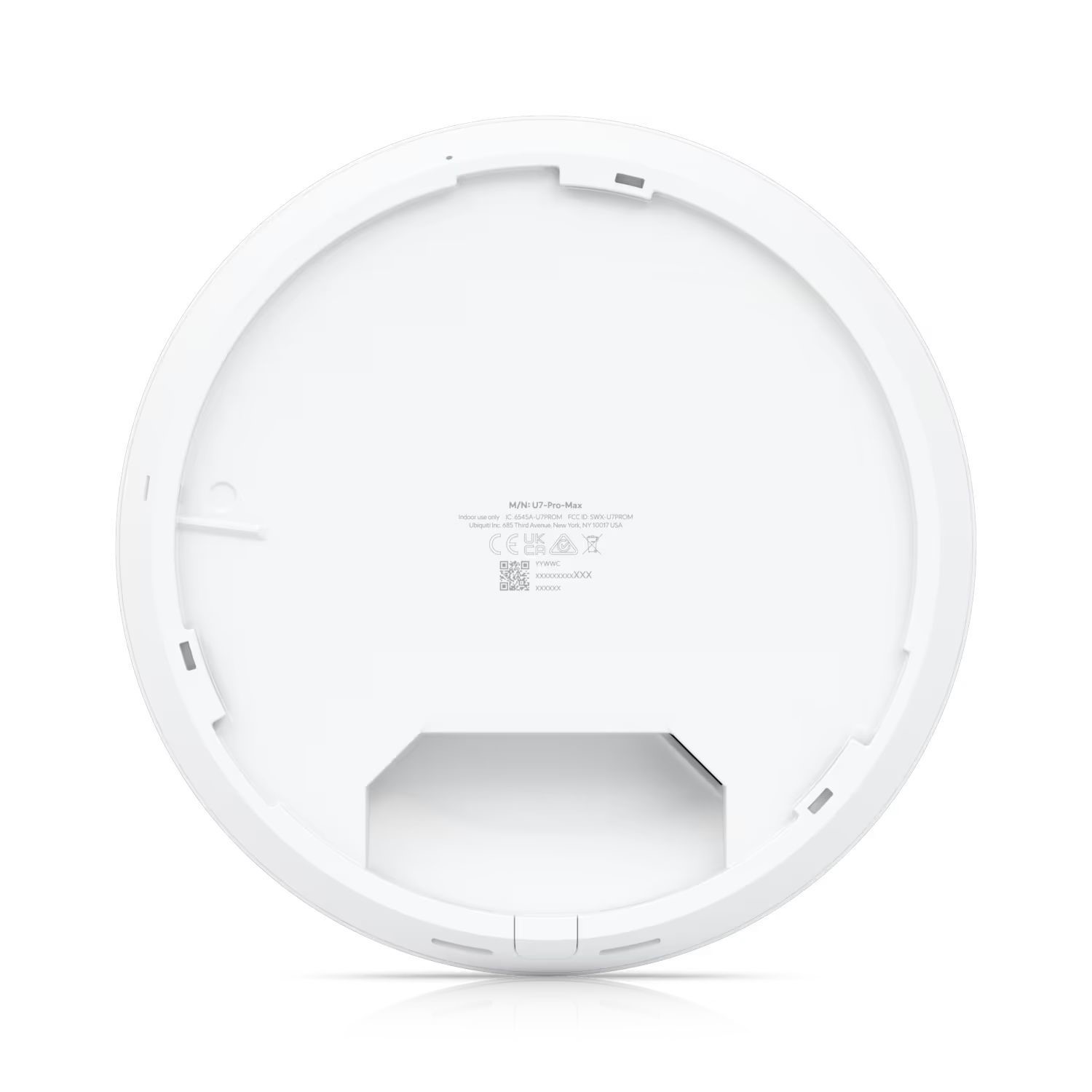

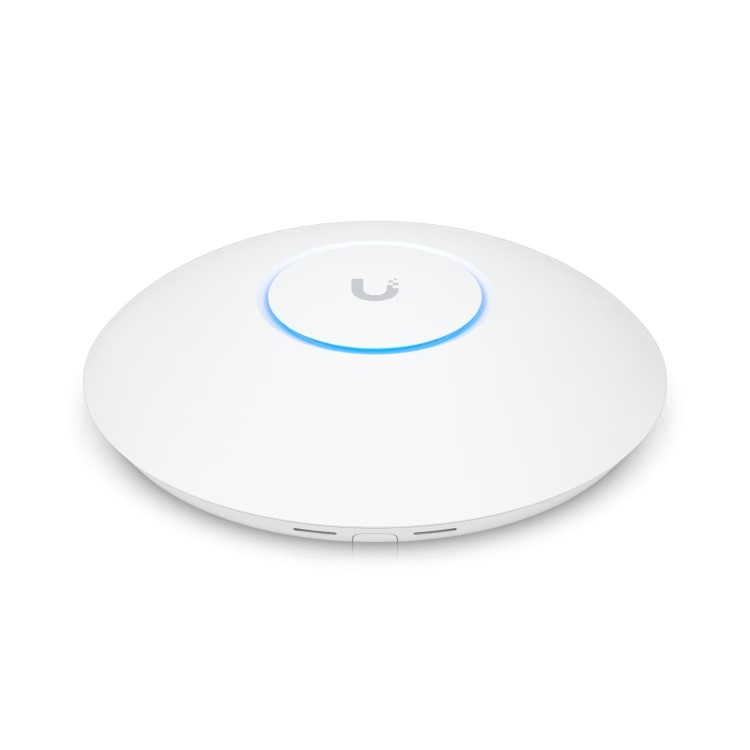

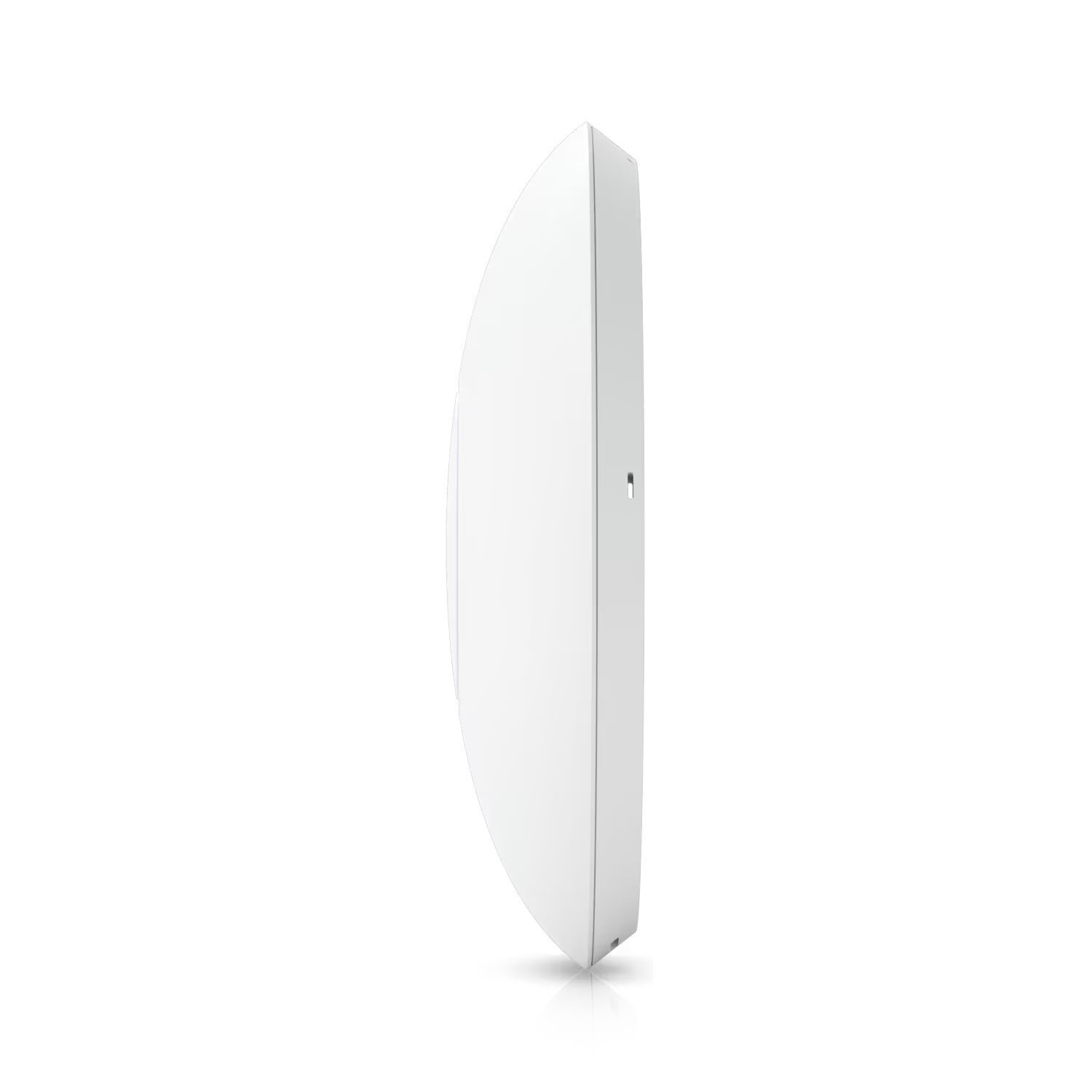

Ubiquiti U7-Pro-Max UniFi Tri-Band Wi-Fi 7 Wireless Access Point

The Ubiquiti UniFi U7 Pro Max is a ceiling-mounted access point that leverages the latest WiFi 7 (802.11be) technology to deliver exceptional wireless performance. With support for the 6 GHz band, it offers increased bandwidth and reduced latency, making it ideal for high-density environments and bandwidth-intensive applications. The device's tri-band operation ensures optimal distribution of client devices across the 2.4 GHz, 5 GHz, and 6 GHz bands, enhancing overall network efficiency.

High-Capacity Connectivity
Designed to support over 500 concurrent clients, the U7 Pro Max is well-suited for large-scale deployments such as enterprise offices, educational institutions, and public venues. Its advanced hardware and software capabilities ensure stable and reliable connections for a multitude of devices, accommodating the growing demand for wireless connectivity in modern environments.

Advanced Antenna Design
The U7 Pro Max features a sophisticated antenna system with 8 spatial streams, including 2x2 MU-MIMO for 2.4 GHz and 6 GHz bands, and 4x4 MU-MIMO for the 5 GHz band. This configuration enhances signal strength and coverage, delivering high data rates and improved performance across all frequency bands. The device's antenna gains are 4 dBi for 2.4 GHz, 6 dBi for 5 GHz, and 5.9 dBi for 6 GHz, ensuring robust wireless coverage.

Real-Time Spectral Analysis
Equipped with a dedicated spectral scanning engine, the U7 Pro Max performs real-time spectral analysis to detect and mitigate interference. This feature allows for dynamic channel selection, ensuring optimal performance even in challenging RF environments. Note that real-time spectral analysis requires UniFi Network version 8.2.93 or later.

Future-Ready with Multi-Link Operation (MLO)
The U7 Pro Max is designed with future enhancements in mind, including support for Multi-Link Operation (MLO). MLO enables simultaneous connections across multiple frequency bands, improving throughput and reducing latency. This feature will be available through a forthcoming software update, ensuring the device remains at the forefront of wireless technology.
