- Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity
- Dual path mini-SAS design with a redundant power supply for enhanced system reliability
- QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption
- DataBolt bandwidth optimization combines two 6Gb/s connections into one 12Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure
- Manage the storage space and settings of the connected TL-R1620Sdc with Storage Manager on the host NAS
- The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling
- Failure-resistant with a dual-controller, dual-path design
Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks. - Highly efficient, reliable and scalable

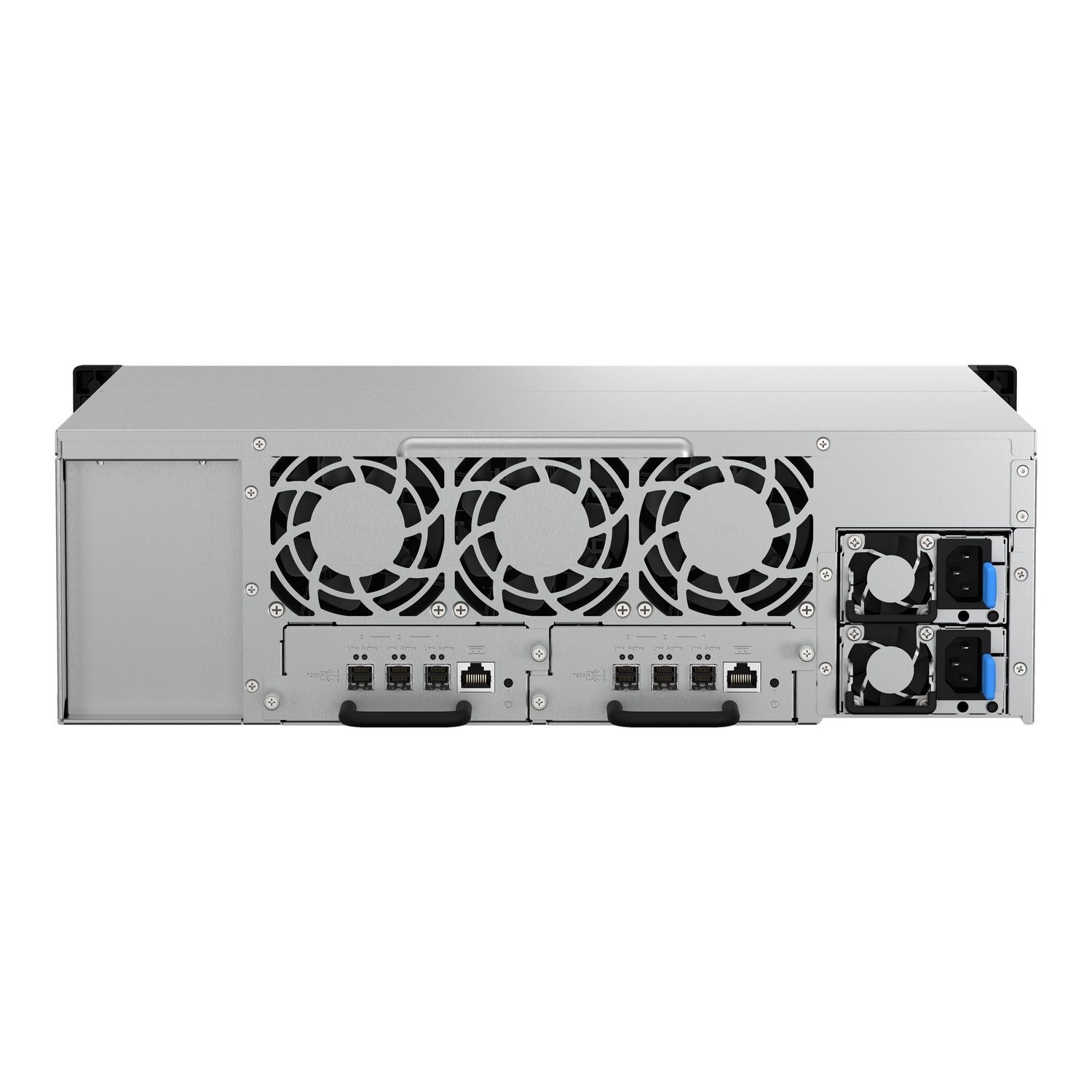

The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Both controllers have three Mini-SAS HD (SFF-8644) ports, and each SAS wide port combines four SAS 12Gb/s channels for up to 48Gbps bandwidth. - Supports SAS DataBolt technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sdc has an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sdc uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sdc at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure. - Leverage the 6Gbps SAS to SATA drive adapter to install 2.5-inch SATA SSDs
While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA2 adapter allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA2 into the dual-controller TL-R1620Sdc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.
