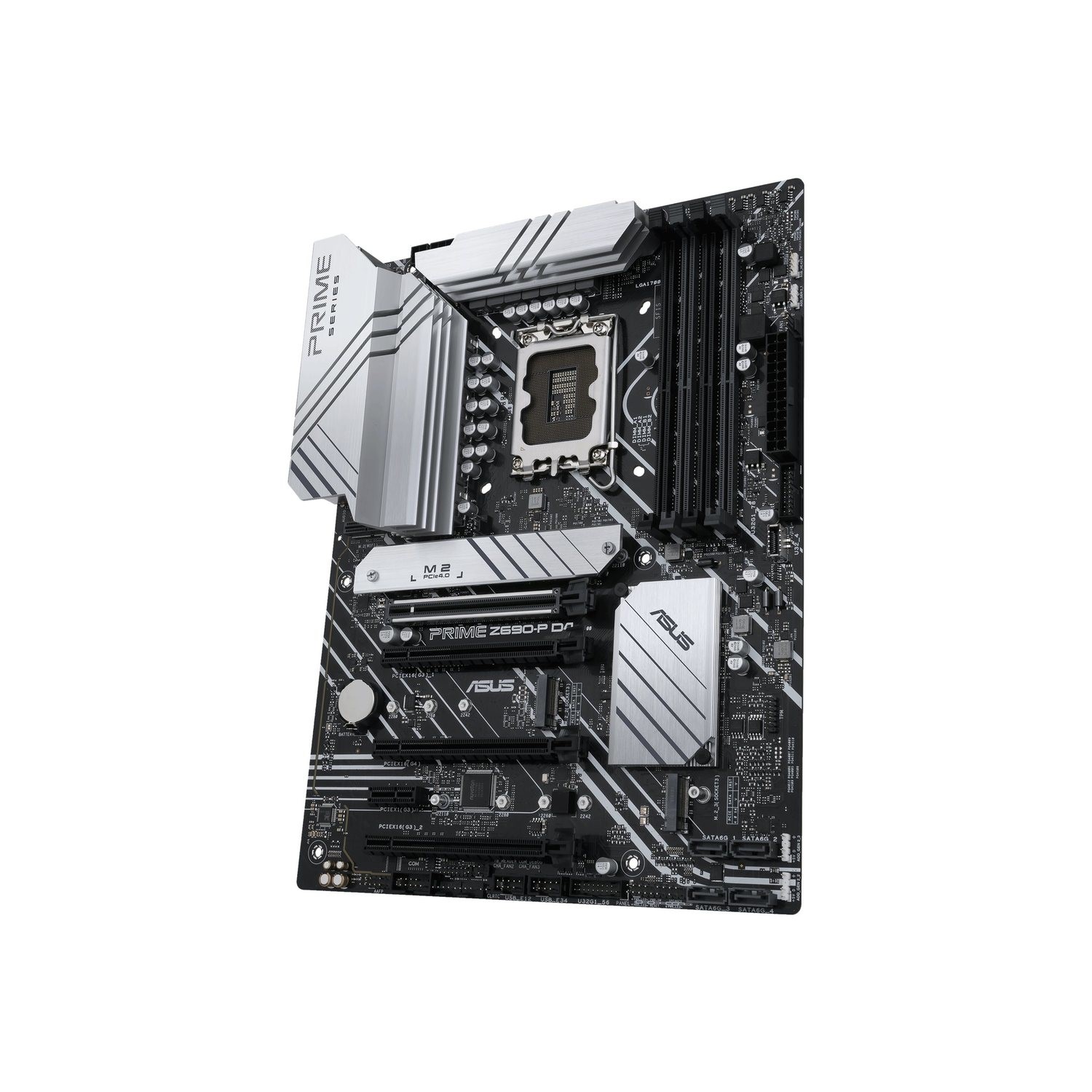

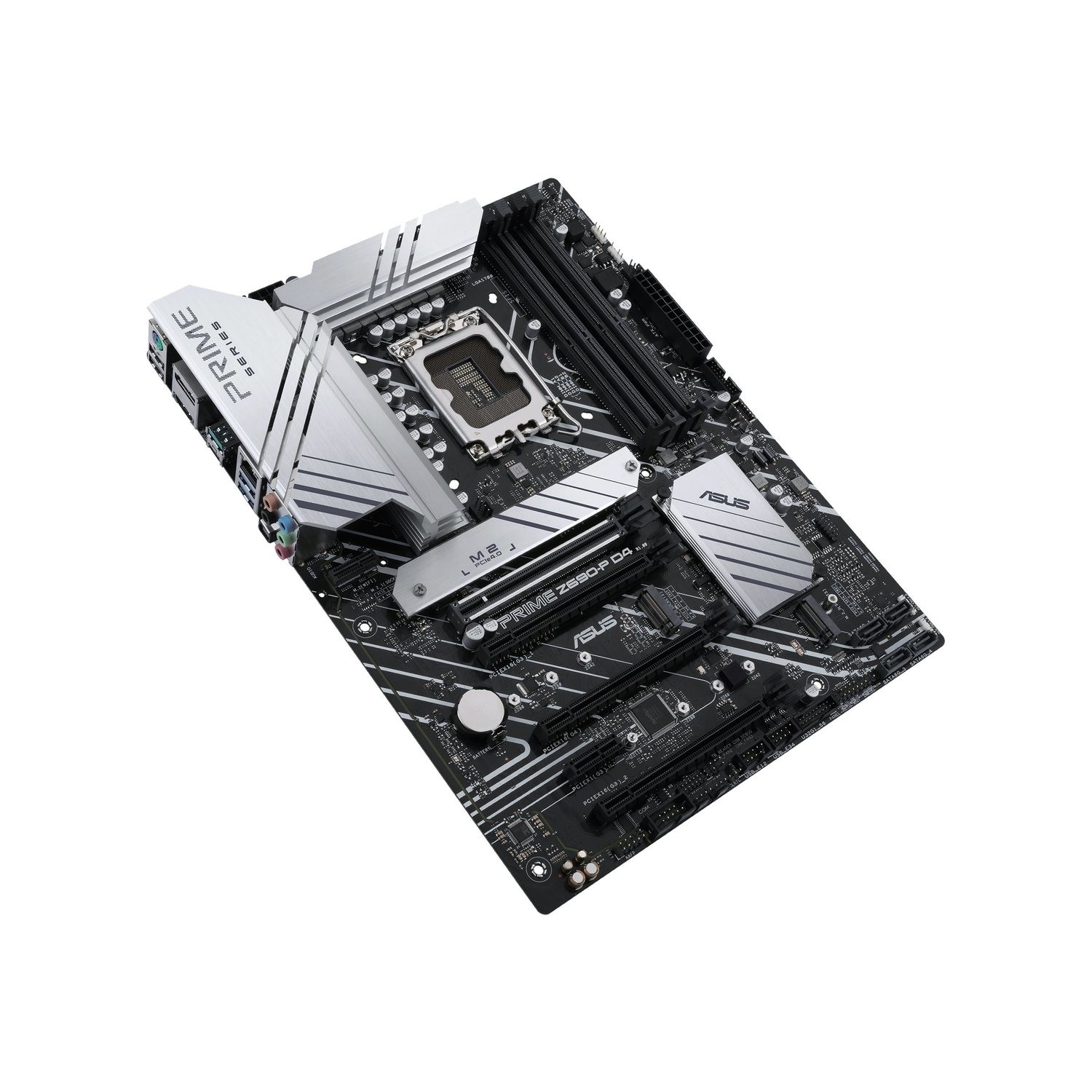

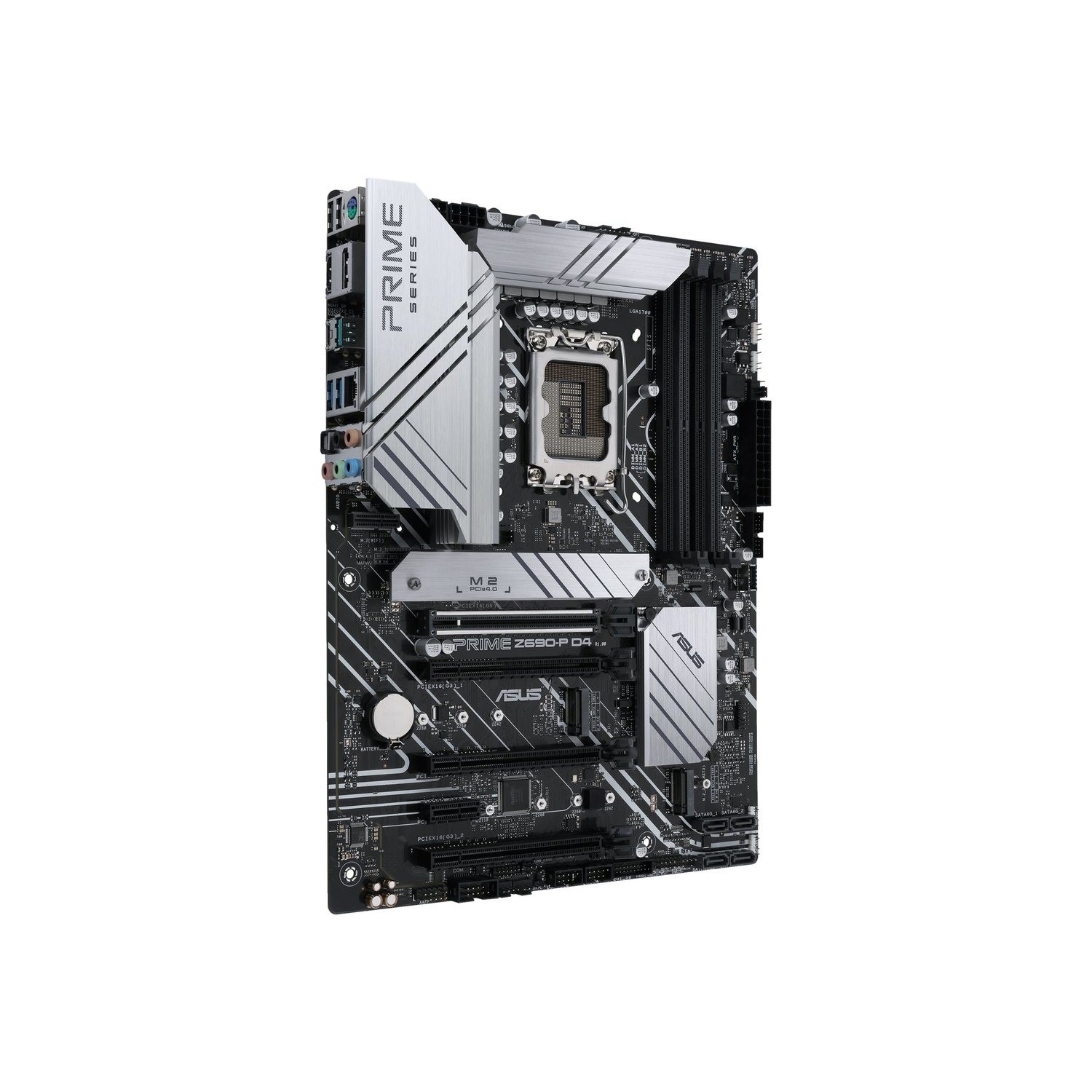

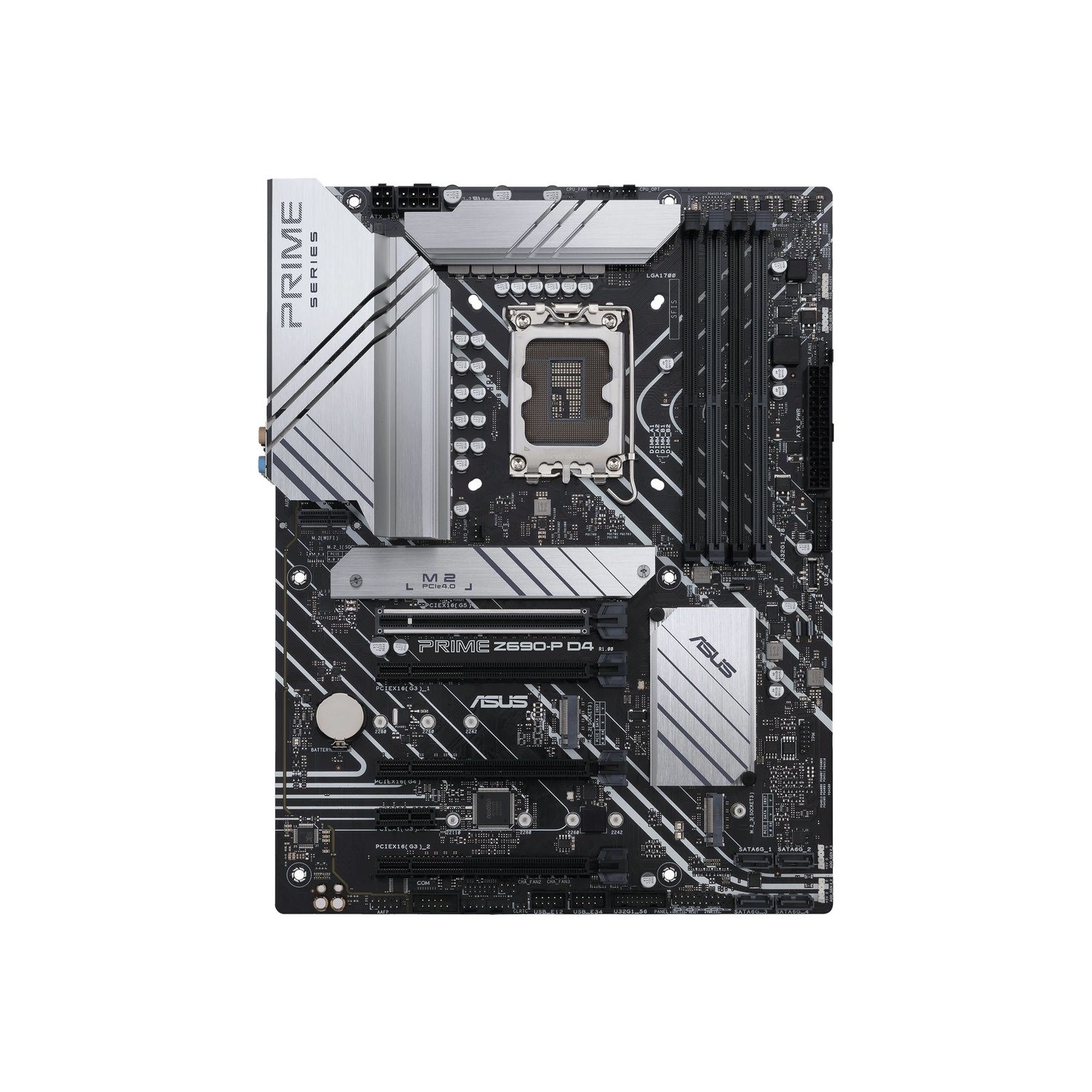

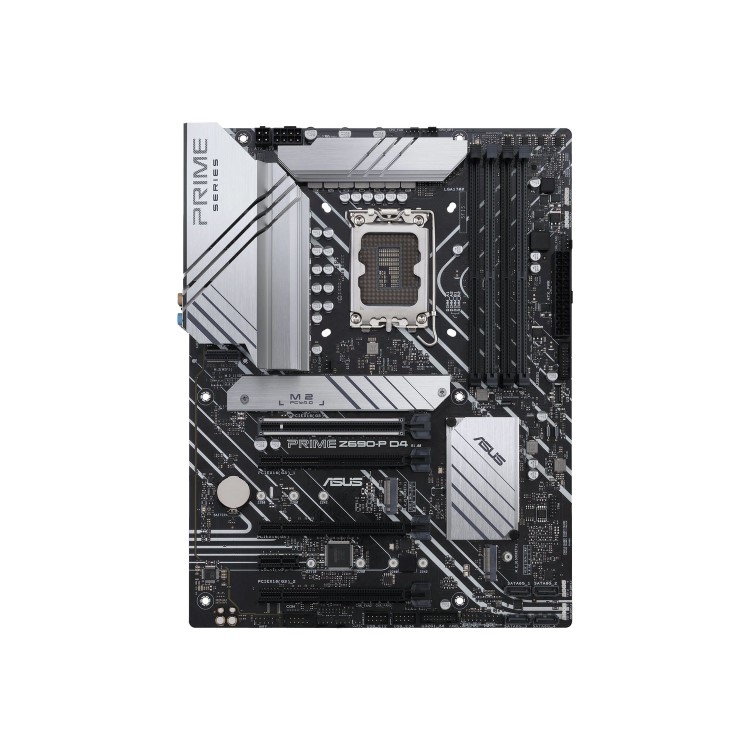

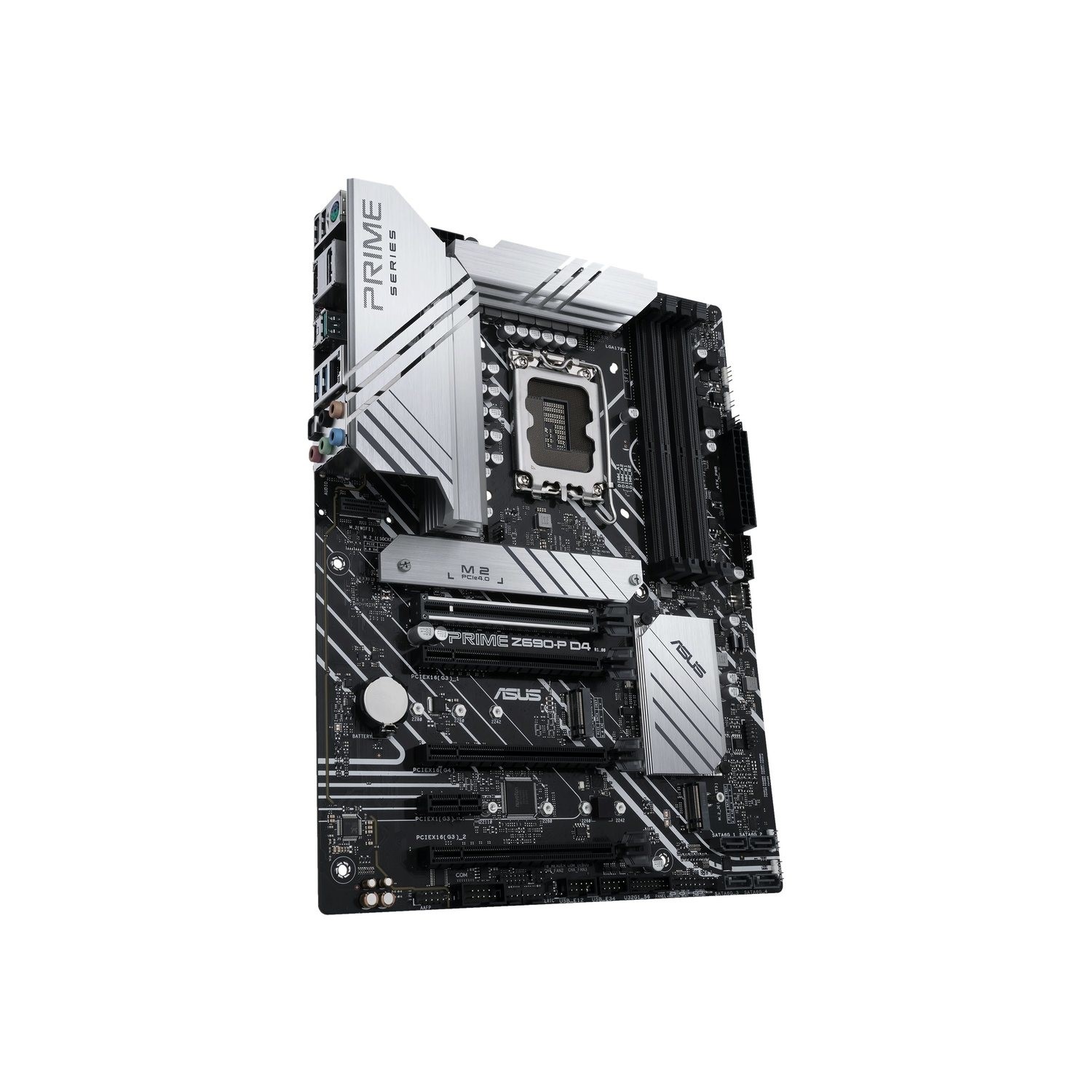

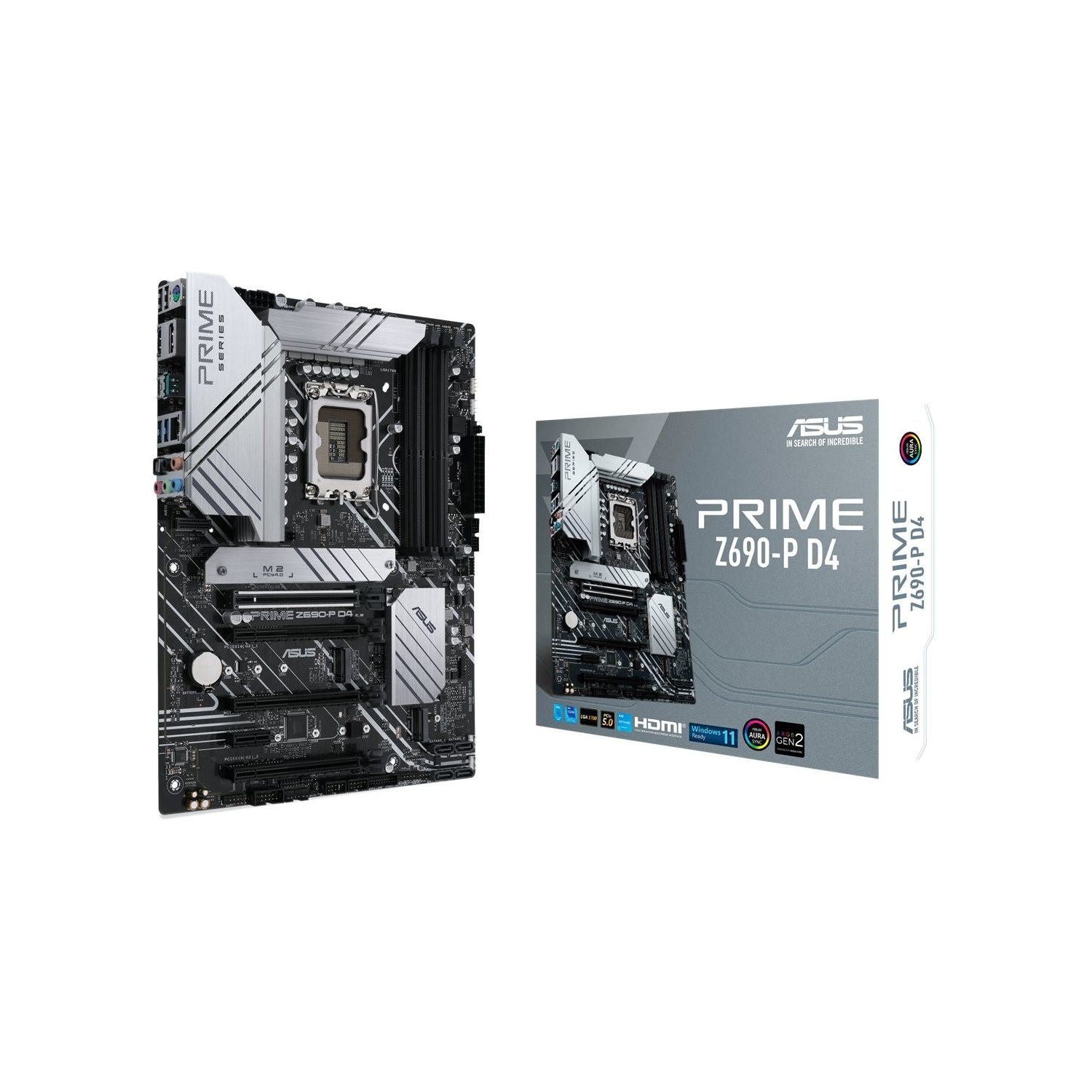

Asus Prime Z690-P D4 Intel Z690 LGA 1700 DDR4 ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of powerful processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Key Product Info:

• All-around energy efficiency
• Flexible air- and liquid-cooling controls
• Precise digital power control
• Advanced tuning for serious tweakers
• Quick and simple setup
• Intuitive graphical fan control
• Aura on/off mode (stealth)
• VRM heatsinks and high-quality thermal pads
• Cooler by design
• ProCool Connectors
• DDR5 Performance Enhancement
• Customization
• Audio shielding
• Separate layer for left and right tracks
• Premium audio capacitors
• World-class circuit-protecting power design
• Short-circuit damage prevention
• 3X corrosion-resistance for greater durability

Product Features

• Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

• All-around energy efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

• Flexible air- and liquid-cooling controls

ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

• Precise digital power control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

• UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

• Advanced tuning for serious tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

• Quick and simple setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.

• Intuitive graphical fan control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

• Aura on/off mode (stealth)

Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch.

• Cooling

Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

• M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

• VRM heatsinks and high-quality thermal pads

Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

• Cooler by design

Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

• ProCool Connectors

Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

• Customization

Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

• Audio

Combined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

• Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

• Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.

• Premium audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

• World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

• Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

• 3X corrosion-resistance for greater durability

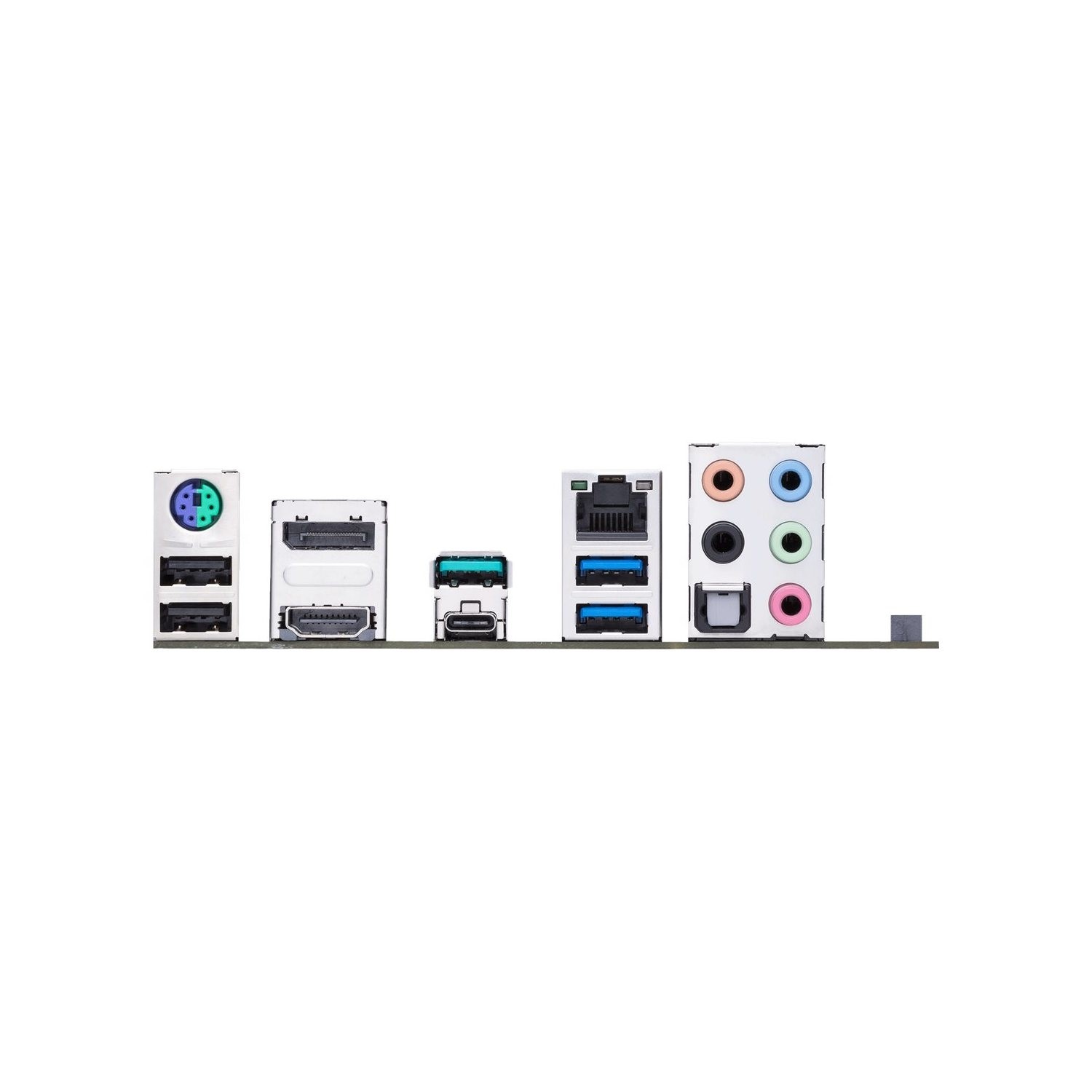

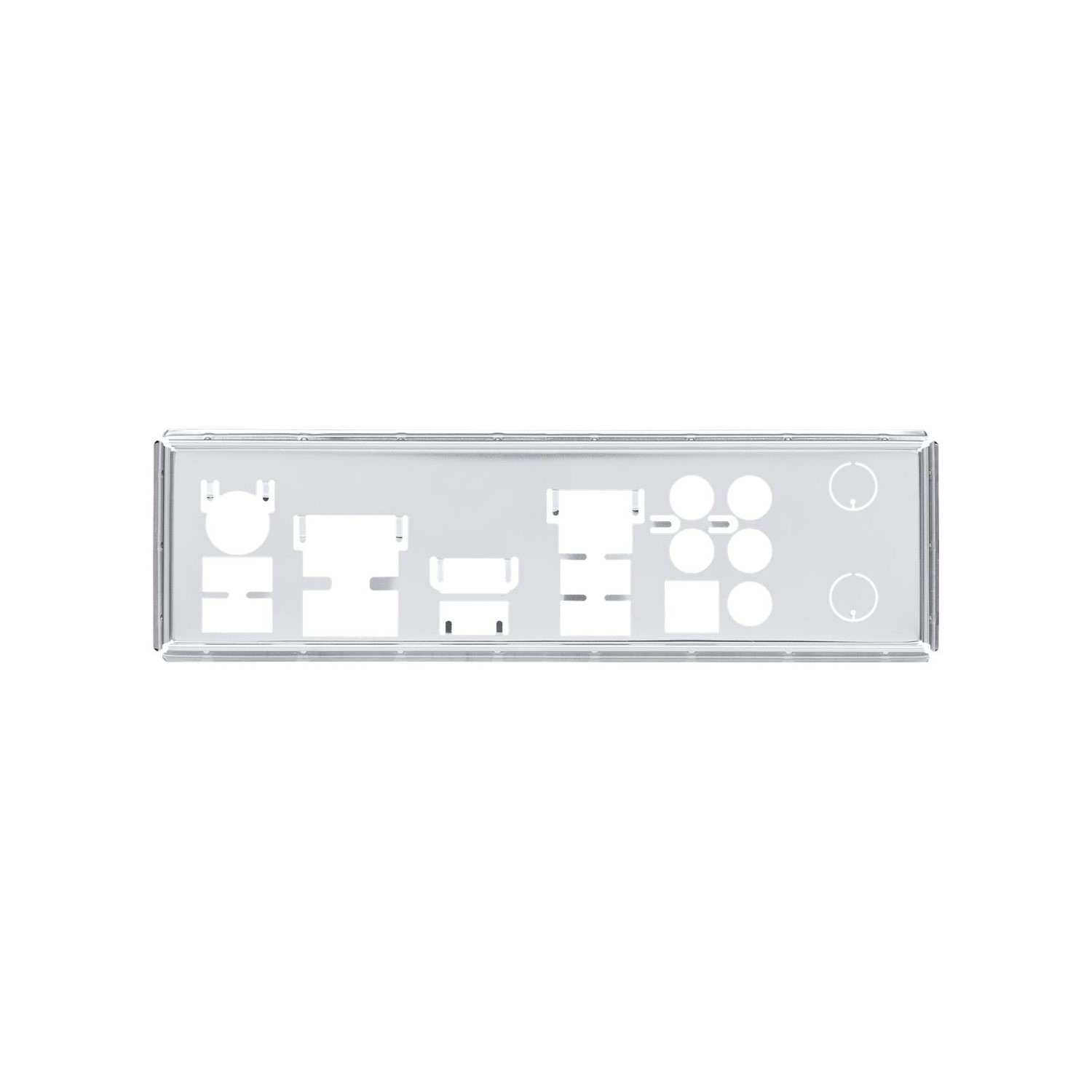

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
