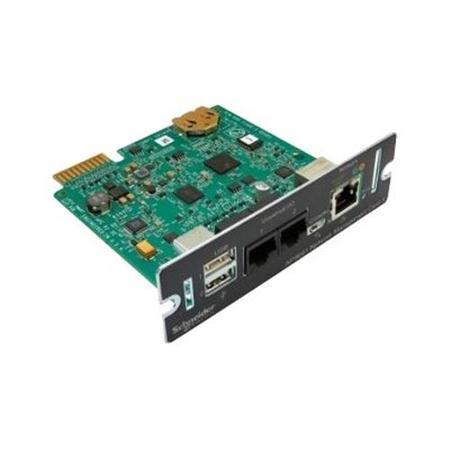

APC UPS NETWORK MANAGEMENT CARD 3

APC UPS Network Management Card 3 (NMC3) allows for secure remote monitoring and control of an individual APC UPS via a web browser, command line interface of SNMP. The configurable notification features keep you informed of problems as they occur. For protected servers, the included Powerchute Network Shutdown software provides graceful, unattended shutdown in the event of a power outage (certified Vmware Ready, Nutanix Ready, Nutanix-AHV Ready).
Remotely manage your UPS on your existing network with Datacenter, Building Management or Industrial Auotmation Systems using the UPS Network Management Card 3. Remote management can save time and money with the ability to reboot hung devices restoring functionality without deploying personnel.

Product Features

• BACnet/IP Support for Smart-UPS
  Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
• Command line interface
  Offers simultaneous remote management access through Telnet and SSH
• Compatible with Smart-UPS
  Compatible with Smart-UPS. /a
• Device Encryption
  Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
• Expandable Input and Output Ports
  Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
• Gigabit Ethernet Support
  Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
• IPv6 Support
  Capable of operating on a network using IPv6 protocol
• Micro-USB based Console Support
  For faster and easier Troubleshooting and Configuration.
• Modbus TCP Support
  Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
• Multiple language support
  Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
• Multiple user access
  Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
• Root of Trust Support
  Supports Secure Boot with Root of Trust for enhanced Security.
• Smart Battery Management Support
  Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
• Standard UPS RFC 1628 MIB Compatible
  Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
• UPS Firmware Update
  User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

What's in the box?

• Temperature sensor
• USB cable
• User manual
