Zyxel LTE3301-M209 - Wireless router - WWAN - 4-port switch - Wi-Fi

The LTE3301-M209 employs LTE to deliver incredible data rates. With bridge and router modes embedded, the LTE3301-M209 is adaptive to all kinds of devices/gateways for seamless integration, in a simple yet complete way to meet your needs.

Maximum freedom of mobility

The LTE3301-M209 supports single- and multi-mode functionality so you can stay connected even of there is only 3G or 2G services. The flexibility of LTE3301-M209 keeps you online around the world with the maximum freedom of mobility.

Embedded bridge/router mode for all devices/gateways

For network integration, Zyxel embeds both bridge and router modes into the LTE3301-M209. Users can take advantage of the built-in routing functions in all typical applications. With the two built-in modes, the LTE3301-M209 can be easily integrated with all kinds of devices/gateways.

High-speed Wi-Fi

The LTE3301-M209 comes with 802.11n Wi-Fi compatibility, so you can enjoy high-speed Wi-Fi. With the true wireless connection provided by the LTE3301-M209 of indoor router, there's no cabling needed for either LTE WAN or wireless LAN.

IP Networking

• Support IPv4/ and IPv6 dual stack
• DHCP dynamic and fixed IP address assignment on LAN side
• VPN pass through firewall
• NAT/NAPT
• Port forwarding DMZ
• DNS/DDNS
• Support NAT router mode
• Support bridge mode (IP pass-through)

WiFi Security

• WEP: 64/128-bit
• WPA/WPA2
• Support WPA2 primarily, and automatic fallback to WPA for clients that do not support WPA2
• WPA/WPA2-PSK
• MAC address filter with 32 addresses supported

Management

• APN management
• SIM PIN management
• SMS management
• Secure remote management via WebGUI/SSH
• Over-the-Air (PTA) firmware upgrade: TR-069/WebGUI support
• IPv4/and IPv6 dual stack

WiFi Air Interface

• IEEE 802.11 b/g/n 2.4 GHz, data rates up to 300 Mbps
• WiFi enabled device#: up to 32
• WiFi antenna: 2 internal antennas up to 3 dBi

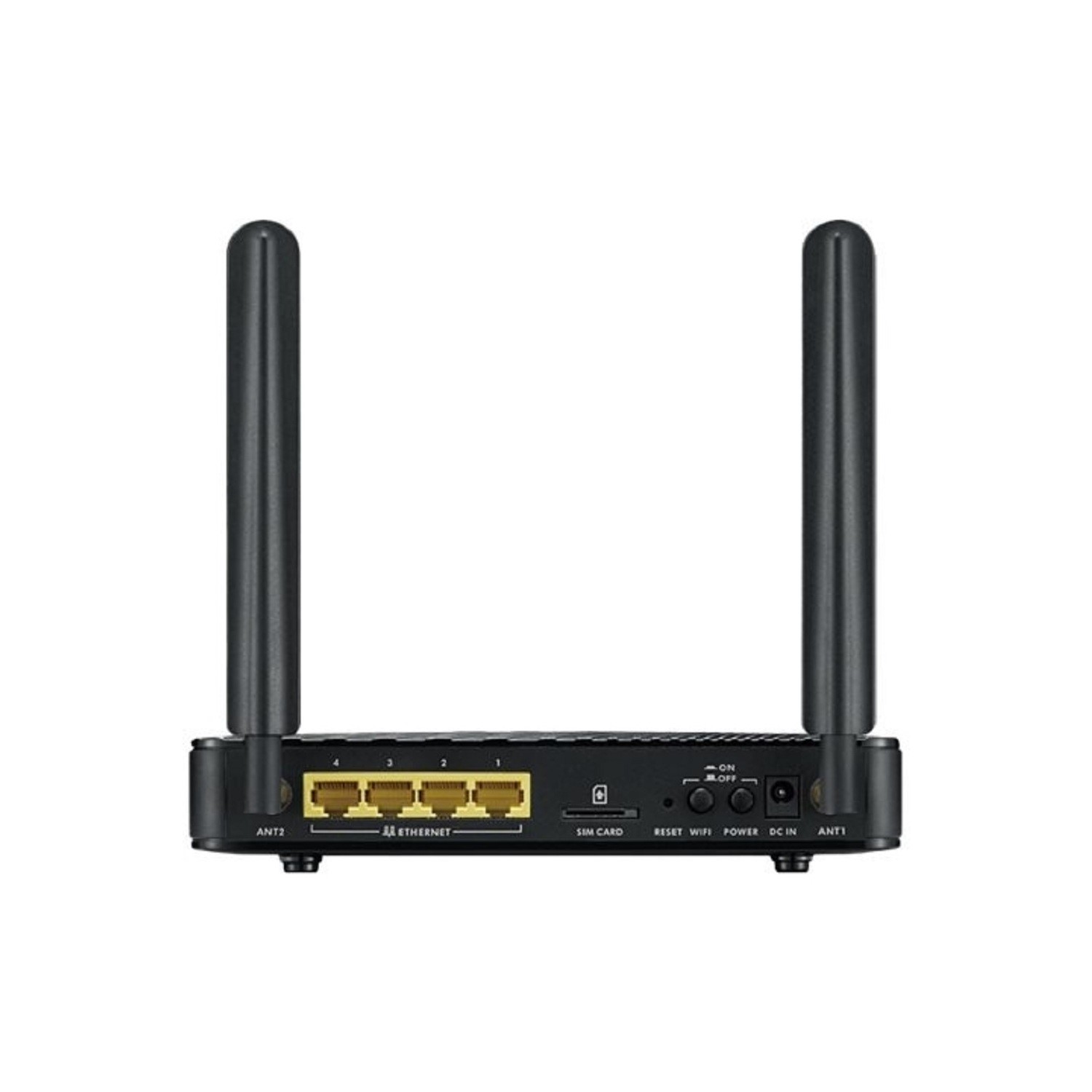

Hardware Interface

• Four (4) 10/100 Mbps Ethernet RJ45 LAN ports
• One (1) 2FF mini SIM card socket
• One (1) reset to default button
• One (1) power on/off button
• One (1) WiFi on/off button
• One (1) DC power jack
• One (1) WPS button
• Two (2) external LTE antenna (up to 3 dBi)

LED Indicators

• Power status
• Internet status
• LTE signal strength
• WiFi status
• LAN status
