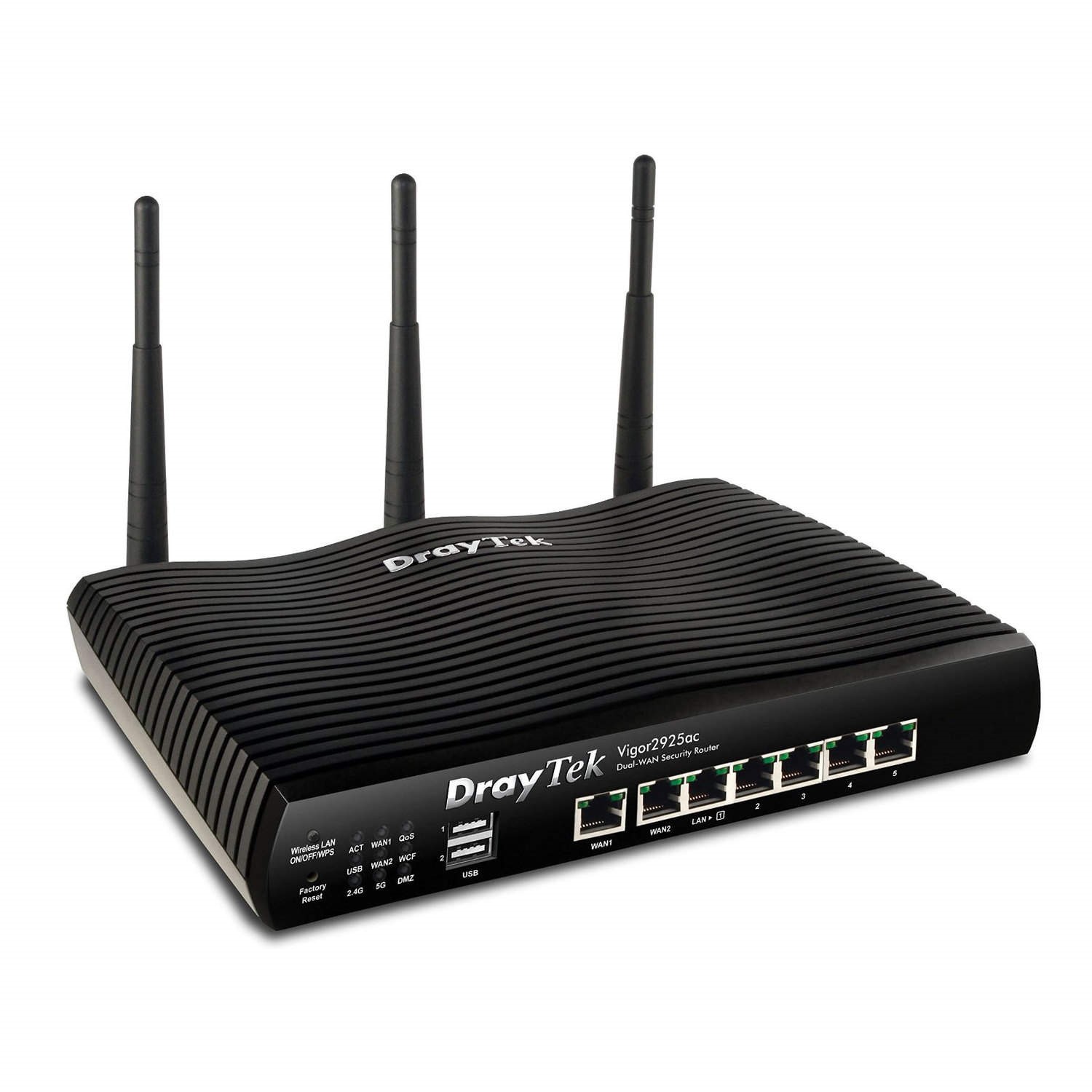

Draytek Vigor 2925ac Dual-WAN Router

Vigor 2925 Series Ethernet Router Firewall & Load-Balancer

The Vigor 2925 series is our dual-Ethernet WAN firewall for load-balancing or failover. It's also a fully featured firewall, VPN concentrator and content filtering device. This latest router series includes support for professional features such as VLAN tagging, Gigabit Ethernet built-in wireless LAN (Vigor 2925n or Vigor 2925ac).

Vigor 2925 front panel sockets

A 5-port Gigabit Ethernet switch on the LAN side provides high speed connectivity for your server, other local PCs or for uplink to a larger Ethernet switch. Comprehensive security features include content filtering, web application controls and an object based firewall management system.

Robust & Comprehensive Firewall

Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems. The latest ('Version 3') DrayTek object-based firewall allows even more setup flexibility than ever, enabling you to create combinations of users, rules and restrictions to suit multi-departmental organisations. The Vigor 2925 also allows selective direction firewall rules of LAN to WAN, WAN to LAN or LAN to VPN. In addition, QoS (Quality of Service Assurance) can now be selectively applied to specific users.

Web Content Filtering

The content control features of the Vigor 2925 allows you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or univeral. Using DrayTek's GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription to the Globalview service, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware).

WAN Load Balancing & Backup

The Vigor 2925 features WAN connectivity via its two WAN Ethernet ports and two USB ports for connection of a compatible 3G or 4G modem. The ethernet ports can connect to DSL modems (e.g. Vigor 120), a cable modem or any other Ethernet-based Internet feed. The multiple WAN interfaces can be used either for WAN-Backup or load balancing. Load-balancing or failover supports IPv4 only currently (not IPv6).

WAN-Backup provides contingency (redunancy) in case of your primary ADSL line or ISP suffering temporary outage). Internet Traffic will be temporarily routed via the secondary Internet access. When normal services is restored to your primary ADSL line, all traffic is switched back to that.

The USB port provides Internet connectivity (main, backup or load balanced) by connecting to a compatible USB modem (or cellphone) for access to the high speed 3G cellular networks from UK providers such as Vodafone, O2, 3 and EE. If you don't have ADSL at all, the USB/3G access method can be used as your primary/only Internet connection, ideal for temporary locations, mobile applications or where broadband access is not available. In addition you can instead connect a compatible analogue modem to use analogue dial-up connections for failover in the event of your broadband failing.

User Management/Authentication

The Vigor 2925 has built-in user management which allows you to provide conditional internet access to different users based on their own unique login (stored in the router, or on an external Radius server). For full details of this feature, click here.

802.1q Tagged, Wireless & Port Based VLAN

The Vigor 2925 features a hugely flexible VLAN system. Each of the six Gigabit LAN ports can be isolated from each other, for example to feed different companies or departments but keeping their local traffic completely separated.
