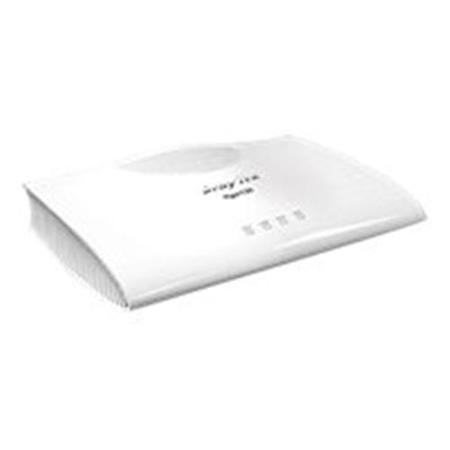

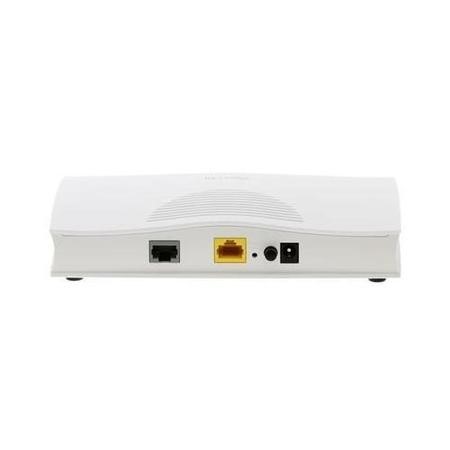

Draytek Vigor 130 ADSL2+/VDSL Modem

Key Features

• Modem
• 1x Gigabit Ethernet port
• ADSL2+ & VDSL2
• Zero-touch configuration
• Ideal for Firewalls/routers with multiple WAN ports

Ideal Partner device for DrayTek dual-WAN products or any other vendor's Ethernet WAN firewall

The DrayTek Vigor 130 is an ADSL and VDSL modem with an Ethernet connection; it is not a router but a true ADSL/VDSL Ethernet Modem (bridge). The Vigor 130 provides compatibility with all current UK VDSL/ADSL technologies; it has been extensively tested and tuned to provide a robust and reliable DSL connection.

By providing a PPPoE bridge, the connected device (firewall, router or PC) can log into the Internet (your ISP) directly and have full control over the Internet connection - that makes the Vigor 130 a unique product. You can connect any device to the Vigor 130 which has a PPPoE client facility, which includes PCs, most Ethernet-WAN routers and the Apple Airport/Time Capsule™ products.

Other Ethernet 'modems' may use workarounds to get a public IP address 'through' to your secondary device/client, requiring non-standard operation and complicated dual-stage setup (modem logs in, router routes) but the Vigor 130 provides the secondary device with a real routed IP connection and the ability to fully manage the connection, making setup easy. In most cases, the Vigor 130 needs no setup or configuration - just plug it in and set up your PC or router. All login/ISP details are entered on the connected client device, not the Vigor 130. The actual connection to your ISP is still PPPoA or PPPoE (depending on your ISP and line type).
