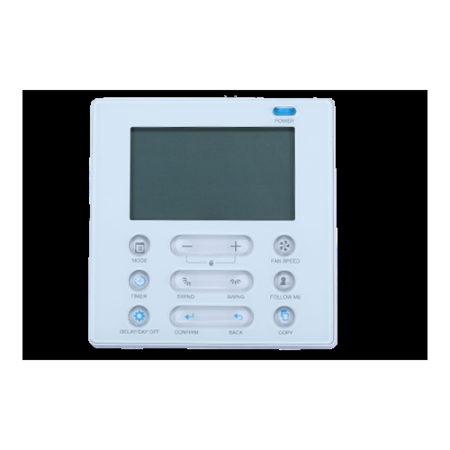

Wired Controller for ElectriQ Cassette Air Conditioners

Control your electriQ Cassette Air Conditioner with ease using the wired controller that fits neatly on your wall. The electriQ Cassette Air Conditioners do more than just cool, with modes for cooling, heating, drying, fan and an auto mode you have full control of your environment using the wired controller.

The controller allows you to create a weekly schedule, setting times for the air conditioner to turn on and off each day of the week. You will also be able to choose between 4 different fan speeds and also comes with a child lock option.

It is compatible with all electriQ Cassette Air Conditioners - eiQ-CRFC12K, eiQ-CRFC18K, eiQ-SSRFC24K, eiQ-SSRFC36K, eiQ-SSRFC48K, eiQ-SSRFC60K.

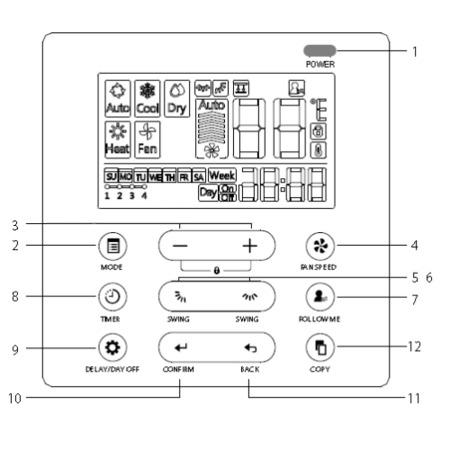

Features:

• Operating modes: cool, heat, dry, fan and auto mode.
• Weekly timer schedule to set a schedule for each day of the week
• 4 Fan Speed settings
• Delay shutdown function, auto restart and backlight function
• Indoor temperature setting range: 17°C ~30°C.
• Allows you to switch between Centigrade and Fahrenheit
• Child lock function

Technical Specification:

• Modeal: eiQ-WiredCasCtrl
• Power Supply Voltage: 12V DC
• Ambient Temperature Range: -5°C~+43°C(23°F~110°F)
• Ambient Humidity Range: RH40%~RH90%

Download User Manual
