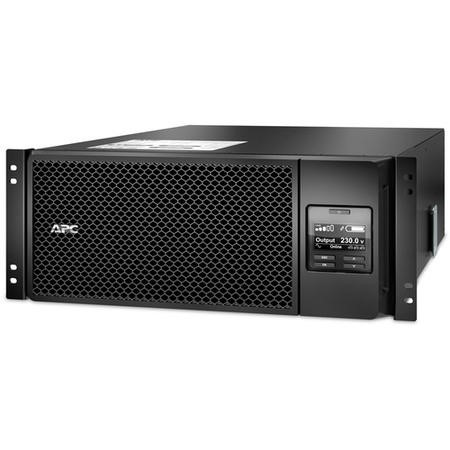

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U.
|
Battery |
|
| Battery recharge time | 1.5 h |
| Battery Technology | Sealed Lead Acid (VRLA) |
| Replacement battery cartridge | APCRBC140 |
| Typical backup time at full load | 2.5 min |
| Typical backup time at half load | 8.7 min |
|
Design |
|
| Colour of product | Black |
| Form Factor | Rackmount |
| Rack mounting | 4u |
|
Performance |
|
| UPS topology | Double-conversion (Online) |
|
Ports & interfaces |
|
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 13 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
|
Power |
|
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 160 V |
| Output frequency regulation | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 6000 W |
| Output power capacity | 6000 VA |
| Power supply input frequency | 40 - 70 Hz |
| Surge energy rating | 480 J |
|
Certificates |
|
| Certification | CE, CE Mark, ENERGY STAR (EU) |
| Energy Star certified | |
| RoHS compliance | |
|
Operational conditions |
|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
|
Weight & dimensions |
|
| Depth | 719 mm |
| Height | 174 mm |
| Package depth | 960 mm |
| Package height | 370 mm |
| Package weight | 67000 g |
| Package width | 610 mm |
| Weight | 60000 g |
| Width | 432 mm |
