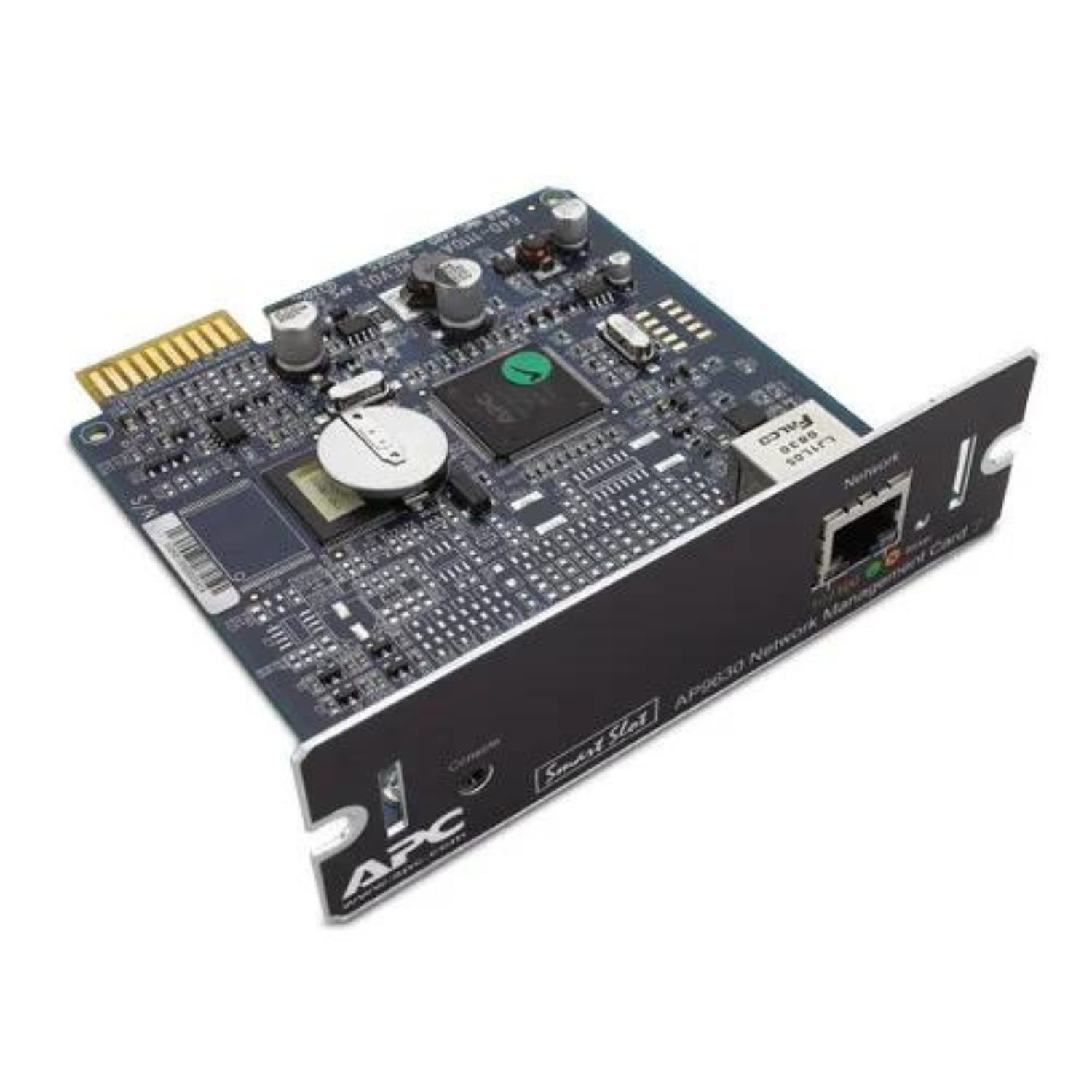

APC UPS Network Management Card

SKU: AP9630 Quickfind Code: 640632
Was: £249.98     You save: £20.84
inc. VAT :£274.97
Why buy me
  • Product line: APC

Need Help? Been quoted elsewhere? Take advantage of our Price Promise. Call our Server Team on 0871 984 4418 or...

Request a callback »


Remote monitoring and control of an individual UPS by connecting it directly to the network.

Key Features

• Provides UPS control and self-test scheduling features.

• Provides data and event logs.

• Enables you to set up notifications through event logging, e-mail, Syslog and SNMP traps.

• Provides support for PowerChute® Network Shutdown.

• Supports using a Dynamic Host Configuration Protocol (DHCP) or BOOTstrap Protocol (BOOTP) server to provide the network (TCP/IP) values of the NMC.

• Supports using the Schneider Electric Remote Monitoring Service (RMS).

• Provides the ability to export a user configuration (.ini) file from a configured card to one or more unconfigured cards without converting the file to a binary file.

• Provides a selection of security protocols for authentication and encryption.

• Communicates with StruxureWare Data Center Expert or StruxureWare Operations.

• Supports Modbus TCP/IP

Data transfer rate (max) 100 Mbit/s
Colour of product Black
Chipset -
Ethernet LAN
Networking standards IEEE 802.3,IEEE 802.3u
Ports & interfaces
Connectivity Technology Wired
Ethernet LAN (RJ-45) ports 1
Host interface MiniSlot
Interface Ethernet
Supported network protocols HTTP, HTTPS, IPv4, IPv6, NTP, SMTP, SNMP v1, SNMP v2c, SNMP v3, SSH V1, SSH V2, SSL, TCP/IP, Telnet
Certification AS/NZS 3548 (C-Tick) A, EN 55022 A, EN 55024, FCC 15 A, GOST, ICES-003, VCCI A
RoHS compliance
Operational conditions
Non-operating altitude 0 - 15000
Operating altitude 0 - 3000
Operating relative humidity (H-H) 0 - 95
Operating temperature (T-T) 0 - 45
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -5 - 45
Packaging content
Weight & dimensions
Depth 114 mm
Height 38 mm
Package depth 159 mm
Package height 51 mm
Package weight 340 g
Package width 235 mm
Weight 80 g
Width 121 mm
