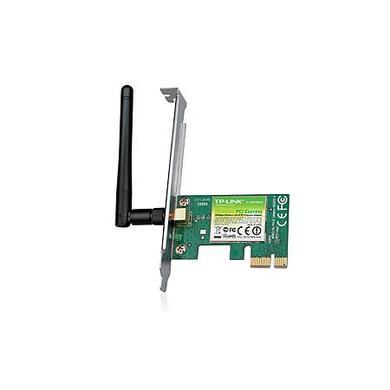

TP-Link Wireless N150 PCI Express Adapter

150Mbps Wireless PCI Express Adapter with low profile bracket - TL-WN781ND

TP-LINK TL-WN781ND is designed to provide a complete end-to-end wireless performance from the server or server backbone to the switch infrastructure and down through to the desktop with the PCI Express connector. TL-WN781ND Wireless N PCI Express(x1) Adapter provides a wider compatibility, fitting with any standard PCI Express slot, x1, x2, x8, or x16. Compared with standard PCI network cards, it offers increased bandwidth, reliability and more functionality, allowing you to enjoy a fast and advanced connection, such as downloading, making internet call and video streaming.

Features

• Up to 150Mbps makes it ideal for video streaming, online gaming and Internet calling
• Provides PCI Express connector having a wider compatibility with any standard PCI Express slot, x1, x2, x8, or x16
• Supports QSS function, complying with WPS for worry free wireless security
• Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
• Detachable antennas allow for better alignment and stronger antenna upgrades
• Bundled utility provides quick & hassle free installation
• Seamlessly compatible with 802.11n/b/g products
• Supports ad-hoc and infrastructure mode
• Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit

HARDWARE FEATURES

• Interface: PCI Express
• Dimensions: ( W x D x H ): 4.8 x 3.1 x 0.8 in.(120.8 x 78.5 x 21.5 mm)
• Antenna Type: Detachable Omni Directional (RP-SMA)
• Antenna Gain: 2dBi

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.400-2.4835GHz
• Signal Rate:
  11n: Up to 150Mbps(dynamic)
  11g: Up to 54Mbps(dynamic)
  11b: Up to 11Mbps(dynamic)
• EIRP: <20dBm(EIRP)
• Reception Sensitivity:
  130M: -68dBm@10% PER
  108M: -68dBm@10% PER
  54M: -68dBm@10% PER
  11M: -85dBm@8% PER
  6M: -88dBm@10% PER
  1M: -90dBm@8% PER
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS SPECIFICATIONS

• Certification: CE, FCC, RoHS
• Package Contents:
  Wireless adapter
  Detachable Omni directional antenna
  Resource CD
  Quick Installation Guide
• System Requirements:
  Windows® 7 (32/64bits)
  Windows® Vista (32/64bits)
  Windows® XP (32/64bits)
  Windows® 2000
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC ~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
