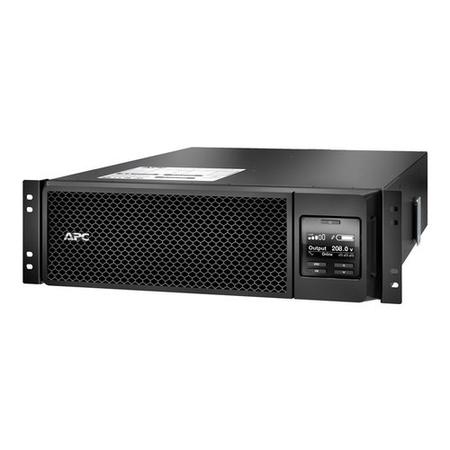

APC Smart-UPS 5000VA Rack

SKU: SRT5KRMXLI-6W Quickfind Code: 1063077
SAVE 13%
APC Smart-UPS 5000VA Rack
You save: £638.33
£4223.31
inc. VAT : £5067.97

Why buy me

  • Battery: 5year(s)
  • Product line: APC Smart-UPS SRT
  • AC 230V
  • Power Capacity 5000VA
click

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks.



Battery
Battery recharge time 1.5 h
Battery Technology Sealed Lead Acid (VRLA)
Typical backup time at full load 4 min
Typical backup time at half load 11.8 min

Design
Colour of product Black
Form Factor Rackmount
International Protection (IP) code IP20
Rack mounting 3U

Performance
Audible alarm(s)
Noise level 55 dB
UPS topology Double-conversion (Online)
Waveform Sine

Ports & interfaces
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 10 AC outlet(s)
Serial ports quantity 1
USB 2.0 ports quantity 1

Power
Crest factor 3:1
Emergency Power Off (EPO)
Input operation voltage (max) 275 V
Input operation voltage (min) 160 V
Output frequency regulation 50/60 Hz
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Output power 4500 W
Output power capacity 5000 VA
Output voltage THD 3 %
Power supply input frequency 40 - 70 Hz
Surge energy rating 480 J

Certificates
Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
RoHS compliance

Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 45 °C

Weight & dimensions
Depth 719 mm
Height 130 mm
Package depth 960 mm
Package height 330 mm
Package weight 66860 g
Package width 610 mm
Weight 54430 g
Width 432 mm
Download User Manual
